From the beginning, I try to achieve a GitOps approach for application deployment and cluster configuration for every customer when starting the Kubernetes journey. I am on the infrastructure side, focused on environment configuration, including cluster configuration, operator installation, etc.
In this article, I will share how I deal with cluster configuration when certain Kubernetes objects depend on each other and how to use Kubernetes and Argo CD features to resolve these dependencies.
This article assumes you have installed and configured the openshift-gitops Operator, which provides Argo CD.
The idea
The basic concept is that everything should be seen as a code and be deployable in a repeatable way. Using GitOps, all code is stored in Git, and from there, a GitOps agent validates and synchronizes changes to one or more clusters.
With OpenShift, Red Hat supports Argo CD using the openshift-gitops Operator. This approach provides everything needed to deploy an Argo CD instance. The only thing you need to take care of is a Git repository, whether it is GitHub, GitLab, Bitbucket, etc.
The problem
Sometimes Kubernetes objects depend on each other. This is especially true when you want to install and configure Operators, where the configuration, based on a Customer Resource Definition (CRD), can only happen after the Operator has been installed and is ready.
Why is that? When you want to deploy an Operator, you will store a "Subscription object" in Git. Argo CD will take this object and apply it to the cluster. However, creating the Subscription object is just the first step for an Operator. Many other steps are required before the Operator is ready. Unfortunately, Argo CD cannot easily verify if the installation is successful. All it sees is that the Subscription object has been created. It then immediately tries to deploy the CRD. The CRD is not yet available on the system because the Operator is still installing it.
Even Argo CD features like Syncwaves would not cause Argo CD to wait until the Operator is successfully installed because, for Argo CD, "success" is the existence of the Subscription object. Custom Health checks inside Argo CD also do not help.
The Argo CD synchronization process will subsequently fail. You could attempt to automatically "Retry" the sync or use multiple Argo CD applications that you execute one after the other. However, I was not fully happy with that and tried a different approach.
My solution
There are different options to solve the problem. I use a Kubernetes Job that runs some commands to verify the Operator status. Suppose I want to deploy and configure the Compliance Operator. The steps would be:
- Install the Operator.
- Wait until the Operator is ready.
- Configure Operator-specific CRDs (for example ScanSettingBinding).
Waiting until the Operator is ready is the tricky part for Argo CD. What I have done is the following:
1. Install the Operator. This is the first step and occurs during Sync Wave 0.
2. Create a Kubernetes Job that verifies the Operator status. This Job also requires a ServiceAccount and a role with a binding. They are configured during Sync Wave 1.
Moreover, I use a Hook (another Argo CD feature) with the deletion policy HookSucceeded. This verifies that the Job, ServiceAccount, Role, and RoleBinding are removed after verifying the status. The verification is successful when the Operator status says Succeeded. All the Job does is execute some oc commands, such as:
oc get clusterserviceversion openshift-gitops-operator.v1.8.0 -n openshift-gitops -o jsonpath={.status.phase}
Succeeded
3. Finally, during the next Sync Wave (2+), the CRD can be deployed. In this case, I deploy the object ScanSettingBinding. Everything is correctly synchronized in Argo CD, and the Operator and its configuration are in place.
This approach helps me to install and configure any Operator in one Argo CD Application. While it is not 100% the GitOps way, the Job that is executed is repeatable.
You can find more information about Sync Waves and Hooks in the official Argo CD documentation: Sync Phases and Waves.
View the process in action
Prerequisites:
- OpenShift cluster 4.x.
- openshift-gitops is installed and ready to be used.
- Access to GitHub (or your own repository).
As an example repository for Helm charts, I am using https://charts.stderr.at/ and from there, the following charts:
- compliance-operator-full-stack
- helper-operator (sub chart): Responsible for installing the Operators.
- helper-status-checker (sub chart): Responsible for checking the Operator status (and maybe approve the InstallPlan if required).
Argo CD Application
I have the following Application configured in Argo CD:
apiVersion: argoproj.io/v1alpha1
kind: Application
metadata:
name: in-cluster-install-compliance-scans
namespace: openshift-gitops
spec:
destination:
namespace: default
server: 'https://kubernetes.default.svc' <1>
info:
- name: Description
value: Deploy and configure the Compliance Scan Operator
project: in-cluster
source:
path: charts/compliance-operator-full-stack <2>
repoURL: 'https://github.com/tjungbauer/helm-charts'
targetRevision: main
- Installing on the local cluster where Argo CD is installed.
- Git configuration, including path and revision.
The Application would synchronize the objects:
- Subscription
- OperatorGroup
- Namespace (openshift-compliance)
- ScanSettingBinding (CRD)
Where are the objects needed for the Job? They will not show up here since they are only available during the Sync-Hook. In fact, they will only appear when they are alive and will disappear again after the operator status is verified.
Helm Chart configuration
The Helm Chart gets its configuration from a values file. You can verify the whole file on GitHub.
The key point is that some variables are handed over to the appropriate Sub Charts.
Operator configuration
This part is handed over to the Chart helper-operator.
helper-operator:
operators:
compliance-operator:
enabled: true
syncwave: '0'
namespace:
name: openshift-compliance
create: true
subscription:
channel: release-0.1
approval: Automatic
operatorName: compliance-operator
source: redhat-operators
sourceNamespace: openshift-marketplace
operatorgroup:
create: true
notownnamespace: true
It is executed during Sync Wave 0 and defines whether a Namespace (openshift-compliance) shall be created (true) and the specification of the Operator, which you need to know upfront:
- channel: Defines which channel will be used. Some operators offer different channels.
- approval: Either Automatic or Manual. It defines whether the Operator will be updated automatically or require approval.
- operatorName: The actual Operator name (compliance-operator).
- source: Where does this Operator come from (redhat-operator).
- sourceNamespace: In this case, openshift-marketplace.
You can fetch these values by looking at the Packagemanifest:
oc get packagemanifest compliance-operator -o yaml
Status checker configuration
This part is handed over to the Helm sub chart helper-status-checker. The main values here are the operatorName and the namespace where the Operator is installed.
What is not visible here is the Sync Wave, which is set to 1 by default in the Helm Chart. You can configure it in this section if you need to overwrite it.
helper-status-checker:
enabled: true <1>
approver: false <2>
# use the value of the currentCSV (packagemanifest) but WITHOUT the version !!
operatorName: compliance-operator <3>
# where operator is installed
namespace:
name: openshift-compliance <4>
serviceAccount: <5>
create: true
name: "sa-compliance"
- Is the status checker enabled or not?
- Enable/disable automatic InstallPlan approver.
- The name of the operator as it is reported by the value currentCSV inside the packageManifest.
- The namespace where the Operator has been installed.
- The name of the ServiceAccount that is created temporarily.
The operatorName is sometimes different than the Operator name required for the helper-operator chart. Here it seems the value of the currentCSV must be used but without the version number. The Job will look up the version itself.
Operator CRD configuration
The final section of the values file manages the configuration for the Operator itself. This section does not use a sub chart. Instead, the variables are used in the main chart. In this example, the ScanSettingBinding will be configured during Sync Wave 3, which is all that's needed for basic functionality.
compliance:
scansettingbinding:
enabled: true
syncwave: '3' <1>
profiles: <2>
- name: ocp4-cis-node
- name: ocp4-cis
scansetting: default
- Define the Sync Wave. This value must be higher than the Sync Wave of the helper-status-checker.
- ScanSettingBinding configuration. Two profiles are used in this example.
Here is a full example of the values-file: https://github.com/tjungbauer/helm-charts/blob/main/charts/compliance-operator-full-stack/values.yaml
Synchronizing Argo CD
1. Basic Application in Argo CD before synchronization:

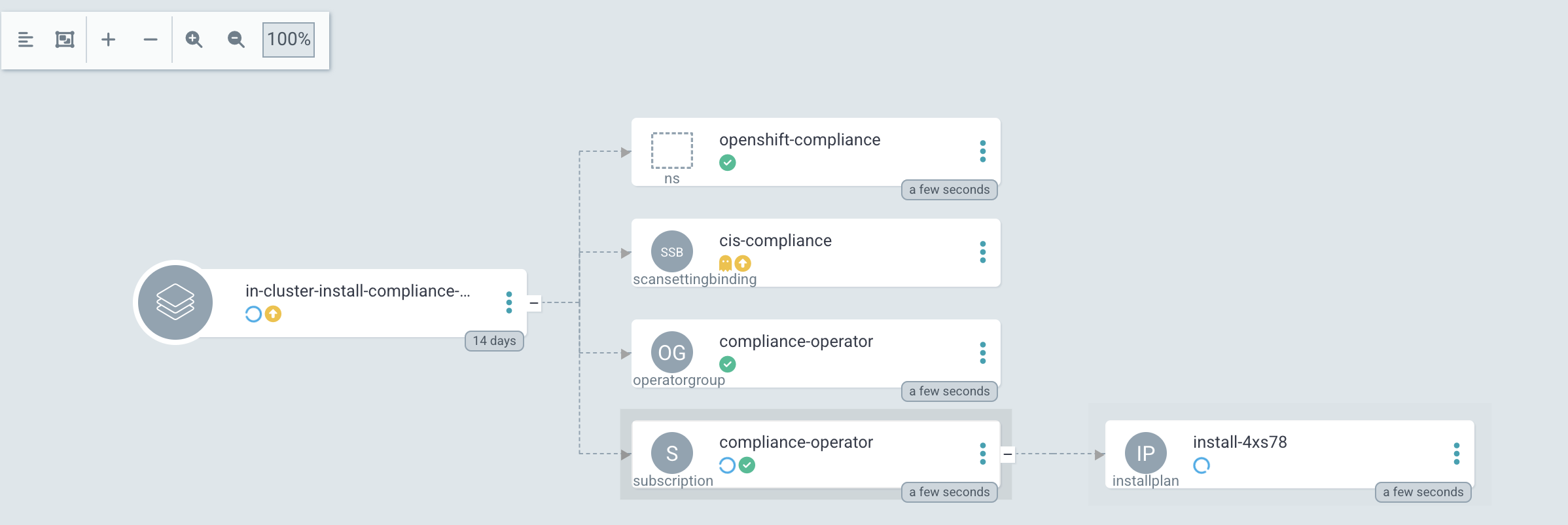

2. Sync Wave 0: Synchronization has started. Namespace and Subscription are deployed.

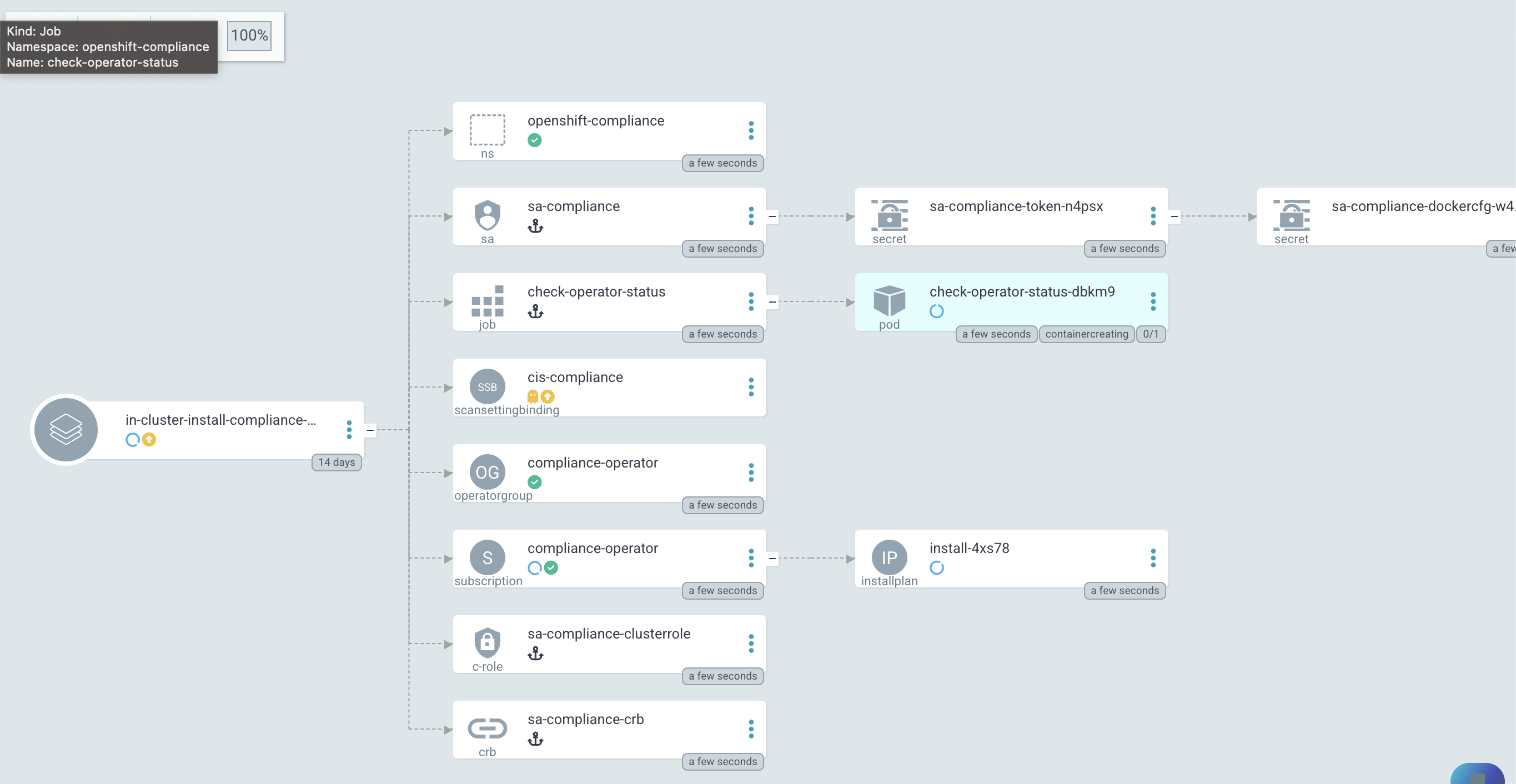

3. Sync Wave 1: Status Checker Job has started and tries to verify the Operator.

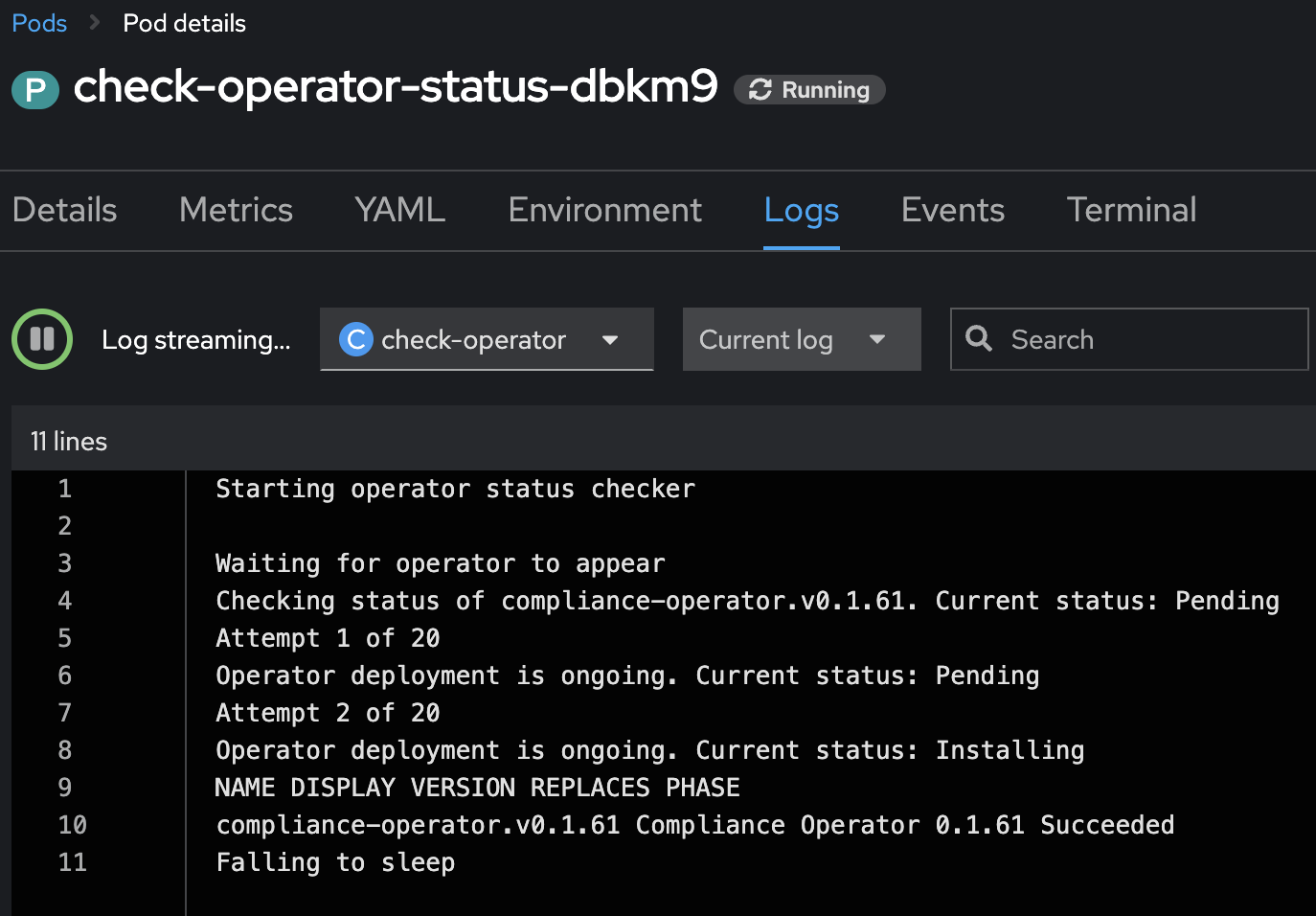

4. The Log output of the Operator. You can see that the status switches from Pending to Installing to Succeeded.

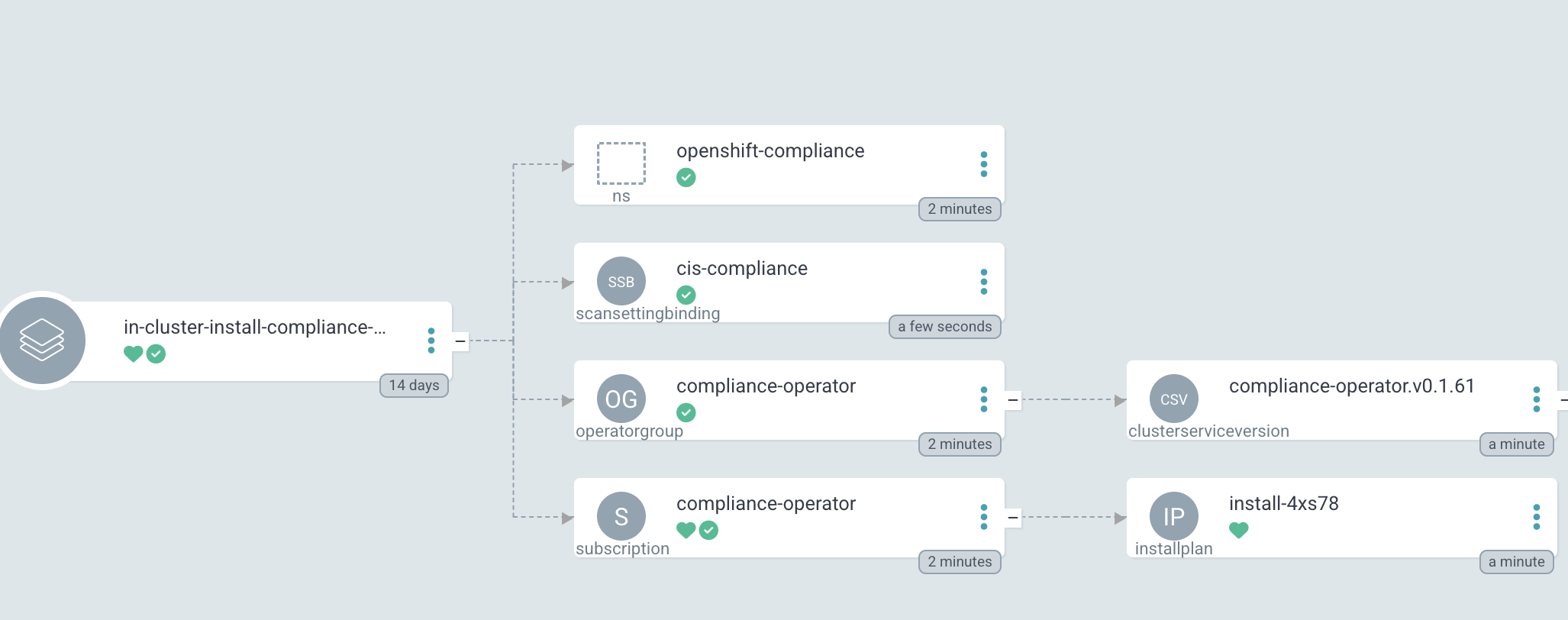

5. After Sync Wave 3, the whole Application was synchronized, and the Checker Job was removed.
Wrap up
This is one way to install and configure an Operator using a single Argo CD Application. It works on different installations and for different setups. Other options might still be feasible, like using retries or multiple Applications. I prefer this solution since I only manage a single App.
