Offers choice of deployment configurations for containerized applications

By Irshad Raihan and Sayan Saha, Red Hat Storage

One of the key reasons software-defined storage has risen to fame over the past decade is the multiple aspects of agility it offers. As we move into the era of application-centric IT, microservices, and containers, agility isn’t just a good idea, it could mean the difference between survival and extinction.

Agility in a container-centric datacenter

As we covered in a recent webinar, Red Hat Gluster Storage offers unique value to developers and administrators looking for a storage solution that is not only container-aware but serves out storage for containerized applications natively.

One critical aspect of agility offered by Red Hat Storage is that the storage can be deployed in a number of configurations in relation to the hardware where the containers reside. This allows architects to choose the best configuration that makes the most sense for their particular situation and yet allows them to transition to a different configuration with minimal impact to applications.

Dedicated, scale-out storage for containerized applications

If you’re a storage admin looking to provide a stand-alone storage volume to applications running in containers, Red Hat Gluster Storage can expose a mount point so your applications have access to a durable, distributed storage cluster.

gluster1

In this configuration, the Red Hat Gluster Storage installation runs in an independent cluster (either on premise or in one of the supported public clouds: Microsoft Azure, AWS, or Google Cloud Platform) and is accessed over the network from a platform like Red Hat OpenShift.

Red Hat OpenShift — optimized to run containerized applications and workloads — ships with the appropriate Gluster storage plugins necessary to make this configuration work out of the box.

Container-native storage: Persistent storage for containers with containers

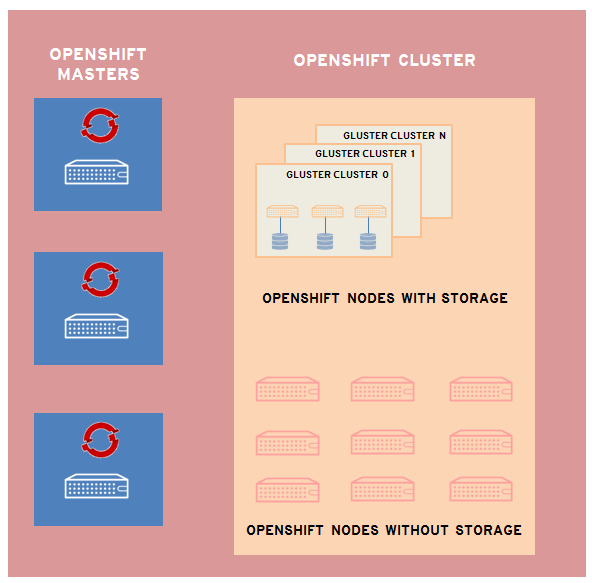

In another deployment configuration, you can run containerized Red Hat Gluster Storage inside Red Hat’s OpenShift Container Platform. Red Hat Gluster Storage containers are orchestrated using Kubernetes, OpenShift’s container orchestrator like any other application container.

The storage container (Kubernetes pod) pools and serves out local or direct-attached storage from hosts (to be consumed by application containers for their persistent storage needs), offering Gluster’s rich set of enterprise-class storage features, data services, and data-protection capabilities for applications and microservices running in OpenShift.

Exactly one privileged Red Hat Gluster Storage container is instantiated per host as a Kubernetes pod. As a user, you benefit from being able to deploy enterprise-grade storage using a workflow that is consistent with their application orchestration, use a converged (compute + storage) deployment model, and can choose storage-intensive nodes (hosts with local or direct-attached storage) within a cluster for deploying storage containers, optionally collocated with application containers.


This solution, known as container-native storage, currently generally available from Red Hat, leverages an open source project named Heketi. contributed by Luis Pabón (one of the speakers on the recent webinar). Heketi is a RESTful volume manager that allows for programmatic volume allocation and provides the glue necessary to manage multiple Gluster volumes across clusters, thereby allowing Kubernetes to provision storage without being limited to a single Red Hat Gluster Storage cluster.

Heketi enhances the user experience of dynamically managing storage, whether it’s via the API or as a developer working in the OpenShift Container Platform, and runs as a container itself inside OpenShift in the container-native storage solution, providing a service endpoint for Gluster. As a storage administrator, you no longer need to manage or configure bricks, disks, or trusted storage pools. The Heketi service will manage all hardware for you, enabling it to allocate storage on demand. Any disks registered with Heketi must be provided in raw format, which will then be managed by it using LVM on the disks provided.

gluster1

This is a key differentiator for Red hat Gluster Storage. As far as we can tell, no other storage vendor can provide this flavor of container-native storage, and certainly not with the level of integration provided with OpenShift Container Platform. As a number of early adopters have told us, it’s invaluable to have a single point of support all the way up from the operating system layer, to orchestration, app dev, and storage.

Stay tuned — 'cause we're not done

We're working hard to continue to innovate to make a much more seamless experience for developers and administrators alike to manage storage in a containerized environment.

gluster1

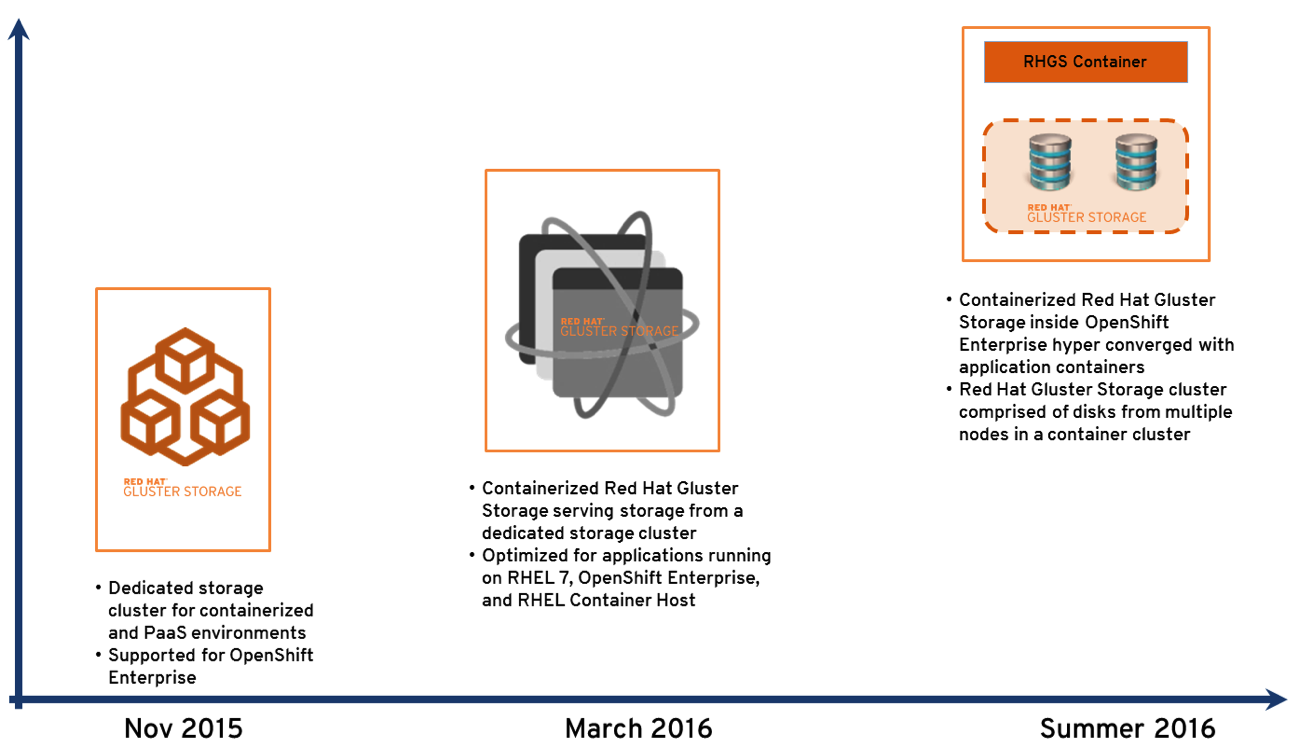

We’ve delivered a number of industry-first innovations over the past year and will continue to focus on enabling a seamless user experience for developers and administrators looking to adopt containers as the preferred deployment platform. Stay tuned.
