For Telcos considering OpenStack, one of the major areas of focus can be around network performance. While the performance discussion may often begin with talk of throughput numbers expressed in Million-packets-per-second (Mpps) values across Gigabit-per-second (Gbps) hardware, it really is only the tip of the performance iceberg. The most common requirement is to have absolutely stable and deterministic network performance (Mpps and latency) over the absolutely fastest possible throughput. With that in mind, many applications in the Telco space require low latency that can only tolerate zero packet loss.
In this “Operationalizing OpenStack” blogpost Federico Iezzi, EMEA Cloud Architect with Red Hat, discusses some of the real-world deep tuning and process required to make zero packet loss a reality!
Packet loss is bad for business ...

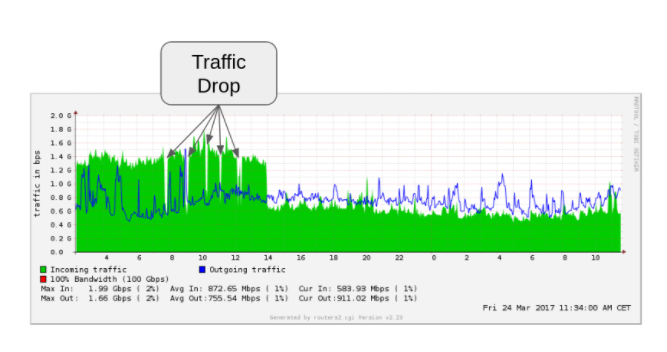

Packet loss can be defined as occurring “when one or more packets of data travelling across a computer network fail to reach their destination .” Packet loss results in protocol latency as losing a TCP packet requires retransmission, which takes time. What’s worse, protocol latency manifests itself externally as “application delay.” And, of course, “application delay” is nothing more than a fancy term for something that all Telco’s want to avoid: a fault. So, as network performance degrades, and packets drop, retransmission occurs at higher and higher rates. The more retransmission the more latency experienced and the slower the system gets. With increased packets due to this retransmission we also see increased congestion slowing the system even further.
Tune in now for better performance …
So how do we prepare OpenStack for Telco?
It's easy! Tuning!
Red Hat OpenStack Platform is supported by a detailed Network Functions Virtualization (NFV) Reference Architecture which offers a lot of deep tuning across multiple technologies ranging from Red Hat Enterprise Linux to the Data Plane Development Kit (DPDK) from Intel. A great place to start is with the Red Hat Network Functions Virtualization (NFV) Product Guide. It covers tuning for the following components:
- Red Hat Enterprise Linux version 7.3
- Red Hat OpenStack Platform version 10 or greater
- Data plane tuning
- Open vSwitch with DPDK at least version 2.6
- SR-IOV VF or PF
- System Partitioning through Tuned using profile cpu-partitioning at least version 2.8
- Non-uniform memory access (NUMA) and virtual non-uniform memory access (vNUMA)
- General OpenStack configuration
Hardware notes and prep …
It's worth mentioning that the hardware to be used in achieving zero packet loss often
needs to be latest generation. Hardware decisions around network interface cards and vendors can often affect packet loss and tuning success. For hardware, be sure to consult your vendor’s documentation prior to purchase to ensure the best possible outcomes. Ultimately, regardless of hardware, some setup should be done in the hardware BIOS/UEFI for stable CPU frequency while removing power saving features.
|MLC Spatial Prefetcher||Enabled|
|Memory RAS and Performance Config||Maximum Performance|
|DCU Data Prefetcher||Enabled|
|CPU Power and Performance||Performance|
|C6 Power State||Disabled|
|C3 Power State||Disabled|
|Intel(R) Hyper-Threading||Disabled or Enabled|
|Active Processor Cores||All|
|Execute Disable Bit||Enabled|
|Intel(R) Virtualization Technology||Enabled|
|Enhanced Error Containment Mode||Disabled|
|USB 3.0 Controller||Auto|
|Legacy USB Support||Disabled|
|Port 60/64 Emulation||Disabled|
BIOS Settings from:
Divide and Conquer ...
Properly enforcing resource partitioning is essential in achieving zero packet loss performance and to do this you need to partition the resources between the host and the guest correctly. System partitioning ensures that software resources running on the host are always given access to dedicated hardware. However, partitioning goes further than just access to hardware as it can be used to ensure that resources utilize the closest possible memory addresses across all the processors. When a CPU retrieves data from a memory address it first looks at the local cache on the local processor core itself. Proper partitioning, via tuning, ensures that requests are answered from the closest cache (L1, L2 or L3 cache) as well as from the local memory, minimizing transaction times and the usage of a point-to-point processor interconnection bus such as the QPI (Intel QuickPath Interconnect). This way of accessing and dividing the memory is defined as NUMA (non-uniform memory access) design.
Tuned in …
System partitioning involves a lot of complex, low-level tuning. So how does one do this easily?
You’ll need to use the tuned daemon along with the the accompanying cpu partitioning profile. Tuned is a daemon that monitors the use of system components and dynamically tunes system settings based on that monitoring information. Tuned is distributed with a number of predefined profiles for common use cases. For all this to work, you’ll need the newest tuned features. This requires the latest version of tuned (i.e. 2.8 or later) as well as the latest tuned cpu-partitioning profile (i.e. 2.8 or later). Both have are available publicly via the Red Hat Enterprise Linux 7.4 beta release or you can grab the daemon and profiles directly from their upstream projects.
Interested in the latest generation of Red Hat Enterprise Linux? Be the first to know when it is released by following the official Red Hat Enterprise Linux Blog!
However, before any tuning can begin, you must first decide how the system should be partitioned.
Based on Red Hat experience with customer deployments, we usually find it necessary to define how the system should be partitioned for every specific compute model. In the example pictured above, the total number of PMD cores - one CPU core is two CPU threads - had to be carefully calculated by knowing the overall required Mpps as well as the total number of DPDK interfaces, both physical and vPort. An unbalanced PMD number versus DPDK ports will result in lower performance and interrupts which will generate packet-loss. The rest of the tuning was for the VNF threads, excluding at least one core per NUMA node for the operating system.
Looking for more great ways to ensure your Red Hat OpenStack Platform deployment is rock solid? Check out the Red Hat Services Webinar Don't fail at scale: How to plan, build, and operate a successful OpenStack cloud today!
Looking at the upstream templates as well as in the tuned cpu-partitioning profile, there is a lot to understand about the specific settings that are executed on each core per NUMA node.
So, just what needs to be tuned? Find out more in Part 2 where you’ll get a thorough and detailed breakdown of many specific tuning parameters to help achieve zero packet loss!
The “Operationalizing OpenStack” series features real-world tips, advice and experiences from experts running and deploying OpenStack.
About the author
Federico Iezzi is an open-source evangelist who has witnessed the Telco NFV transformation. Over his career, Iezzi achieved a number of international firsts in the public cloud space and also has about a decade of experience with OpenStack. He has been following the Telco NFV transformation since 2014. At Red Hat, Federico is member of the EMEA Telco practice as a Principle Architect.
