In a previous blog post, I discussed Istio multicluster service mesh and how it could be set up with Submariner across managed clusters in Red Hat Advanced Cluster Management for Kubernetes.

Actually with submariner in Red Hat Advanced Cluster Management for Kubernetes, we can easily set up a service mesh across multiple managed clusters with a shared Istio control plane in the hub cluster, while the Istio data plane (or the workloads with Istio sidecar proxies) will be deployed and running in the managed clusters. In edge scenario, this is pretty useful because the resources in edge device are expensive. The deployment model also allows a universal management and observability console of the whole multicluster mesh.

The aim of this blog is to show how to achieve that single Istio service mesh by leveraging Submariner and Istio in Red Hat Advanced Cluster Management for Kubernetes, and how it could simplify the mesh management for day-2 operations.

Before we start to the deploy steps, let's first take a look at what the architecture of the service mesh looks like:

acm-istio-multicluster-mesh-with-submariner

Prerequisites

Before we begin the Istio service mesh installation, we need to complete the following procedure:

  1. Prepare three Red Hat OpenShift clusters with different IP CIDR ranges and install the hub of Red Hat Advanced Cluster Management for Kubernetes in one of the three clusters. In this blog, we create three Red Hat OpenShift clusters named mcsdemo, mcsdemo1 and mcsdemo2 with the following IP CIDR ranges:
Cluster Pod CIDR Service CIDR
mcsdemo 10.128.0.0/14 172.30.0.0/16
mcsdemo1 10.132.0.0/14 172.31.0.0/16
mcsdemo2 10.140.0.0/14 172.32.0.0/16
  1. Then we need to import another two clusters by following the instructions.
  2. Then deploy Submariner network service to connect the three clusters by following the procedure in the Submariner documentation.

We also need to follow the instructions to download and install istioctl, which will be used throughout this blog.

Follow these instructions for configuring Istio on OpenShift to update security configurations for the two Red Hat OpenShift clusters before deploying Istio.

Installation

After we've completed all the necessary pieces of the cluster configuration requirements, we can now start the service mesh installation. To make it clearer, export the the following environment variables that will be used throughout to simplify the instructions:

export CTX_HUB_CLUSTER=<context of the hub cluster: mcsdemo>
export CTX_MC1_CLUSTER=<context of the managed cluster: mcsdemo1>
export CTX_MC2_CLUSTER=<context of the managed cluster: mcsdemo2>
export CENTRAL_ISTIOD_ADDR=<FQDN of the central istiod that can be accessed among the three clusters>
export LOCAL_CLUSTER_NAME=<name of the local-cluster: local-cluster>
export MC1_CLUSTER_NAME=<name of the managedcluster 1: mcsdemo1>
export MC2_CLUSTER_NAME=<name of the managedcluster 2: mcsdemo2>

For this demo environment, the the environment variables are as follow:

export CTX_HUB_CLUSTER=default/api-mcsdemo-red-chesterfield-com:6443/kube:admin
export CTX_MC1_CLUSTER=default/api-mcsdemo1-red-chesterfield-com:6443/kube:admin
export CTX_MC2_CLUSTER=default/api-mcsdemo2-red-chesterfield-com:6443/kube:admin
export CENTRAL_ISTIOD_ADDR=istiod.istio-system.svc.clusterset.local
export LOCAL_CLUSTER_NAME=local-cluster
export MC1_CLUSTER_NAME=mcsdemo1
export MC2_CLUSTER_NAME=mcsdemo2

Set up the Istio installation on managed clusters

  1. Create the Istio installation configuration by using the external profile to configure the service mesh deployment in the managed cluster. This will install an injection webhook that uses the central control plane’s injector, instead of a locally deployed one:
cat <<EOF > istio-remote-config-${MC1_CLUSTER_NAME}.yaml
apiVersion: install.istio.io/v1alpha1
kind: IstioOperator
metadata:
namespace: istio-system
spec:
profile: external
components:
base:
enabled: true
cni:
enabled: true
namespace: kube-system
k8s:
overlays:
- kind: DaemonSet
name: istio-cni-node
patches:
- path: spec.template.spec.containers[0].securityContext.privileged
value: true
values:
global:
configCluster: true
meshID: mesh1
multiCluster:
clusterName: ${MC1_CLUSTER_NAME}
network: network1
tracer:
zipkin:
address: zipkin.istio-system.svc.clusterset.local:9411
pilot:
configMap: true
istiodRemote:
injectionURL: https://${CENTRAL_ISTIOD_ADDR}:443/inject/:ENV:cluster=${MC1_CLUSTER_NAME}:ENV:net=network1
base:
validationURL: https://${CENTRAL_ISTIOD_ADDR}:443/validate
cni:
cniBinDir: /var/lib/cni/bin
cniConfDir: /etc/cni/multus/net.d
chained: false
cniConfFileName: "istio-cni.conf"
excludeNamespaces:
- istio-system
- kube-system
logLevel: info
sidecarInjectorWebhook:
injectedAnnotations:
k8s.v1.cni.cncf.io/networks: istio-cni
EOF
  1. Then install the Istio configurations on the managed cluster:
oc --context=${CTX_MC1_CLUSTER} create namespace istio-system
oc --context=${CTX_MC1_CLUSTER} label ns istio-system topology.istio.io/network=network1
istioctl manifest generate -f istio-remote-config-${MC1_CLUSTER_NAME}.yaml | oc \
apply --context=${CTX_MC1_CLUSTER} -f -
  1. Replace the ${MC1_CLUSTER_NAME} and ${CTX_MC1_CLUSTER} with ${MC2_CLUSTER_NAME} and ${CTX_MC2_CLUSTER} and repeat step 1 and 2 for another managed cluster.

  2. Verify the Istio resources are created in the managed clusters:

oc --context=${CTX_MC1_CLUSTER} -n istio-system get sa,secret,cm
oc --context=${CTX_MC2_CLUSTER} -n istio-system get sa,secret,cm
oc --context=${CTX_MC1_CLUSTER} get mutatingwebhookconfiguration istio-sidecar-injector
oc --context=${CTX_MC1_CLUSTER} get validatingwebhookconfiguration istio-validator-istio-system

Note: We are supposed to see Istio resources are created in the managed clusters after executing the commands above.

Set up the Central Istio Control Plane on Hub Cluster

  1. Create the istio-system namespace and service account for the central Istio ontrol plane in hub cluster:
oc --context=${CTX_HUB_CLUSTER} create ns istio-system
oc --context=${CTX_HUB_CLUSTER} -n istio-system create sa istiod-service-account
  1. The central Istio control plane in hub cluster needs access to the managed clusters to discover services, endpoints, and pod attributes. Create a secret with credentials to access the kube-apiserver of managed cluster and install it in hub cluster:
ISTIO_READER_SRT_NAME_FOR_MC1=$(oc --context=${CTX_MC1_CLUSTER} \
-n istio-system get serviceaccount/istiod -o jsonpath='{.secrets}' | \
jq -r '.[] | select(.name | test ("istiod-token-")).name')
istioctl x create-remote-secret \
--context=${CTX_MC1_CLUSTER} \
--name=${MC1_CLUSTER_NAME} \
--type=remote \
--namespace=istio-system \
--service-account=istiod \
--secret-name=${ISTIO_READER_SRT_NAME_FOR_MC1} \
--create-service-account=false | \
oc --context=${CTX_HUB_CLUSTER} apply -f -
  1. Execute the similar step for another managed cluster:
ISTIO_READER_SRT_NAME_FOR_MC2=$(oc --context=${CTX_MC2_CLUSTER} \
-n istio-system get serviceaccount/istiod -o jsonpath='{.secrets}' | \
jq -r '.[] | select(.name | test ("istiod-token-")).name')
istioctl x create-remote-secret \
--context=${CTX_MC2_CLUSTER} \
--name=${MC2_CLUSTER_NAME} \
--type=remote \
--namespace=istio-system \
--service-account=istiod \
--secret-name=${ISTIO_READER_SRT_NAME_FOR_MC2} \
--create-service-account=false | \
oc --context=${CTX_HUB_CLUSTER} apply -f -
  1. Verify the remote secrets are created successfully in hub cluster:
$ oc --context=${CTX_HUB_CLUSTER} -n istio-system get secret -l istio/multiCluster=true
NAME TYPE DATA AGE
istio-remote-secret-mcsdemo1 Opaque 1 59s
istio-remote-secret-mcsdemo2 Opaque 1 43s

Note: We should see two secrets named istio-remote-secret-mcsdemo1 and istio-remote-secret-mcsdemo2 are listed by the command above.

  1. Create the Istio configuration to deploy the central control plane and istio-ingressgateway in istio-system namespace of hub cluster:
cat <<EOF > istio-central-config-hub.yaml
apiVersion: install.istio.io/v1alpha1
kind: IstioOperator
metadata:
namespace: istio-system
spec:
profile: empty
meshConfig:
defaultConfig:
discoveryAddress: ${CENTRAL_ISTIOD_ADDR}:15012
proxyMetadata:
XDS_ROOT_CA: /var/run/secrets/istio/root-cert.pem
CA_ROOT_CA: /var/run/secrets/istio/root-cert.pem
components:
base:
enabled: true
cni:
enabled: true
namespace: kube-system
k8s:
overlays:
- kind: DaemonSet
name: istio-cni-node
patches:
- path: spec.template.spec.containers[0].securityContext.privileged
value: true
ingressGateways:
- name: istio-ingressgateway
enabled: true
pilot:
enabled: true
k8s:
overlays:
- kind: Deployment
name: istiod
patches:
- path: spec.template.spec.volumes[100]
value: |-
name: config-volume
configMap:
name: istio
- path: spec.template.spec.volumes[100]
value: |-
name: inject-volume
configMap:
name: istio-sidecar-injector
- path: spec.template.spec.containers[0].volumeMounts[100]
value: |-
name: config-volume
mountPath: /etc/istio/config
- path: spec.template.spec.containers[0].volumeMounts[100]
value: |-
name: inject-volume
mountPath: /var/lib/istio/inject
env:
- name: EXTERNAL_ISTIOD
value: "true"
- name: SHARED_MESH_CONFIG
value: istio
- name: ISTIOD_CUSTOM_HOST
value: ${CENTRAL_ISTIOD_ADDR}
values:
global:
caAddress: ${CENTRAL_ISTIOD_ADDR}:15012
operatorManageWebhooks: true
meshID: mesh1
multiCluster:
clusterName: ${LOCAL_CLUSTER_NAME}
network: network1
tracer:
zipkin:
address: zipkin.istio-system.svc.clusterset.local:9411
cni:
cniBinDir: /var/lib/cni/bin
cniConfDir: /etc/cni/multus/net.d
chained: false
cniConfFileName: "istio-cni.conf"
excludeNamespaces:
- istio-system
- kube-system
logLevel: info
sidecarInjectorWebhook:
injectedAnnotations:
k8s.v1.cni.cncf.io/networks: istio-cni
EOF
  1. Apply the Istio configuration in hub cluster:
istioctl --context=${CTX_HUB_CLUSTER} install -f istio-central-config-hub.yaml --skip-confirmation
  1. Verify that the central istiod and istio-ingressgateway have been successfully deployed in hub cluster:
$ oc --context=${CTX_HUB_CLUSTER} -n istio-system get pod,svc
NAME READY STATUS RESTARTS AGE
pod/istio-ingressgateway-86464c97f5-tp7mr 1/1 Running 0 22s
pod/istiod-98d586c48-zgt46 1/1 Running 0 38s

NAME TYPE CLUSTER-IP EXTERNAL-IP PORT(S) AGE
service/istio-ingressgateway LoadBalancer 172.30.251.10 <pending> 15021:32440/TCP,80:31976/TCP,443:32119/TCP 22s
service/istiod ClusterIP 172.30.93.244 <none> 15010/TCP,15012/TCP,443/TCP,15014/TCP 37s

Note: We should see pod and service for istiod and istio-ingressgateway are up and running in hub cluster with the command above.

  1. Export the central Istio control plane with ServiceExport so that it can be accessed from other managed clusters:
cat << EOF | oc --context=${CTX_HUB_CLUSTER} apply -n istio-system -f -
apiVersion: multicluster.x-k8s.io/v1alpha1
kind: ServiceExport
metadata:
name: istiod
namespace: istio-system
EOF
  1. Expose the istio-ingressgateway service with Red Hat Openshift route so that it can be accessed by user from outside:
oc --context=${CTX_HUB_CLUSTER} -n istio-system expose svc istio-ingressgateway --port=http2

Patch the DNS Configuration for the kube-apiserver of managed clusters

Due to a Submariner known issue, the kube-apiserver of managed clusters need to be patched to add DNS entry of Submariner exported service so that istio sidecar injector can be working. This can be done by executing the following steps:

  1. Get the clusterIP of the central Istio control plane in hub cluster:
oc --context=${CTX_HUB_CLUSTER} \
-n istio-system get svc istiod -o jsonpath="{.spec.clusterIP}"
  1. Get all the kube-apiserver pods of each managed cluster and patch the /etc/hosts file for each kube-apiserver pod to add a new DNS entry, the IP of the DNS entry is the command output in step 1, while the FQDN wil be istiod.istio-system.svc.clusterset.local. An example result after this step will be similar to the following output:
$ oc --context=${CTX_MC1_CLUSTER} -n openshift-kube-apiserver get pod -l apiserver=true
NAME READY STATUS RESTARTS AGE
kube-apiserver-ip-10-0-131-252.ec2.internal 5/5 Running 0 2h
$ oc --context=${CTX_MC1_CLUSTER} -n openshift-kube-apiserver exec -it kube-apiserver-ip-10-0-131-252.ec2.internal -- vi /etc/hosts # add DNS entry manually
$ oc --context=${CTX_MC1_CLUSTER} -n openshift-kube-apiserver exec -it kube-apiserver-ip-10-0-131-252.ec2.internal -- cat /etc/hosts # verify
127.0.0.1 localhost localhost.localdomain localhost4 localhost4.localdomain4
::1 localhost localhost.localdomain localhost6 localhost6.localdomain6
172.31.197.220 image-registry.openshift-image-registry.svc image-registry.openshift-image-registry.svc.cluster.local # openshift-generated-node-resolver
172.30.182.132 istiod.istio-system.svc.clusterset.local

Note: The step 2 needs to be executed against each of the two managed clusters.

Deploy the Bookinfo Application

Before we start to the deploy the bookinfo application, let's first take a look at the overall deployment model we will install:

acm-istio-multicluster-mesh-with-submariner-app-bookinfo

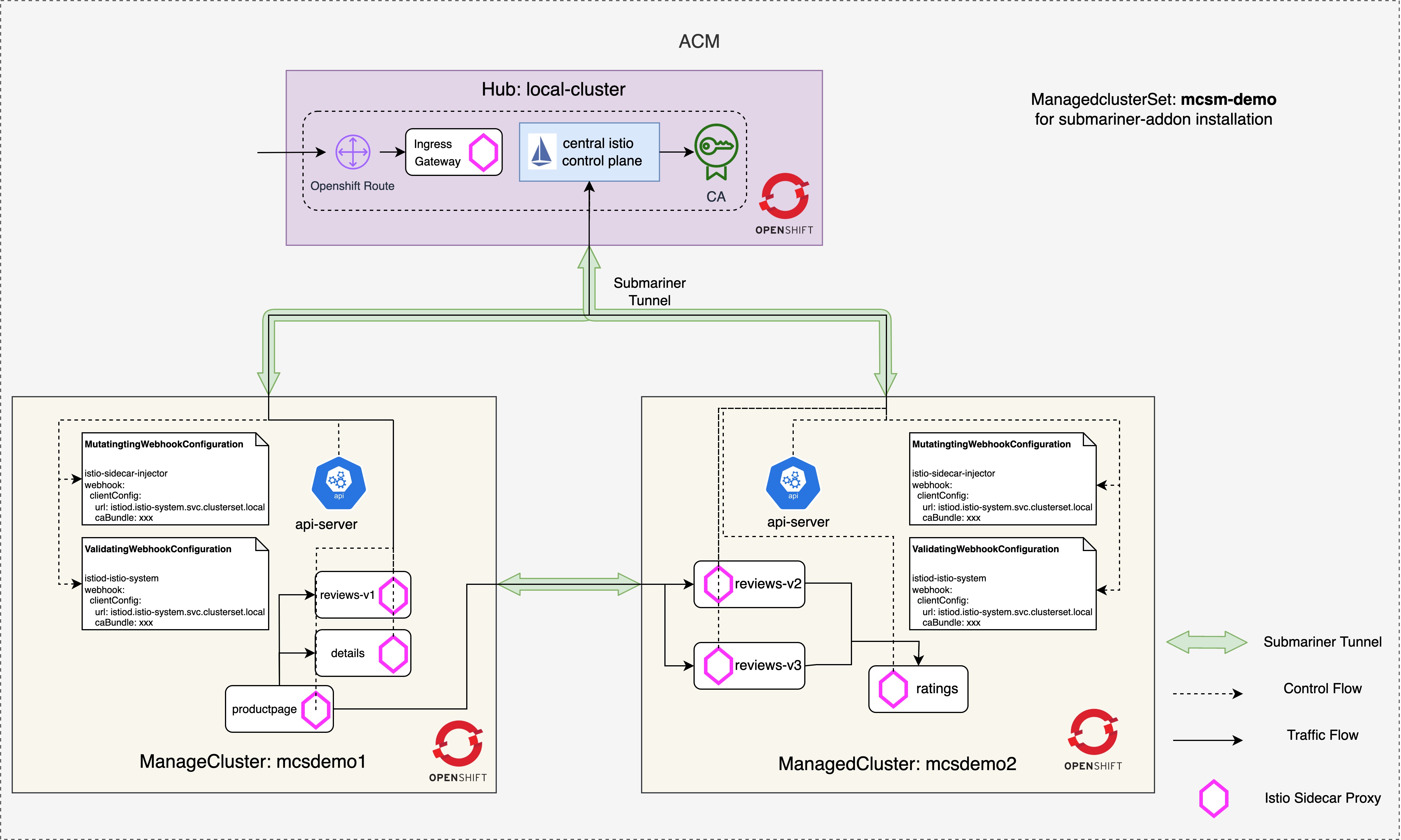

As you can see from above diagram, productpage, details and reviews-v1 microservices will be deployed in the first managed cluster, while reviews-v2, reviews-v3 and ratings microservices will be deployed in abother managed cluster. We also have deployed the Istio ingress gateway in hub cluster so that the bookinfo can be accessed via that.

  1. Deploy the productpage, details and reviews-v1 microservices into istio-apps namespace of the first managed cluster:
oc --context=${CTX_MC1_CLUSTER} apply -n istio-apps -l account=productpage \
-f https://raw.githubusercontent.com/istio/istio/release-1.11/samples/bookinfo/platform/kube/bookinfo.yaml
oc --context=${CTX_MC1_CLUSTER} apply -n istio-apps -l service=productpage \
-f https://raw.githubusercontent.com/istio/istio/release-1.11/samples/bookinfo/platform/kube/bookinfo.yaml
oc --context=${CTX_MC1_CLUSTER} apply -n istio-apps -l app=productpage,version=v1 \
-f https://raw.githubusercontent.com/istio/istio/release-1.11/samples/bookinfo/platform/kube/bookinfo.yaml
oc --context=${CTX_MC1_CLUSTER} apply -n istio-apps -l account=details \
-f https://raw.githubusercontent.com/istio/istio/release-1.11/samples/bookinfo/platform/kube/bookinfo.yaml
oc --context=${CTX_MC1_CLUSTER} apply -n istio-apps -l service=details \
-f https://raw.githubusercontent.com/istio/istio/release-1.11/samples/bookinfo/platform/kube/bookinfo.yaml
oc --context=${CTX_MC1_CLUSTER} apply -n istio-apps -l app=details,version=v1 \
-f https://raw.githubusercontent.com/istio/istio/release-1.11/samples/bookinfo/platform/kube/bookinfo.yaml
oc --context=${CTX_MC1_CLUSTER} apply -n istio-apps -l account=reviews \
-f https://raw.githubusercontent.com/istio/istio/release-1.11/samples/bookinfo/platform/kube/bookinfo.yaml
oc --context=${CTX_MC1_CLUSTER} apply -n istio-apps -l service=reviews \
-f https://raw.githubusercontent.com/istio/istio/release-1.11/samples/bookinfo/platform/kube/bookinfo.yaml
oc --context=${CTX_MC1_CLUSTER} apply -n istio-apps -l app=reviews,version=v1 \
-f https://raw.githubusercontent.com/istio/istio/release-1.11/samples/bookinfo/platform/kube/bookinfo.yaml
  1. Deploy reviews-v2, reviews-v3 and ratings microservices into istio-apps namespace of another managed cluster:
oc --context=${CTX_MC2_CLUSTER} apply -n istio-apps -l account=reviews \
-f https://raw.githubusercontent.com/istio/istio/release-1.11/samples/bookinfo/platform/kube/bookinfo.yaml
oc --context=${CTX_MC2_CLUSTER} apply -n istio-apps -l service=reviews \
-f https://raw.githubusercontent.com/istio/istio/release-1.11/samples/bookinfo/platform/kube/bookinfo.yaml
oc --context=${CTX_MC2_CLUSTER} apply -n istio-apps -l app=reviews,version=v2 \
-f https://raw.githubusercontent.com/istio/istio/release-1.11/samples/bookinfo/platform/kube/bookinfo.yaml
oc --context=${CTX_MC2_CLUSTER} apply -n istio-apps -l app=reviews,version=v3 \
-f https://raw.githubusercontent.com/istio/istio/release-1.11/samples/bookinfo/platform/kube/bookinfo.yaml
oc --context=${CTX_MC2_CLUSTER} apply -n istio-apps -l account=ratings \
-f https://raw.githubusercontent.com/istio/istio/release-1.11/samples/bookinfo/platform/kube/bookinfo.yaml
oc --context=${CTX_MC2_CLUSTER} apply -n istio-apps -l service=ratings \
-f https://raw.githubusercontent.com/istio/istio/release-1.11/samples/bookinfo/platform/kube/bookinfo.yaml
oc --context=${CTX_MC2_CLUSTER} apply -n istio-apps -l app=ratings,version=v1 \
-f https://raw.githubusercontent.com/istio/istio/release-1.11/samples/bookinfo/platform/kube/bookinfo.yaml
  1. Verify the bookinfo pods are injected with Istio sidecars and started successfully:
$ oc --context=${CTX_MC1_CLUSTER} -n istio-apps get pod
NAME READY STATUS RESTARTS AGE
details-v1-79f774bdb9-ngb7x 2/2 Running 0 4m20s
productpage-v1-6b746f74dc-bh97j 2/2 Running 0 4m21s
reviews-v1-545db77b95-gt2vw 2/2 Running 0 4m18s
$ oc --context=${CTX_MC2_CLUSTER} -n istio-apps get pod
NAME READY STATUS RESTARTS AGE
ratings-v1-b6994bb9-hfw78 2/2 Running 0 2m24s
reviews-v2-7bf8c9648f-6lzpg 2/2 Running 0 2m26s
reviews-v3-84779c7bbc-gljfp 2/2 Running 0 2m25s

Note: We should see the bookinfo pods are up and running, also the Istio sidecars should be injected into the pods.

  1. Verify the istio sidecars are connected to the central control plane:
$ istioctl --context=${CTX_HUB_CLUSTER} proxy-status
NAME CDS LDS EDS RDS ISTIOD VERSION
details-v1-79f774bdb9-ngb7x.istio-apps SYNCED SYNCED SYNCED SYNCED istiod-98d586c48-zgt46 1.11.4
istio-ingressgateway-86464c97f5-tp7mr.istio-system SYNCED SYNCED SYNCED NOT SENT istiod-98d586c48-zgt46 1.11.4
productpage-v1-6b746f74dc-bh97j.istio-apps SYNCED SYNCED SYNCED SYNCED istiod-98d586c48-zgt46 1.11.4
ratings-v1-b6994bb9-hfw78.istio-apps SYNCED SYNCED SYNCED SYNCED istiod-98d586c48-zgt46 1.11.4
reviews-v1-545db77b95-gt2vw.istio-apps SYNCED SYNCED SYNCED SYNCED istiod-98d586c48-zgt46 1.11.4
reviews-v2-7bf8c9648f-6lzpg.istio-apps SYNCED SYNCED SYNCED SYNCED istiod-98d586c48-zgt46 1.11.4
reviews-v3-84779c7bbc-gljfp.istio-apps SYNCED SYNCED SYNCED SYNCED istiod-98d586c48-zgt46 1.11.4
  1. Create gateway and virtualservice resources in hub cluster so that we can access the bookinfo application with the istio-ingressgateway :
oc --context=${CTX_HUB_CLUSTER} create ns istio-apps
oc --context=${CTX_HUB_CLUSTER} apply -n istio-apps \
-f https://raw.githubusercontent.com/istio/istio/release-1.11/samples/bookinfo/networking/bookinfo-gateway.yaml
  1. Verify that the bookinfo application can be accessed by running the following command:
$ export GATEWAY_URL=$(oc --context=${CTX_HUB_CLUSTER} \
-n istio-system get route istio-ingressgateway \
-o jsonpath="{.spec.host}")
$ curl -s "http://${GATEWAY_URL}/productpage" | grep "Simple Bookstore App"
<title>Simple Bookstore App</title>

Note: We can also point our browser to http://$GATEWAY_URL/productpage to view the bookinfo web page. If we refresh the page several times, we should see different versions of reviews shown in product page, presented in a round robin style (red stars, black stars, no stars), since we haven’t yet created Istio traffic rule to control the version routing.

  1. Create default destination rules for the bookinfo application:
oc --context=${CTX_HUB_CLUSTER} apply -n istio-apps \
-f https://raw.githubusercontent.com/istio/istio/release-1.11/samples/bookinfo/networking/destination-rule-all.yaml
  1. To route to one version only, we create virtual services in hub cluster that set the default version for the microservices. In this case, the virtual services will route all traffic to v1 of each microservice:
oc --context=${CTX_HUB_CLUSTER} apply -n istio-apps \
-f https://raw.githubusercontent.com/istio/istio/release-1.11/samples/bookinfo/networking/virtual-service-all-v1.yaml
  1. Test the new configurations once again by refreshing the /productpage of the bookinfo application. Notice that the reviews part of the page displays with no rating stars, no matter how many times we refresh. This is because we configured Istio to route all traffic for the reviews service to the version reviews:v1 and this version of the service does not access the star ratings service.

Note: We can create any arbitrary route configuration in hub cluster to verify the whole mesh is working as expected.

Summary

In the context of Istio multicluster service mesh, the use of Submariner, would remove the need to manage the east-west gateways, allowing for the selected services to be accessed directly just like they are in the same cluster. We set up a single service mesh across multiple clusters and a central management entrance for the whole mesh.


À propos de l'auteur

Parcourir par canal

automation icon

Automatisation

Les dernières nouveautés en matière d'automatisation informatique pour les technologies, les équipes et les environnements

AI icon

Intelligence artificielle

Actualité sur les plateformes qui permettent aux clients d'exécuter des charges de travail d'IA sur tout type d'environnement

open hybrid cloud icon

Cloud hybride ouvert

Découvrez comment créer un avenir flexible grâce au cloud hybride

security icon

Sécurité

Les dernières actualités sur la façon dont nous réduisons les risques dans tous les environnements et technologies

edge icon

Edge computing

Actualité sur les plateformes qui simplifient les opérations en périphérie

Infrastructure icon

Infrastructure

Les dernières nouveautés sur la plateforme Linux d'entreprise leader au monde

application development icon

Applications

À l’intérieur de nos solutions aux défis d’application les plus difficiles

Original series icon

Programmes originaux

Histoires passionnantes de créateurs et de leaders de technologies d'entreprise
