Managing a data center can be demanding and costly, and so there's a clear need for high-performance, cost-efficient general compute, networking, and storage solutions. Red Hat, Senao Networks, and Intel have joined forces to bring you the Senao SX904 Next-Gen NetSec Accelerator that tackles these challenges in innovative ways. Of course this solution integrates seamlessly with Red Hat's comprehensive enterprise platform offerings, including Red Hat Enterprise Linux (RHEL), Red Hat Device Edge and Red Hat OpenShift. In this article, we demonstrate how adding the Senao SX904 Next-Gen NetSec Accelerator PCIe card to an OpenShift cluster enables scaling of accelerated containerized workloads.
The Senao SX904 is essentially a data center server packaged in a PCIe form factor built on Intel® NetSec Accelerator Reference Design, as described in the SX904 datasheet. It's powered by the Intel® Xeon® D processor (codenamed Ice Lake), dual-25G Intel® Ethernet Controller E810 (codenamed Columbiaville), and MCIO for quad NVMe storage. Offering compute and security hardware acceleration, the SX904 delivers the processing capabilities required by today’s modern compute and storage intensive workloads.
Designed to tackle a wide range of use cases for general compute, networking, and storage, the SX904 is certified by Red Hat and available through the Red Hat Ecosystem Catalog, so you get full support and long-term maintenance with RHEL 9.4+ and OpenShift 4.16+.
The benefits of Red Hat platform technologies and the Senao SX904 Next-Gen NetSec Accelerator
The SX904 addresses the challenges of physical space limitations in scaling on-site data centers and reduces the need for purchasing additional rack servers. It integrates smoothly by simply plugging the card in existing servers that run on Red Hat software solutions, adding compute and storage nodes without significant cost or complexity, thereby extending the life of your existing server assets. This powerful PCIe card provides a way to transform how compute resources are deployed in the traditional datacenter and in external edge compute locations, thanks to:
- Total cost of ownership: The old adage that "more is better" isn't always true in computing. Adding another server to your cluster isn't always the right answer, and the SX904 highlights this. Instead of investing in more of what you already have, adding an SX904 card into an existing server enables a powerful and independently managed co-processor. The 10 Core SX904 has a cost of approximately $2,300 (USD). A comparable server platform with similar compute capacity (for instance, an Intel® Xeon® Silver 4309Y processor with 8 cores, 32 GB RDIMM, 480 GB SSD, and a Dual Port 10/25 GbE Network Adapter) retails for approximately $7,000 (USD)
- Greater efficiency to help minimize costs: A complete server system on a PCIe card mitigates the need for expensive hardware overhauls or long lead times for various components
- A design primed for the rigors of edge computing: The SX904 supports local data processing, security, AI Inferencing at the edge, and helps applications to run smoothly, whether they’re in-house or third-party. Plus, with native compatibility for x86 architecture, porting existing applications to the SX904 is a breeze
- Powerful Intel architecture: The SX904 is driven by the Intel Xeon D processor. It can handle compute-intensive tasks and AI applications, while also leaning on the advanced AI instruction sets of the processor cores to help get your operations ready for intelligent workloads
- Smooth optimization for Red Hat Enterprise Linux and Red Hat OpenShift: With the SX904, it's easy to deploy hybrid cloud strategies that build on the world’s leading enterprise Linux platform and the industry’s leading hybrid cloud application platform powered by Kubernetes
Making workload offloading less of a load
By combining the Senao SX904 Next-Gen NetSec Accelerator and RHEL, you can migrate workloads that you were running on x86 servers to the dedicated Intel Xeon D processor on the PCIe card. With the SX904 taking the workload, you can better optimize the performance of and offload security-based applications, including advanced firewall solutions.
OpenShift and the SX904

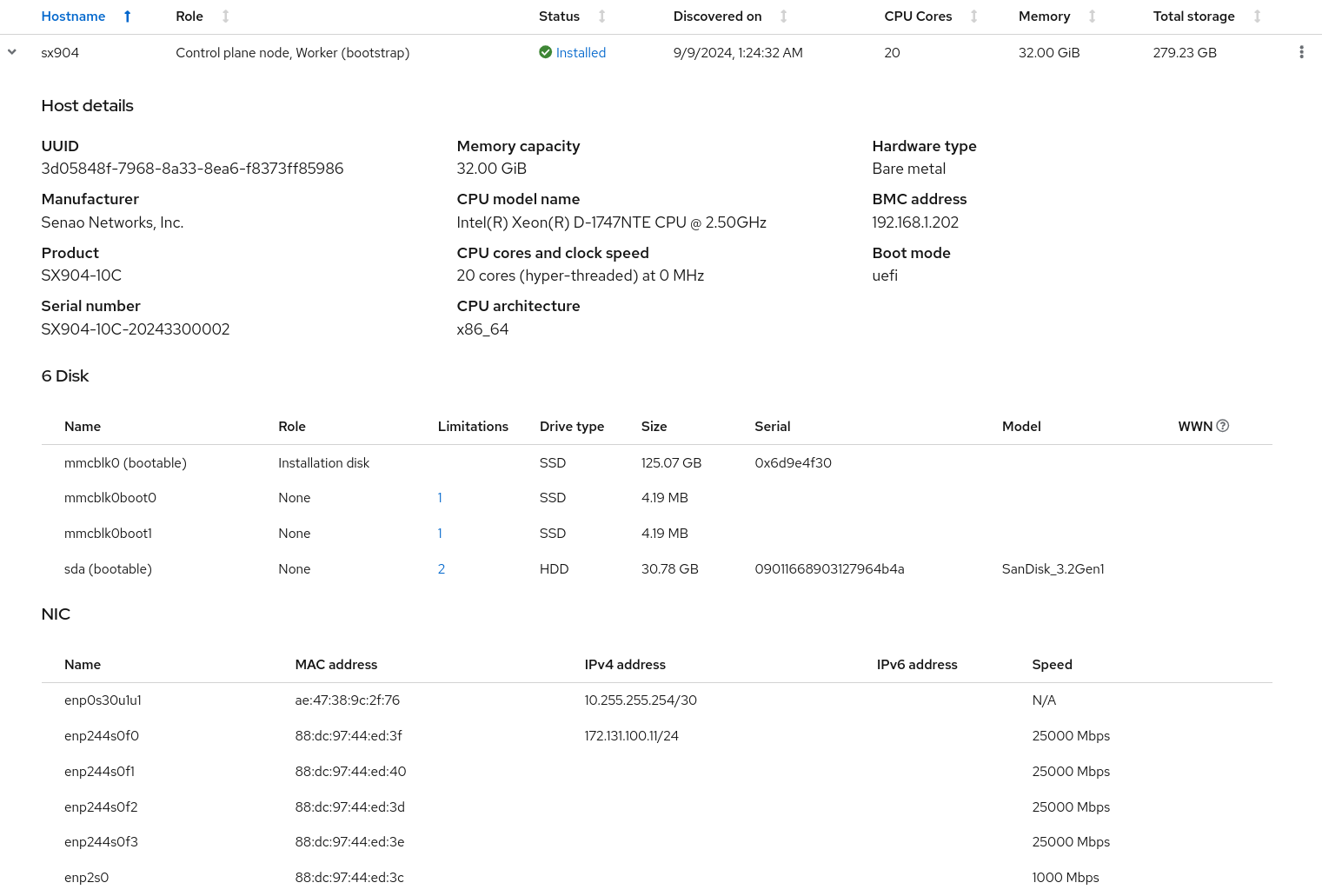

You can deploy the SX904 as a bare-metal node in OpenShift to more readily unleash the full potential of your containerized workloads. This allows you to benefit from OpenShift’s application ecosystem, portability, efficient resource utilization, and automated scaling. The SX904 with OpenShift provides for high availability with self-healing and rolling updates, while helping to simplify microservices management and security through advanced isolation features. Backed by OpenShift’s robust support and ecosystem, the SX904 provides a streamlined, ready-to-go hardware solution for deploying and managing modern applications at scale.
Provisioning Red Hat OpenShift on the host with SX904
With the SX904 installed as the single node Openshift (SNO) node, a few modifications to the SX904 node are needed to allow for connectivity between the host and the SX904. By default, there is no network connection between the host and the SX904.
By adding a Linux bridge between the backplane and external 25G interfaces as a Day-2 Operation on the SX904, the host shares the same Layer 2 network as the SX904. This allows both the host and the SX904 to access the Openshift control plane hosted on the SX904 as part of SNO. This can be done by adding the following network manager configuration through machine configuration:
Firstly we need to define the Linux bridge network manager connection as shown here:
# cat br0.nmconnection
[connection]
id=br0
uuid=86f88cbc-5fb5-458a-976c-c95ab33021b8
type=bridge
autoconnect-priority=-100
autoconnect-retries=1
interface-name=br0
multi-connect=1
[ethernet]
[bridge]
stp=false
[ipv4]
method=auto
[ipv6]
method=auto
Then for each of the external and host-facing interfaces, we need to define the network manager connection that references the Linux bridge connection we created above. The following network manager connection is for the external interface.
# cat enp244s0f0.nmconnection
[connection]
id=enp244s0f0
uuid=9671d7e8-354f-4977-a77a-3a36242d7d00
type=ethernet
autoconnect-priority=-100
autoconnect-retries=1
controller=86f88cbc-5fb5-458a-976c-c95ab33021b8
interface-name=enp244s0f0
master=86f88cbc-5fb5-458a-976c-c95ab33021b8
multi-connect=1
port-type=bridge
slave-type=bridge
[ethernet]
[bridge-port]
The following is the network manager configuration for the host-facing network connection. The configuration is similar to the external interface.
#cat enp244s0f2.nmconnection
[connection]
id=enp244s0f2
uuid=f3c0f4ab-5a42-4ed1-9271-56046d7ffb2e
type=ethernet
autoconnect-priority=-100
autoconnect-retries=1
controller=86f88cbc-5fb5-458a-976c-c95ab33021b8
interface-name=enp244s0f2
master=86f88cbc-5fb5-458a-976c-c95ab33021b8
multi-connect=1
port-type=bridge
slave-type=bridge
[ethernet]
[bridge-port]
These files can be then encoded to base64 with the following command:
cat <interface_name>.nmconnection | base64
These base64 encoded values would be used to store the file contents for the OpenShift machine configuration as shown below:
# cat 11-master-linux-bridge.yaml
apiVersion: machineconfiguration.openshift.io/v1
kind: MachineConfig
metadata:
labels:
machineconfiguration.openshift.io/role: master
name: 11-master-linux-bridge
spec:
config:
ignition:
version: 3.2.0
storage:
files:
- contents:
source: data:;base64,W2Nvbm5lY3Rpb25dCmlkPWVucDI0NHMwZjAKdXVpZD05NjcxZDdlOC0zNTRmLTQ5NzctYTc3YS0zYTM2MjQyZDdkMDAKdHlwZT1ldGhlcm5ldAphdXRvY29ubmVjdC1wcmlvcml0eT0tMTAwCmF1dG9jb25uZWN0LXJldHJpZXM9MQpjb250cm9sbGVyPTg2Zjg4Y2JjLTVmYjUtNDU4YS05NzZjLWM5NWFiMzMwMjFiOAppbnRlcmZhY2UtbmFtZT1lbnAyNDRzMGYwCm1hc3Rlcj04NmY4OGNiYy01ZmI1LTQ1OGEtOTc2Yy1jOTVhYjMzMDIxYjgKbXVsdGktY29ubmVjdD0xCnBvcnQtdHlwZT1icmlkZ2UKc2xhdmUtdHlwZT1icmlkZ2UKCltldGhlcm5ldF0KClticmlkZ2UtcG9ydF0K
path: /etc/NetworkManager/system-connections/enp244s0f0.nmconnection
filesystem: root
mode: 0600
- contents:
source: data:;base64,W2Nvbm5lY3Rpb25dCmlkPWVucDI0NHMwZjIKdXVpZD1mM2MwZjRhYi01YTQyLTRlZDEtOTI3MS01NjA0NmQ3ZmZiMmUKdHlwZT1ldGhlcm5ldAphdXRvY29ubmVjdC1wcmlvcml0eT0tMTAwCmF1dG9jb25uZWN0LXJldHJpZXM9MQpjb250cm9sbGVyPTg2Zjg4Y2JjLTVmYjUtNDU4YS05NzZjLWM5NWFiMzMwMjFiOAppbnRlcmZhY2UtbmFtZT1lbnAyNDRzMGYyCm1hc3Rlcj04NmY4OGNiYy01ZmI1LTQ1OGEtOTc2Yy1jOTVhYjMzMDIxYjgKbXVsdGktY29ubmVjdD0xCnBvcnQtdHlwZT1icmlkZ2UKc2xhdmUtdHlwZT1icmlkZ2UKCltldGhlcm5ldF0KClticmlkZ2UtcG9ydF0KCg==
path: /etc/NetworkManager/system-connections/enp244s0f2.nmconnection
filesystem: root
mode: 0600
- contents:
source: data:;base64,W2Nvbm5lY3Rpb25dCmlkPWJyMAp1dWlkPTg2Zjg4Y2JjLTVmYjUtNDU4YS05NzZjLWM5NWFiMzMwMjFiOAp0eXBlPWJyaWRnZQphdXRvY29ubmVjdC1wcmlvcml0eT0tMTAwCmF1dG9jb25uZWN0LXJldHJpZXM9MQppbnRlcmZhY2UtbmFtZT1icjAKbXVsdGktY29ubmVjdD0xCgpbZXRoZXJuZXRdCgpbYnJpZGdlXQpzdHA9ZmFsc2UKCltpcHY0XQptZXRob2Q9YXV0bwoKW2lwdjZdCm1ldGhvZD1hdXRvCgo=
path: /etc/NetworkManager/system-connections/br0.nmconnection
filesystem: root
mode: 0600
Lastly, apply the machine configuration file to have the Linux bridge created on the SX904 (please note that the SX904 will reboot to apply these changes):
# oc apply -f 11-master-linux-bridge.yaml
machineconfig.machineconfiguration.openshift.io/11-master-linux-bridge created
After the SX904 reboots with the Linux bridge created, the host can be provisioned with any method of adding hosts with the Assisted Installer.
)
Scaling pods with SX904
After the host gets added to the cluster, applications are able to scale horizontally between the host and the SX904.
# oc get nodes
NAME STATUS ROLES AGE VERSION
sx904 Ready control-plane,master,worker 20d v1.29.6+aba1e8d
host.server Ready worker 20d v1.29.6+aba1e8d
For example, a simple NGINX web server can be scaled across host and SX904 nodes:
# oc get pods
NAME READY STATUS IP NODE
nginx-deploy-6f7d... 1/1 Running 10.129.0.98 host.server
nginx-deploy-6f7d... 1/1 Running 10.129.0.96 host.server
nginx-deploy-6f7d... 1/1 Running 10.129.0.97 host.server
nginx-deploy-6f7d... 1/1 Running 10.128.0.201 sx904
nginx-deploy-6f7d... 1/1 Running 10.128.0.200 sx904
nginx-deploy-6f7d... 1/1 Running 10.128.0.202 sx904
Accessing these NGINX pods shows that OpenShift load balances requests across pods running on the host or SX904:
# oc logs nginx-deployment-6f7d5c8f7f-jbgh6 | grep GET
100.64.0.2 - - [22/Aug/2024:18:23:22 +0000] "GET / HTTP/1.1" 200 615 "-" "curl/7.76.1" "-"
# oc logs nginx-deployment-6f7d5c8f7f-vd76h | grep GET
100.64.0.2 - - [22/Aug/2024:18:23:23 +0000] "GET / HTTP/1.1" 200 615 "-" "curl/7.76.1" "-"
This simple example of scaling web microservices is just the tip of the iceberg of what can be done for offloading workloads on the SX904.
Better streamline your datacenter with Senao SX904 and Red Hat

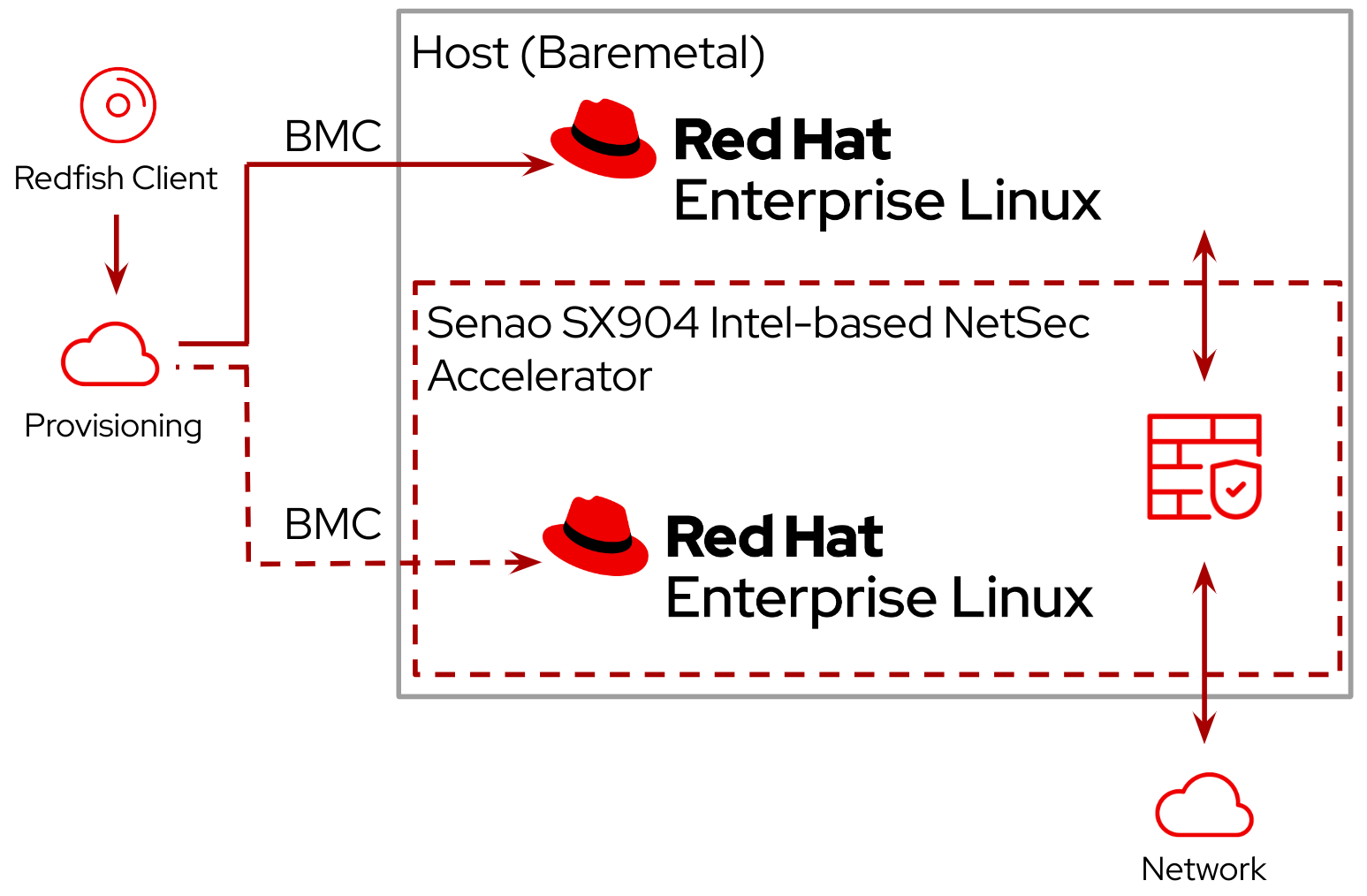

The Senao SX904 Next-Gen NetSec Accelerator features a baseboard management controller (BMC) that leverages the DMTF Redfish standard, enabling automated, highly scalable deployments with minimal effort. Its robust web interface is integrated with the processor's serial console through iKVM, and offers easy debugging for a hassle-free experience.
With the SX904, powerful provisioning is just a few clicks away. Administrators can more easily manage RHEL and OpenShift installations through user-friendly graphical web interfaces and Redfish HTTP/REST APIs. The result is a streamlined deployment process with greater reliability that empowers your datacenter to operate at a higher efficiency.
Whether you’re scaling workloads, compute offloading, or enhancing security, the SX904 with Red Hat’s platform of hybrid cloud technologies empowers your data center to operate more efficiently, more smoothly and at scale.
