Red Hat Satellite is a systems management solution that can help an organization deploy, configure and maintain systems across multi-cloud environments and on-premises environments. Satellite provisions, monitors and remotely manages Red Hat Enterprise Linux deployments in a single centralized tool.

JFrog Artifactory is a universal repository manager for binary life cycle management of artifacts, providing end-to-end management of artifacts throughout the software lifecycle process.

The purpose of this post is to show how Artifactory’s repository management helps organize and distribute Satellite’s life cycle management capabilities to downstream layers to keep Enterprise Linux systems running with consistent packages across the enterprise.

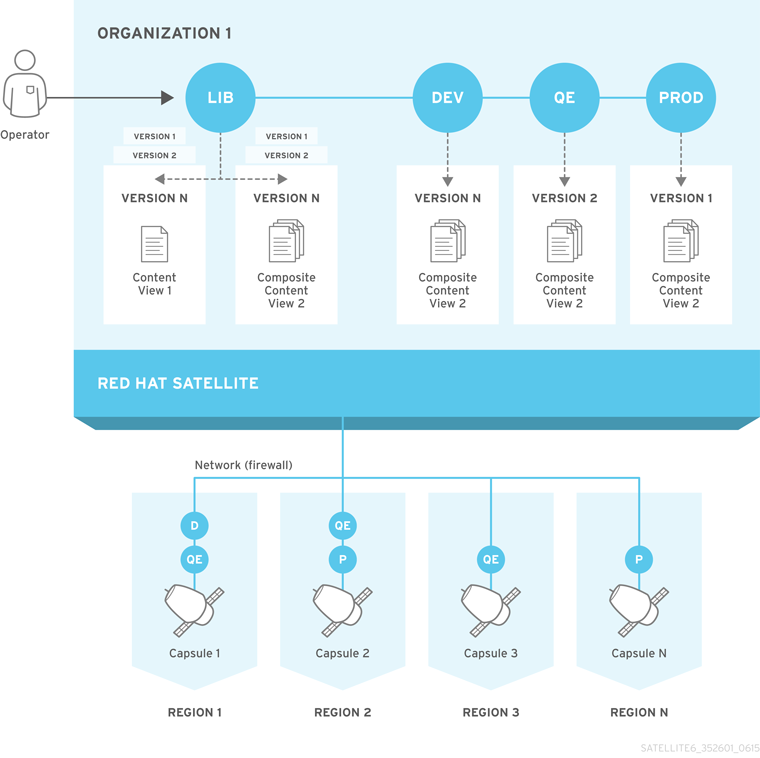

In Satellite, one could define a library of content from external sources for an Organization. Content views can be created as subsets of content from the Library. One can publish and promote content views into lifecycle environments - typically dev, QA and Production.

Figure 1.In Artifactory, we need to define remote repositories mapping to each lifecycle environment. For example: Define an Artifactory remote repository called "dev-rpm-remote-dc" which corresponds to the dev lifecycle environment.

Steps to combine Red Hat Satellite and JFrog Artifactory

Let's walk through the steps you need to follow to set this up. The post assumes you already have an up-to-date version of Red Hat Satellite and JFrog Artifactory. (The post is based around JFrog’s Artifactory version 7.21.)

Create an Organization Debug Certificate

To create a debug certificate for an organization, complete the following steps:

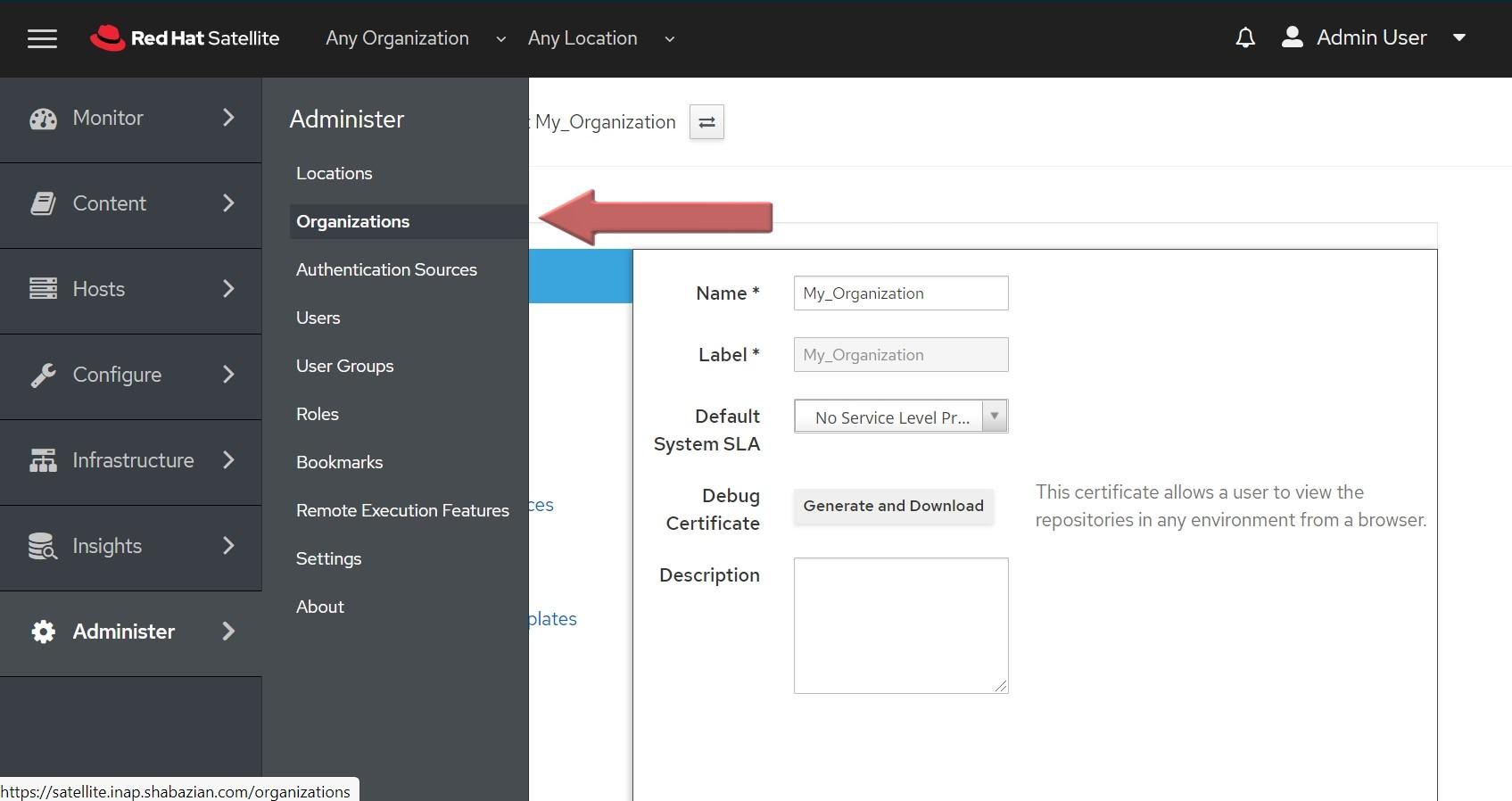

1. In the Satellite web UI, navigate to Administer > Organizations
Figure 2.

2. Select an organization that you want to generate a debug certificate for

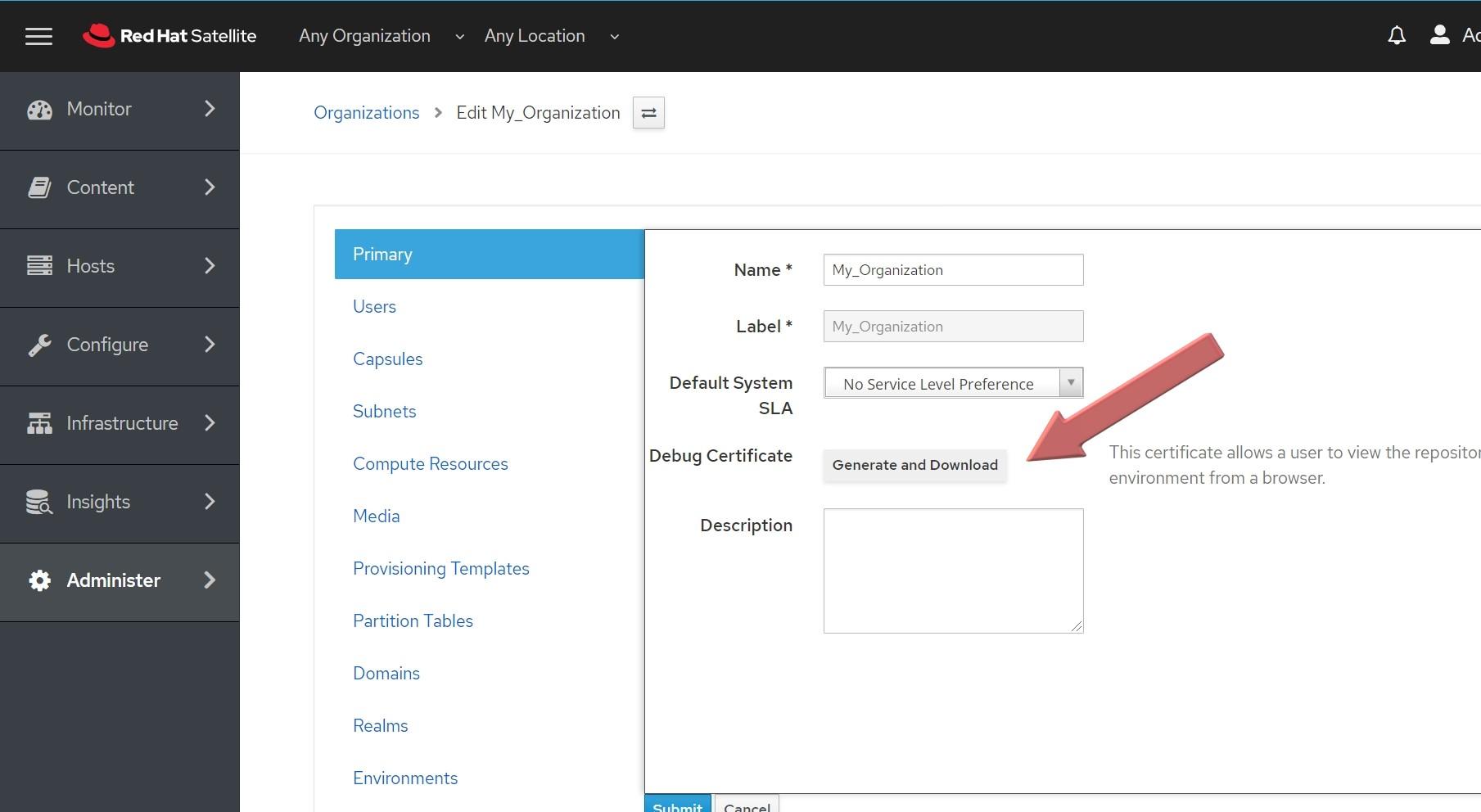

3. Click Generate and Download

Figure 3.

4. Save the certificate file in a secure location

Gather the Satellite URL for the lifecycle environment you wish to add:

Procedure

Log into a system that is registered to the Satellite server and connected to the Lifecycle Environment you wish to add to Artifactory, and either manually assemble the URL or use the script below to retrieve the URLs.

Manual method:

1. Start with the URLs listed in /etc/yum.repos.d/redhat.repos

2. Replace $releasever with the value of: rpm -q --provides rpm -qf /etc/redhat-release | grep releasever

3. Replace $basearch with the value of: uname -i

Script:

You can run this script to automatically generate URLs for your lifecycle environment:

curl -s https://raw.githubusercontent.com/cshabazian/Get-Satellite-URLs/main/Get_Satellite_URLs.sh | bash

Add the Satellite Certificate to Artifactory:

Procedure

1. In the Artifactory web UI, navigate to SERVICES > Artifactory and select Certificates
Figure 4.

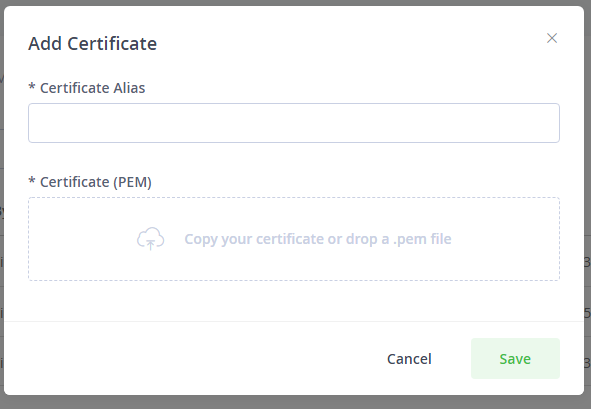

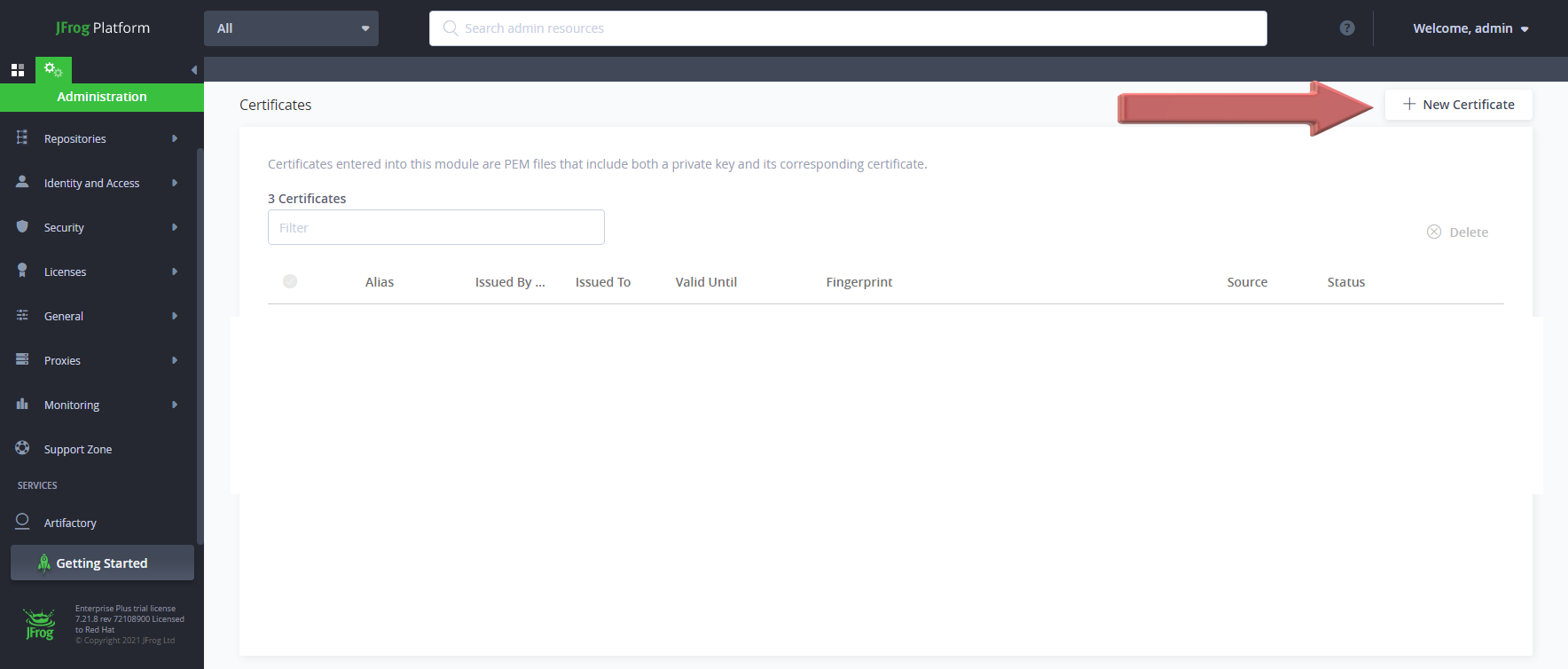

2. Click + New Certificate
Figure 5.

3. Give this certificate a recognizable alias such as Organization Satellite Certificate and drag and drop the certificate generated above into the Certificate box and click Save
Figure 6.

Restart Artifactory server process for certificates to be trusted:

Procedure

1. Login to the Artifactory server and run as root:

systemctl restart artifactory

Add the repository to Artifactory:

Procedure

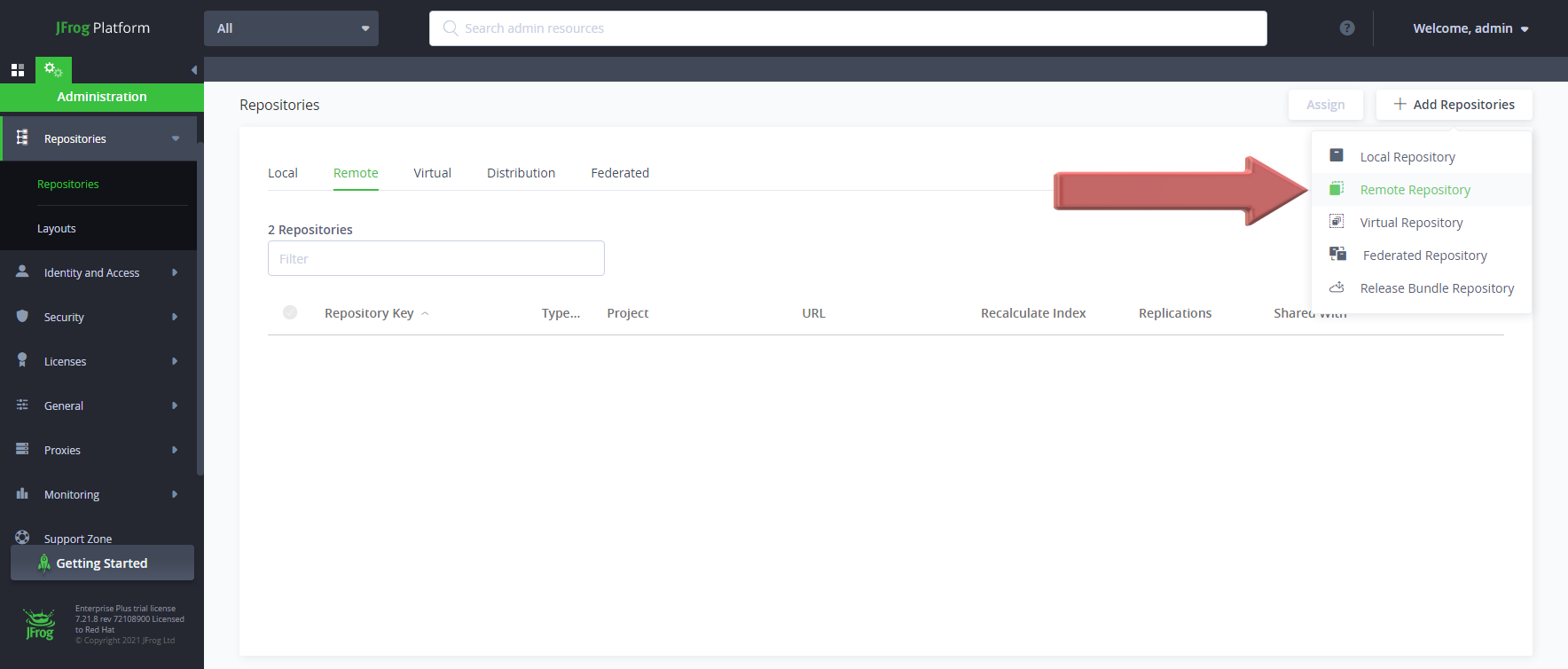

1. In the Artifactory web UI, navigate to Repositories > Repositories, click + Add Repositories, and select Remote Repository

Figure 6.

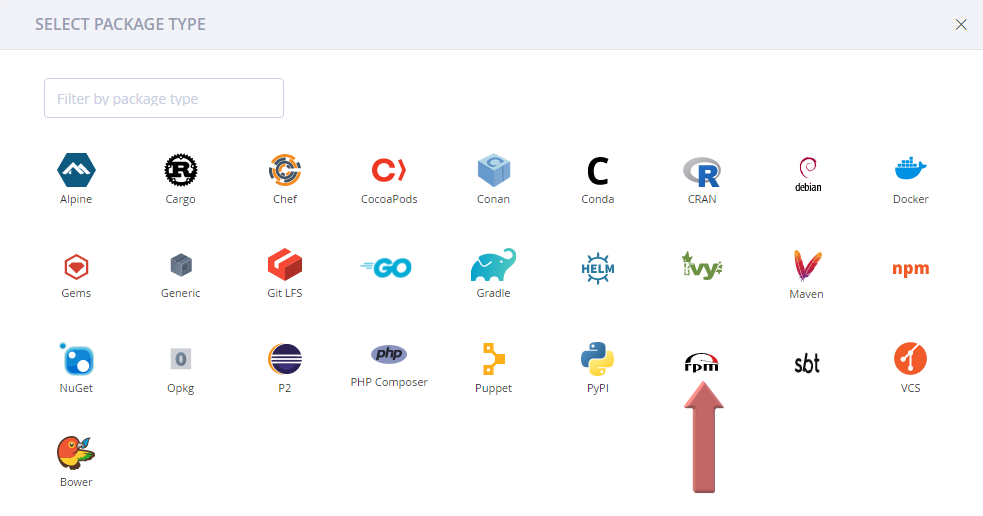

2. In the Package Type dialog that pops up, select RPM
Figure 7.

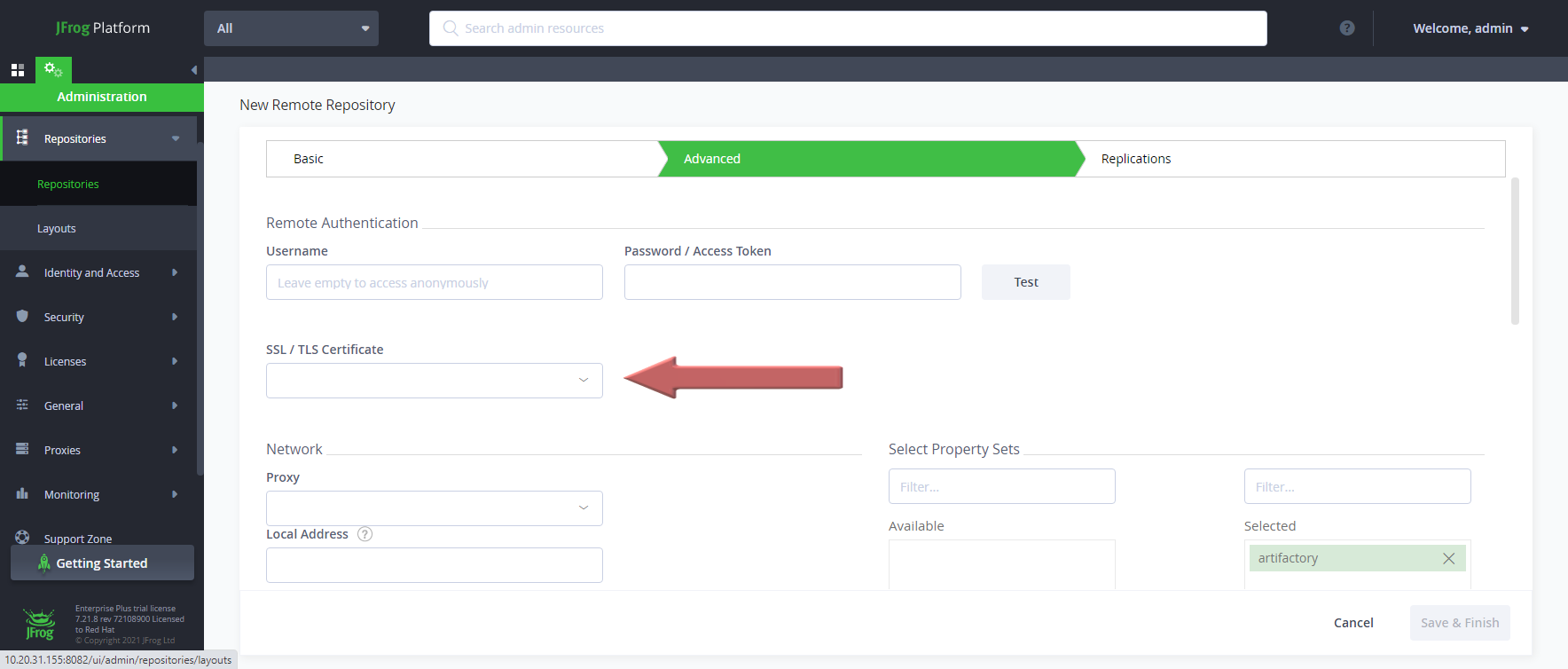

3. Select Advanced options and in SSL / TLS Certificate, select the certificate you loaded in the previous steps

Figure 8.

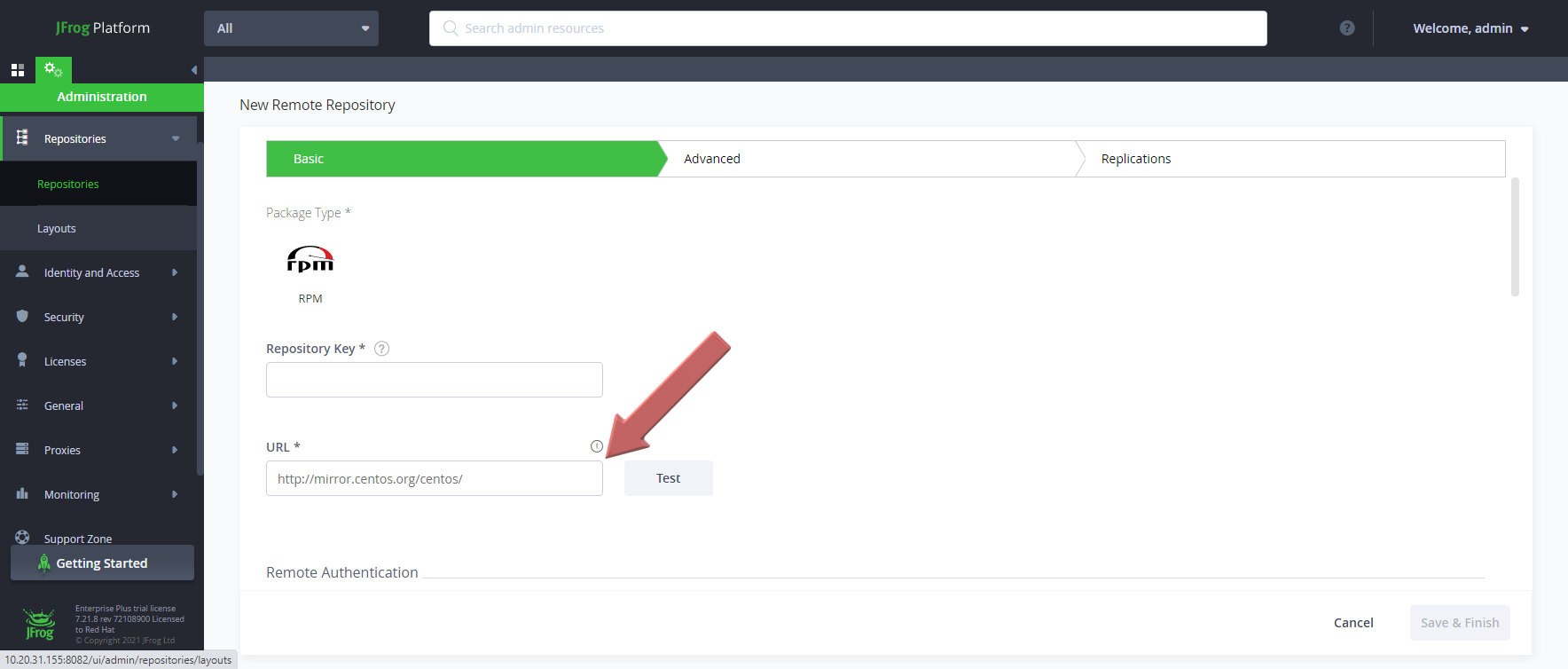

4. Select Basic options, and in the URL box, paste the URL you previously gathered and click Test to ensure everything is setup correctly, Then click Save & Finish
Figure 9.

Conclusion

In this post we’ve demonstrated how to define repositories in Artifactory as a backend to Satellite package distributions. We hope you’ll be able to take these basic steps and leverage them to do your own integrations between JFrog’s Artifactory version 7.21 and Red Hat Satellite version 6.x.

If you have questions about our proposed integration, or if you’re just getting started on your Red Hat and JFrog journey, find out more at JFrog.com or try Artifactory out for yourself on OpenShift.


Special thanks to Chip Shabazian, Red Hat Senior Platform Technical Account Manager, who made a major contribution to the writing of and technical review of this post, and the work to bring these products together to solve customer problems.
