Introduction

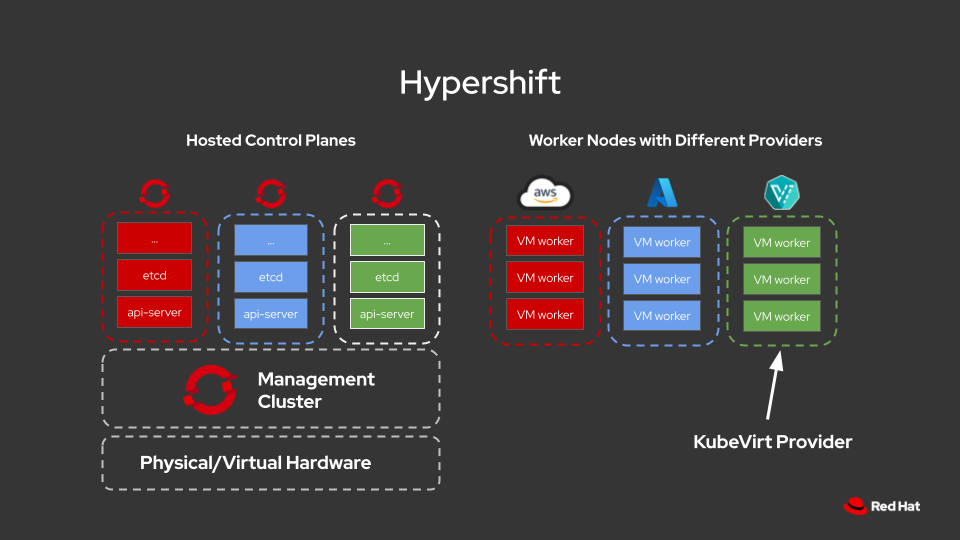

Hosted control planes for Red Hat OpenShift with the KubeVirt provider makes it possible to host OpenShift tenant clusters on bare metal machines at scale. It can be installed on an existing bare metal OpenShift cluster (OCP) environment allowing you to quickly provision multiple guest clusters using KubeVirt virtual machines. The current model allows running hosted control planes and KubeVirt virtual machines on the same underlying base OCP cluster. Unlike the standalone OpenShift cluster where some of the Kubernetes services in the control plane are running as systemd services, the control planes that HyperShift deploys are just another workload which can be scheduled on any available nodes placed in their dedicated namespaces. This post will show the detailed steps of installing HyperShift with the KubeVirt provider on an existing bare metal cluster and configuring the necessary components to launch guest clusters in a matter of minutes.
Please note that the support status of this provider is still in dev preview and it will be officially supported in a future release.
Benefits
The list below highlights the benefits of using HyperShift KubeVirt provider:
- Enhance resource utilization by packing multiple hosted control planes and hosted clusters in the same underlying bare metal infrastructure.
- Strong isolation by separating hosted control planes and guest clusters.
- Reduce cluster provision time by eliminating baremetal node bootstrapping process.
- Manage multiple different releases under the same base OCP cluster
Cluster Preparation
OCP 4.12.0 is running as the underlying base OCP cluster on top of 6 bare metal nodes (3 masters + 3 workers). Required operators and controllers are listed as follows:
- OpenShift Data Foundation (ODF) using local storage devices
- OpenShift Virtualization
- MetalLB
- Multicluster Engine
- Cluster Manager
- HyperShift
The list of required operators might vary depending on your specific environment. The following sections cover the detailed configuration and some explanation of each operator and controller, the corresponding installation link is inserted in each section.
OpenShift Data Foundation
In our case, OpenShift Data Foundation (ODF) with local storage devices is used as the default software defined storage to persist the guest cluster etcd pods and VM workers.
After completing the installation guide and creating the corresponding storage system, you should be able to examine the operators installed and the storage classes managed by ODF:
[root@e24-h21-740xd ~]# oc get csv -n openshift-storage
NAME DISPLAY VERSION REPLACES PHASE
mcg-operator.v4.12.0 NooBaa Operator 4.12.0 Succeeded
ocs-operator.v4.12.0 OpenShift Container Storage 4.12.0 Succeeded
odf-csi-addons-operator.v4.12.0 CSI Addons 4.12.0 Succeeded
odf-operator.v4.12.0 OpenShift Data Foundation 4.12.0 Succeeded
[root@e24-h21-740xd ~]# oc get sc
NAME PROVISIONER RECLAIMPOLICY VOLUMEBINDINGMODE ALLOWVOLUMEEXPANSION AGE
lvset kubernetes.io/no-provisioner Delete WaitForFirstConsumer false 23m
ocs-storagecluster-ceph-rbd openshift-storage.rbd.csi.ceph.com Delete Immediate true 17m
ocs-storagecluster-ceph-rgw openshift-storage.ceph.rook.io/bucket Delete Immediate false 21m
ocs-storagecluster-cephfs openshift-storage.cephfs.csi.ceph.com Delete Immediate true 17m
openshift-storage.noobaa.io openshift-storage.noobaa.io/obc Delete Immediate false 14m
Once ODF is setup, annotate a default storage class for HyperShift to persist VM workers and guest cluster etcd pods:
oc patch storageclass ocs-storagecluster-ceph-rbd -p '{"metadata": {"annotations":{"storageclass.kubernetes.io/is-default-class":"true"}}}'
Check if the storage class is labeled as default:
[root@e24-h21-740xd ~]# oc get sc | grep ocs-storagecluster-ceph-rbd
ocs-storagecluster-ceph-rbd (default) openshift-storage.rbd.csi.ceph.com Delete Immediate true 20m
OpenShift Virtualization
OpenShift Virtualization Operator is an add-on to OCP that allows you to run and manage virtual machines alongside pods. HyperShift with the KubeVirt provider allows you to run guest cluster components using KubeVirt virtual machines. Once you installed the operator and created HyperConverged Object, you should be able to see the following output:
[root@e24-h21-740xd ~]# oc get csv -n openshift-cnv
NAME DISPLAY VERSION REPLACES PHASE
kubevirt-hyperconverged-operator.v4.12.0 OpenShift Virtualization 4.12.0 kubevirt-hyperconverged-operator.v4.11.1 Succeeded
MetalLB
Metallb is recommended as the network load balancer for bare-metal clusters. Once installation is complete, create the MetalLB instance using the following yaml:
oc create -f - <<EOF
apiVersion: metallb.io/v1beta1
kind: MetalLB
metadata:
name: metallb
namespace: metallb-system
EOF
An address pool needs to be allocated. In our case, dnsmasq is used, you should be able to see the allocated IP range at /etc/dnsmasq.d/ocp4-lab.conf, please choose a free range and apply the following yaml:
oc create -f - <<EOF
apiVersion: metallb.io/v1beta1
kind: IPAddressPool
metadata:
name: metallb
namespace: metallb-system
spec:
addresses:
- 192.168.216.32-192.168.216.122
EOF
Once IP address pool is created, we can advertise the address pool using L2 protocol:
oc create -f - <<EOF
apiVersion: metallb.io/v1beta1
kind: L2Advertisement
metadata:
name: l2advertisement
namespace: metallb-system
spec:
ipAddressPools:
- metallb
EOF
Multicluster Engine
Multicluster engine (MCE) is one of the core components of HyperShift. Make sure to install 2.2.0+ in order to launch 4.12 guest clusters. Once the installation completes, you should be able to see the following output:
[root@e24-h21-740xd hypershift]# oc get csv -n multicluster-engine
NAME DISPLAY VERSION REPLACES PHASE
multicluster-engine.v2.2.0 multicluster engine for Kubernetes 2.2.0 Succeeded
Apply the following yaml to create a MulticlusterEngine instance:
oc apply -f - <<EOF
apiVersion: multicluster.openshift.io/v1
kind: MultiClusterEngine
metadata:
name: multiclusterengine-sample
spec: {}
EOF
Since HyperShift with the KubeVirt provider is in dev preview, the functionality is not enabled by default. Apply the following patch to allow the hypershift addon to be installed in a subsequent step:
oc patch mce multiclusterengine-sample --type=merge -p '{"spec":{"overrides":{"components":[{"name":"hypershift-preview","enabled": true}]}}}'
Cluster Manager
The local-cluster ManagedCluster allows the MCE components to treat the cluster it runs on as a host for guest clusters. Note that the creation of this object might fail initially. This failure occurs if the MultiClusterEngine is still being initialized and hasn’t registered the “ManagedCluster” CRD yet. It might take a few minutes of retrying this command before it succeeds.
oc apply -f - <<EOF
apiVersion: cluster.open-cluster-management.io/v1
kind: ManagedCluster
metadata:
labels:
local-cluster: "true"
name: local-cluster
spec:
hubAcceptsClient: true
leaseDurationSeconds: 60
EOF
HyperShift
Apply the following yaml to enable HyperShift operator within the local cluster:
oc apply -f - <<EOF
apiVersion: addon.open-cluster-management.io/v1alpha1
kind: ManagedClusterAddOn
metadata:
name: hypershift-addon
namespace: local-cluster
spec:
installNamespace: open-cluster-management-agent-addon
EOF
The hypershift operator pods can be viewed within the “hypershift” namespace. To verify the operator pod in running in this namespace:
[root@e24-h21-740xd ~]# oc get pods -n hypershift | grep "operator.*Running"
operator-78c8bc5898-c47rm 1/1 Running 0 3m54s
Ingress wildcard routes are required since the guest cluster's base domain will be a subdomain of the infra cluster's `*apps` A record:
oc patch ingresscontroller -n openshift-ingress-operator default --type=json -p '[{ "op": "add", "path": "/spec/routeAdmission", "value": {wildcardPolicy: "WildcardsAllowed"}}]'
Demo
The following sections will take you through the steps of:
- Build HyperShift Client
- Configure Environment Variables
- Create HyperShift KubeVirt Hosted Cluster
- Create Ingress Service
- Create Ingress Route
- Examine Hosted Cluster
Build HyperShift Client
To build the HyperShift client binary. Use the following command to build the CLI tool within a pod:
podman run --rm --privileged -it -v \
$PWD:/output docker.io/library/golang:1.18 /bin/bash -c \
'git clone https://github.com/openshift/hypershift.git && \
cd hypershift/ && \
make hypershift && \
mv bin/hypershift /output/hypershift'
The binary will be placed under the $PWD directory, move the binary to /usr/local/bin which should be included in the $PATH environment variable:
sudo mv $PWD/hypershift /usr/local/bin
Configure Environment Variables
The pull secret is needed for pods accessing images from the registry. Make sure to replace the PULL_SECRET variable with a path to your pull secret file:
export KUBEVIRT_CLUSTER_NAME=kv-00
export PULL_SECRET="/path/to/pull-secret"
Create HyperShift KubeVirt Hosted Cluster
Use the following command to create a node pool of 2 workers and the guest cluster playload version can be specified by `--release-image`. Starting from 4.12.2, a default ingress passthrough feature is added, we no longer need to create ingress services and routes manually.
hypershift create cluster \
kubevirt \
--name $KUBEVIRT_CLUSTER_NAME \
--node-pool-replicas=2 \
--memory '8Gi' \
--pull-secret $PULL_SECRET \
--release-image=quay.io/openshift-release-dev/ocp-release@sha256:382f271581b9b907484d552bd145e9a5678e9366330059d31b007f4445d99e36
It takes some time for the VMs to be provisioned, you can use the following command to wait until the VM workers reach ready state:
oc wait --for=condition=Ready --namespace $KUBEVIRT_CLUSTER_NAMESPACE vm --all --timeout=600s
Once the VM workers are ready, we can generate the guest cluster kubeconfig file which is useful when we want to examine the guest cluster.
hypershift create kubeconfig --name="$KUBEVIRT_CLUSTER_NAME" > "${KUBEVIRT_CLUSTER_NAME}-kubeconfig"
Examine The Hosted Cluster
Once all the guest cluster operators are deployed successfully, the status of the Available column should be True and the PROGRESS column should be changed to Completed. We created three guest clusters with different releases just to show that it is possible to manage multi-version hosted clusters in HyperShift with the KubeVirt provider:
[root@e24-h21-740xd hypershift]# oc get hc -A
NAMESPACE NAME VERSION KUBECONFIG PROGRESS AVAILABLE PROGRESSING MESSAGE
clusters kv-00 4.12.2 kv-00-admin-kubeconfig Completed True False The hosted control plane is available
clusters kv-04 4.12.3 kv-04-admin-kubeconfig Completed True False The hosted control plane is available
clusters kv-05 4.12.4 kv-05-admin-kubeconfig Completed True False The hosted control plane is available
If we take a closer look, there is a dedicated namespace `clusters-kv-00` being created for the hosted control plane. Under this namespace, we should be able see control plane pods such as etcd and kube-api-server are running:
[root@e24-h21-740xd ~]# oc get pod -n clusters-kv-00 | grep 'kube-api\|etcd'
etcd-0 2/2 Running 0 47h
kube-apiserver-864764b74b-t2tcl 3/3 Running 0 47h
There are two virt-launcher pods for the KubeVirt virtual machines since we specified `node-pool-replicas=2`:
[root@e24-h21-740xd ~]# oc get pod -n clusters-kv-00 | grep 'virt-launcher'
virt-launcher-kv-00-j45fr-mt5lc 1/1 Running 0 2d1h
virt-launcher-kv-00-l7f27-fk9tj 1/1 Running 0 2d1h
To check the status of those two VMs:
[root@e24-h21-740xd ~]# oc get vm -n clusters-kv-00
NAME AGE STATUS READY
kv-00-j45fr 2d1h Running True
kv-00-l7f27 2d1h Running True
To examine our guest clusters, we need to have the oc tool pointing to the guest kubeconfig. From OCP’s perspective, these two virtual machines will be the worker nodes:
[root@e24-h21-740xd hypershift]# oc --kubeconfig kv-00-kubeconfig get nodes
NAME STATUS ROLES AGE VERSION
kv-00-j45fr Ready worker 2d1h v1.25.4+77bec7a
kv-00-l7f27 Ready worker 2d1h v1.25.4+77bec7a
We should also be able to see that there is a dedicated monitoring and networking stack for each guest cluster:
[root@e24-h21-740xd hypershift]# oc --kubeconfig kv-00-kubeconfig get pod -A | grep 'prometh\|ovn\|ingress'
openshift-ingress-canary ingress-canary-j4lq4 1/1 Running 0 2d1h
openshift-ingress-canary ingress-canary-zd28w 1/1 Running 0 2d1h
openshift-ingress router-default-68df75f88d-dszb2 1/1 Running 0 2d1h
openshift-monitoring prometheus-adapter-6fd546d669-c2dw6 1/1 Running 0 2d1h
openshift-monitoring prometheus-k8s-0 6/6 Running 0 2d1h
openshift-monitoring prometheus-operator-688459b4f4-45775 2/2 Running 0 2d1h
openshift-monitoring prometheus-operator-admission-webhook-849b6cd6bf-52rpq 1/1 Running 0 2d1h
openshift-ovn-kubernetes ovnkube-node-4hmgz 5/5 Running 4 (2d1h ago) 2d1h
openshift-ovn-kubernetes ovnkube-node-87nk7 5/5 Running 0 2d1h
Summary
We went through the detailed steps of installing and configuring necessary operators and controllers to set up HyperShift with the KubeVirt provider in an existing bare metal OCP cluster environment. We also demonstrated how to launch a hosted cluster using the HyperShift command line tool, examined where the hosted control planes pods are running and what components are being placed inside of guest clusters.
Future Work
Future work will cover the topics of:
- Persistent storage for pod running in the guest cluster.
- Different storage configurations for guest etcd pods.
- Isolate hosted control planes from nodes that are running worker VMs.
- Hosted cluster density scale testing.
