Deep learning performance on Red Hat OpenShift with Supermicro

Abstract

In this whitepaper we run the AI workload, MLPerf Training v0.6, on the Red Hat® OpenShift® Container Platform with SUPERMICRO® hardware and compare it to the MLPerf Training v0.6  results published by NVIDIA. Red Hat OpenShift is a leading enterprise Kubernetes platform, powered by open source innovation and designed to make container adoption and orchestration simple.

This Supermicro and Red Hat reference architecture for OpenShift with NVIDIA GPUs describes how this AI infrastructure allows you to run and monitor MLPerf Training  v0.6 in containers based on Red Hat® Enterprise Linux®. To our knowledge, this is the first time Red Hat Enterprise Linux-based containers were created for MLPerf v0.6 and running on Supermicro Multi-GPU system and 100G network, as opposed to commonly used NVIDIA NGC containers and Nvidia DGX-1. In addition to excellent performance, we demonstrate how OpenShift provides easy access to high-performance machine learning model training when running on this SUPERMICRO reference architecture.

Executive Summary

AI infrastructure is increasingly requiring higher performance computing. Companies are creating and training increasingly complex deep learning neural networks, or DNNs, in their datacenters. These DNNs are getting a lot of attention because they can outperform humans at classifying images and can beat the world’s best Go player. Training DNNs is very compute-intensive so it is worthwhile to reduce training times with hardware accelerators and software tuning. Last year a group of researchers from industry and universities developed MLPerf, a suite of compute intensive AI benchmarks representing real world AI workloads, for measuring performance of AI infrastructure. In Supermicro’s Cloud Center of Excellence (CCoE) in San Jose, CA, we created a reference architecture running Red Hat OpenShift Container Platform software and ran the latest version of MLPerf Training to assess its performance relative to published results from NVIDIA.

The Red Hat/Supermicro MLPerf Training v0.6 benchmark results closely match the NVIDIA DGX-1 closed division published results (within -6.13% to +2.29%; where negative means slower, and positive values are faster than the NVIDIA results). This outcome demonstrates that application containerization provides the benefit of software portability, improved collaboration, and data reproducibility without significantly affecting performance.

Solution Reference Architecture

The Supermicro Red Hat OpenShift Deep Learning solution is based on industry-leading GPU servers with the latest Intel® Xeon® processors, NVIDIA® Volta® GPUs, NVLink technology, making it an ultimate powerhouse for all your AI needs. By incorporating Supermicro’s BigTwin as a fundamental building block for OpenShift with Supermicro’s GPU servers, this solution becomes one of the industry leading containerized solutions for AI and Deep Learning. Partnered with NVIDIA, the reference architecture features the latest NVIDIA GPUs. Each compute node utilizes NVIDIA® Tesla® V100 GPUs for maximum parallel compute performance resulting in reduced training time for Deep Learning workloads. In addition, this solution presents a scale-out architecture with 10G/25G/100G networking options that is scalable to fit future growth.


image container Figure 1: Hardware components of the stack which ran the MLPerf Training v0.6 benchmark described in this white paper.


Solution Building Blocks

Supermicro BigTwin™

  • Performance: Dual Socket P (LGA 3647) support 2nd Gen. Intel® Xeon® ScalableProcessors, 24 DIMMs; up to 6TB 3DS ECC, DDR4-2933MHz† RDIMM/LRDIMM, Supports Intel® Optane™ DCPMM; 24 DIMMs; up to 6TB 3DS ECC DDR4-2933MHz RDIMM/LRDIMM, Supports Intel® Optane™ DCPMM.
  • Density: High density with up to 4 hot swappable nodes in a 2U form factor with flexible and robust IO options—1G, 10G, 25G, or 100G Ethernet or 100G InfiniBand, and up to 2 additional low-profile PCI-E 3.0 x16 expansion slots per node.

  • Efficiency: Designed with power and cost efficiency in mind, the BigTwin™ reduces power consumption with shared cooling and power design, leveraging redundant 2600W/2200W high efficiency (96%) power supplies. (Full redundancy based on configuration and application load)

image container Figure 2: Supermicro BigTwin™: SYS-2029BT-HNC1R

Supermicro GPU Optimized SuperServer

  • High Performance and Low Latency: Dual Socket P (LGA 3647) support, 2nd Gen. Intel® Xeon® Scalable processors, 24 DIMMs; up to 6TB 3DS ECC DDR4-2933MHz† RDIMM/LRDIMM, Supports Intel® Optane™ DCPMM, 4 PCI-E 3.0 x16 (LP), GPU tray for GPU Direct RDMA, 2 PCI-E 3.0 x16 (LP, CPU tray).
  • GPU Optimization: Multi-GPU optimized thermal designs for highest performance and reliability, advanced GPU interconnect options for best efficiency and lowest latency, leading GPU architectures including NVIDIA® with NVLink™ and NVSwitch™. Highest parallel peak performance with up to 8 Tesla V100 GPUs. Best in class GPU-to-GPU bandwidth with a maximum speed of 300GB/s (NVLINK).
  • Storage and Efficiency: High performance storage options with - 16 Hot-swap 2.5" SAS/SATA drives (Optional 8x NVMe drives supported), 2 NVMe based M.2 SSD. Designed for power efficiency and optimized to prevent overheating due to GPU workload- 8x 92mm cooling fans, 8 x 2200W Redundant (2+2) Power Supplies; Titanium Level (96%+).

image container Figure 3: Supermicro GPU Optimized SuperServer: SYS-4029GP-TVRT



NVIDIA Tesla® V100 GPU

  • New Streaming Multiprocessor (SM) Architecture: New Tensor Cores designed specifically for deep learning deliver up to 12x higher peak TFLOPS for training and 6x higher peak TFLOPS for inference.
  • Second-Generation NVIDIA NVLink™: NVLink provides significantly more performance for both GPU-to-GPU and GPU-to-CPU system configurations compared to using PCIe interconnects. Highspeed interconnect delivers higher bandwidth, more links, and improved scalability for multi-GPU and multiGPU/CPU system configurations.
image container Figure 4: Hybrid Cube Mesh NVLink Topology Source: NVIDIA website



  • Volta Optimized Software: New versions of deep learning frameworks such as Caffe2, MXNet, CNTK, TensorFlow, and others harness the performance of Volta to deliver dramatically faster training times and higher multi-node training performance. Voltaoptimized versions of GPU accelerated libraries such as cuDNN, cuBLAS, and TensorRT leverage the new features of the Volta GV100 architecture to deliver higher performance for both deep learning inference and High Performance Computing (HPC) applications. The NVIDIA CUDA Toolkit version 9.0 includes new APIs and support for Volta features to provide even easier programmability.

image container Figure 5: NVIDIA® Tesla® V100 SXM2 GPU


Table 1: Tested Hardware Configuration

Supermicro BigTwin (OpenShift Master Nodes)
  Part Number  Description  Capacity
Server SYS-2029BT-HNC1R 1 x BigTwin, 2U 4 nodes, performance
CPU P4X-CLX6248-SRF90 2 x CLX-SRV 6248 20C 2.5 GHz 27.5M 80T
Memory MEM-DR432L-SL03-ER26 4 x 32GB DDR4 2666MHz 128 GB
SSD HDS-I2T2SSDSC2KB480G7 2 x Intel S4500 480GB SSD   480 GB
NVMe HDS-IUN2SSDPE2KE020T7 3 x Intel P4600 2TB NVMe  6TB
AOC AOC-S25G-m2S 1 x AOC Mellanox, 2x SFP+ 25G ports 2
AOC-MH25G-m2S2TM 1 x SIOM, Mellanox, 2x RJ45 10G plus 2x SFP+ 25G ports
Supermicro BigTwin (OpenShift Infra Nodes)
   Part Number    Description  Capacity
CPU P4X-CLX6248-SRF90 2 x CLX-SRV 6248 20C 2.5 GHz 27.5M 80T
Memory MEM-DR432L-SL03-ER26 16 x 32GB DDR4 2666MHz 512 GB
SSD HDS-2TVMZ7LM960HMJP005 4 x 960 GB 2.5" SATA3 SSD 1 1.92 TB
AOC AOC-S25G-m2S 1 x AOC Mellanox, 2x SFP+ 25G ports
  AOC-MH25G-m2S2TM 1 x SIOM, Mellanox, 2x RJ45 10G plus 2x SFP+ 25G ports
Supermicro Ultra Server (OpenShift Bastion/ Load Balancer Node
Server 1029-TRT 1 x Ultra, 1U general server
CPU P4X-SKL5118-SR3GF 2 x Intel SkyLake 5118 12 cores, 2.3-3.2GHz 48T
Memory MEM-DR432L-SL02-ER26 4 x 32GB DDR4 2666MHz 128GB
HDD   1 x 960 GB 2.5" SATA3 SSD 960GB
AOC AOC-S25G-m2S 2 x AOC Mellanox, 2x SFP+ 25G ports
Supermicro GPU Server (OpenShift Compute Node)
Server SYS-4029GP-TVRT 1 x 4U GPU server, Up to 8 GPUs
CPU P4X-CLX6248-SRF90 2 x CLX-SRV 6248 20C 2.5 GHz 27.5M 80T
Memory MEM-DR432L-SL01-ER29 24 x 32GB DDR4 2933MHz 768GB
GPU   8 x NVIDIA Tesla V100 SXM2 32GB
HDD INTEL SSDSC2KG038T8 1 x Solid State Drives - SSD Intel SSD D3-S4610 Series (3.8TB, 2.5in SATA 6Gb/s, 3D2, TLC) 3.8TB
 AOC AOC-S25G-m2S   2 x AOC Mellanox, 2x SFP+ 25G ports

Table 2: Hardware Node Setup

Hardware Description  Functions  Qty
Supermicro BigTwin
(SYS-2029BT-HNC1R)
3 Master, 3 Infra, 2 App 2
Supermicro Ultra Server
(SYS-1029U-E1CRT)
1 Bastion/ Load Balancer  1
Supermicro GPU Server
(SYS-4029GP-TVRT)
1 App (GPU)  1
Supermicro 10G Ethernet Switch
(SSE-X3348TR)
Management, 10G
Interconnection
1
Supermicro 100G SDN Super Switch
(SSE-C3632S)
100G Interconnection 1
image container Figure 6: Network Diagram


Benchmark Suite

MLPerf Training is a broad benchmark suite for measuring the performance of AI and machine learning software frameworks, ML hardware platforms and ML cloud platforms. A consortium of AI community stakeholders from industry such as Facebook and Google, and university researchers from Harvard, UC Berkeley, Stanford, University of Illinois, University of Michigan and others, created the MLPerf benchmark suite. The goal of MLPerf Training is to give developers a way to evaluate reference architectures and the wide range of advancing ML frameworks. In July 2019 the MLPerf effort published its results for version 0.6 of the benchmark suite. The MLPerf Training benchmarking suite measures the time it takes to train machine learning models to a target level of quality. The MLPerf Training v0.6 benchmarks we ran on Red Hat OpenShift in the Supermicro lab perform human language translation and object detection. These models are deep neural networks trained in an iterative learning process by passing training data through them to adjust model weights and “learn” to translate language or detect objects in images.

Model training is the most computationally intensive step of the machine learning workflow. Because it can take days or weeks to train a model, it is important to reduce training time so that data scientists can innovate faster. Improvements in MLPerf Training results between v0.5 and v0.6 demonstrate how quickly AI infrastructure is improving. Model training is shown in Figure 7 in the context of the entire machine learning workflow.


image container Figure 7: Machine Learning Workflow showing model training component.
Benchmark Object Detection
(heavy weight)
Object Detection
(light weight)
Translation
(Recurrent)
Translation
(Non-Recurrent)
Data COCO 2017  COCO 2017  WMT English-
German
 WMT English-
German
Data Size 21GB 21GB 56GB 56GB
Model Mask R-CNN  SSD-ResNet34   GNMT  Transformer
Framework  PyTorch  PyTorch  PyTorch  PyTorch

Benchmark Results

Our MLPerf Training results (Figure 7), demonstrate that running Red Hat Enterprise Linux (RHEL)-based containers on Red Hat OpenShift Container Platform software and Supermicro hardware very closely matches the performance of the NVIDIA published results (Table 2). Nvidia’s published results are the bar we are striving to meet. Our timings are very similar to the NVIDIA published results; within -6.13% to +2.29%, where negative means slower, and positive values are faster than the NVIDIA results. For the longer running Mask R-CNN model our results were faster, while in the three shorter benchmarks our results were slightly slower. Overall, this shows that containerizing the benchmarks did not add significant overhead. One explanation for our comparable results is that containers add very little overhead, because essentially a container is just a process restricted to a private root filesystem and process namespace. Other possible reasons for the differences include slightly different software versions or hardware differences. For this paper we performed four of the six MLPerf Training v0.6 benchmarks. However, we did not have time to run the full suite of experiments needed to formally submit these results to the MLPerf consortium, hence our results are unverified by the MLPerf consortium.

Our logs are available at our GitLab site (https://gitlab.com/opendatahub/gpu-performance-benchmarks) and we have provided our best timings in comparison to Nvidia’s formal closed submission. Our results demonstrate we can match bare-metal MLPerf Training v0.6 timings with containerized MLPerf Training v0.6 on OpenShift when running on Supermicro hardware, and that containerization and the OpenShift Kubernetes platform do not add significant overhead.

We quantify the deep learning training performance of Red Hat Enterprise Linux-based containerized MLPerf Training v0.6 benchmarking suite running on Supermicro Super Servers with NVIDIA V100 GPUs, and compare these results with NVIDIA published DGX-1 MLPerf Training v0.6 results. MLPerf Training workloads are performance-sensitive and GPUs are particularly effective at running them efficiently by exploiting the parallelism inherent in their neural network models. In our lab we ran containerized MLPerf Training v0.6 to demonstrate the efficiency of training real-world AI models on OpenShift with Supermicro GPU optimized Super Servers and BigTwin and Ultra server optimized for Red Hat OpenShift. We demonstrate that model training with Red Hat Enterprise Linux-based containers runs as efficiently on OpenShift and Supermicro hardware as NVIDIA published MLPerf Training v0.6 NGC container results. In Figure 8, we show NVIDIA timeseries metrics displayed in Grafana dashboards for easy understanding of performance data and identification of bottlenecks.

The advantage of containerizing these models is that it provides software portability, improved collaboration, and data reproducibility without significantly affecting performance. Using Red Hat Enterprise Linux containers to run AI/ML applications hides the plumbing from the user and allows them to concentrate on data science so they can innovate faster. AI models can be difficult for non-experts to install and train due to many dependencies on specific versions of libraries and compilers. Additionally, maintaining multiple runtime environments allowing models with different dependencies to run on the same cluster is a burden for the cluster administrator. Containerizing these models helps overcome these challenges.

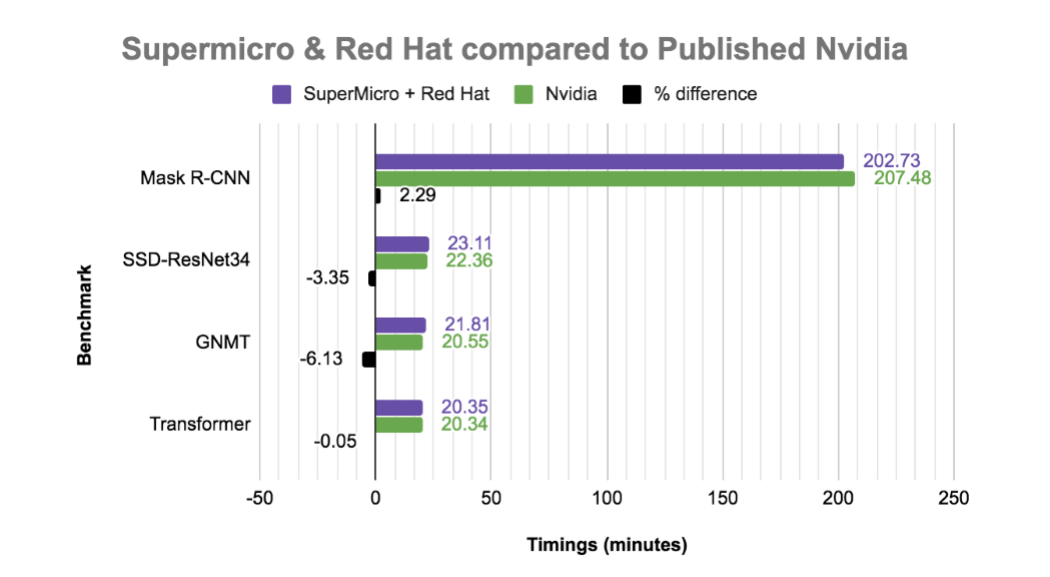

image container Figure 8: Benchmark results showing that MLPerf v0.6 on OpenShift was faster than the NVIDIA published timing for Mask R-CNN and only .05 to 6.13% slower for SDDResNet34, GMNT and Transformer.2


Table 4: MLPerf Training v0.6 Results

image container

Source: https://mlperf.org/training-results-0-6

Benchmark Hardware/Software Stack Details

This section provides background on similarities and differences between the Supermicro setup and the NVIDIA setup against which we are comparing our results.

The reference architecture in the Supermicro lab and the NVIDIA System lab are compared in Table 3.

Table 5: Hardware and Software stack details.

  Supermicro System NVIDIA System (published)
GPUs - memory 8 V100s - 32GB DGX-1 (8 V100s) - 32GB
Container base layer RHEL-based containers Ubuntu-based containers
Container orchestration OpenShift 3.11 NA
Operating System RHEL 7.6 Ubuntu 18.04
Framework PyTorch NVIDIA Release 19.05 PyTorch NVIDIA Release 19.05
CUDA and Cuda driver Cuda 10.1.168,
Cuda driver 418.67
Cuda 10.1.163,
Cuda driver 418.67
CUDNN CUDNN 7.5.0 CUDNN 7.6.0
NCCL NCCL 2.3.7 NCCL 2.4.6
MLPerf Training v0.6 v0.6
Prometheus Prometheus 2.12 NA
Grafana Grafana 6.3 NA

Preparing OpenShift for GPU workloads

The procedures to make containerized GPU workloads possible in OpenShift 3.11 are shown in the Appendix. These steps must be applied after you install Openshift 3.11 and before you run the containerized benchmarks in this experiment.

GPU-accelerated model training example

We containerized each of the MLPerf Training v0.6 benchmarks to demonstrate the benefits of running ML applications in containers on OpenShift and to show the speed of the Supermicro reference architecture. This section describes the procedure used to containerize and deploy the MLPerf Training benchmarks on OpenShift.

Steps 1 through 4 of this procedure builds the container image and deploys it on a GPUenabled node in OpenShift:

  1. Create a dockerfile for the model with the mlcc tool from Red Hat. We add statements to the dockerfile to build NVIDIA Pytorch from source and add a command to run each MLPerf Training benchmark script. The docker files we used in this experiment are available here: https://gitlab.com/opendatahub/gpu-performance-benchmarks
  2. Create a container image for each benchmark with the podman tool and the dockerfile created in the previous step. For example, to create the container image for benchmark Mask-R-CNN, run the following command with the dockerfile (maskrcnn_dockerfile) from gitlab link in step 1.


    # podman build -f maskrcnn_dockerfile -t rhel_maskrcnn_smc

  3. Push the image to Quay.io (note: you will use your own pathname for quay.io).


    # podman push quay.io/dfeddema/rhel_maskrcnn_smc

  4. Deploy a pod for the MLPerf Training benchmark which requires GPUs.

    # oc create -f maskrcnn.yaml


Figure 9 shows the yaml to deploy the Mask-R-CNN benchmark.

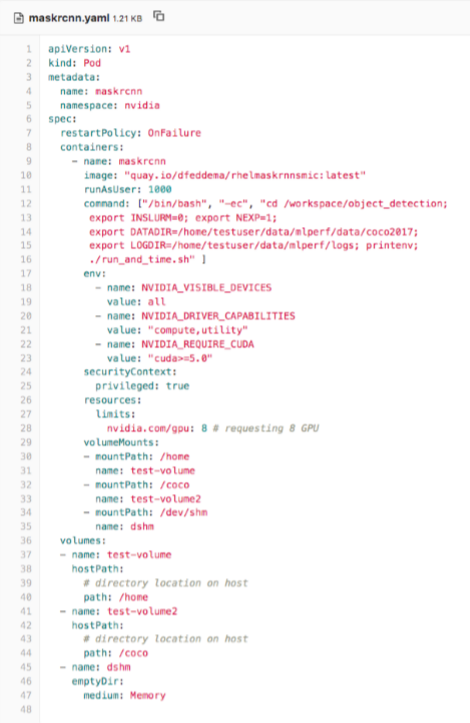

image container Figure 9: Yaml for Mask R-CNN from MLperf Training v0.6.


To view and download all code used in this benchmark see https://gitlab.com/opendatahub/gpu-performance-benchmark

Solution Benefits

  • Containers provide software portability, improved collaboration, and data reproducibility without affecting performance.
  • High-density compute architecture supporting Multi-GPUs accelerators and 100G high bandwidth/low latency network to minimize deep learning training time.
  • GPUs-accelerate model training by taking advantage of inherent parallelism in Neural Networks.
  • OpenShift provides built-in monitoring capability with Prometheus and Grafana and an easy-to-use graphical interface, described in the following “Monitoring Environment” section.

Monitoring Environment

We used Prometheus and Grafana to collect and display metrics for these experiments. Both Prometheus and Grafana are installed by default with OpenShift 3.11. We added an NVIDIA exporter, to export GPU metrics in Prometheus format. These GPU metrics were scraped by Prometheus and stored in its time series database. Prometheus is configured as a data source for Grafana which displays the metrics in time series format. We created Grafana dashboards to display the metrics we collected. JSON for the Grafana dashboards shown in Figures 10 through 12 is available in the open datahub performance gitlab repo.

At a glance this time series view of the GPU metrics allows you to see whether any of the GPUs were under-utilized during the model training run. You can click on any of the GPU labels in the legend at the bottom of the graph and see only metrics for that GPU.

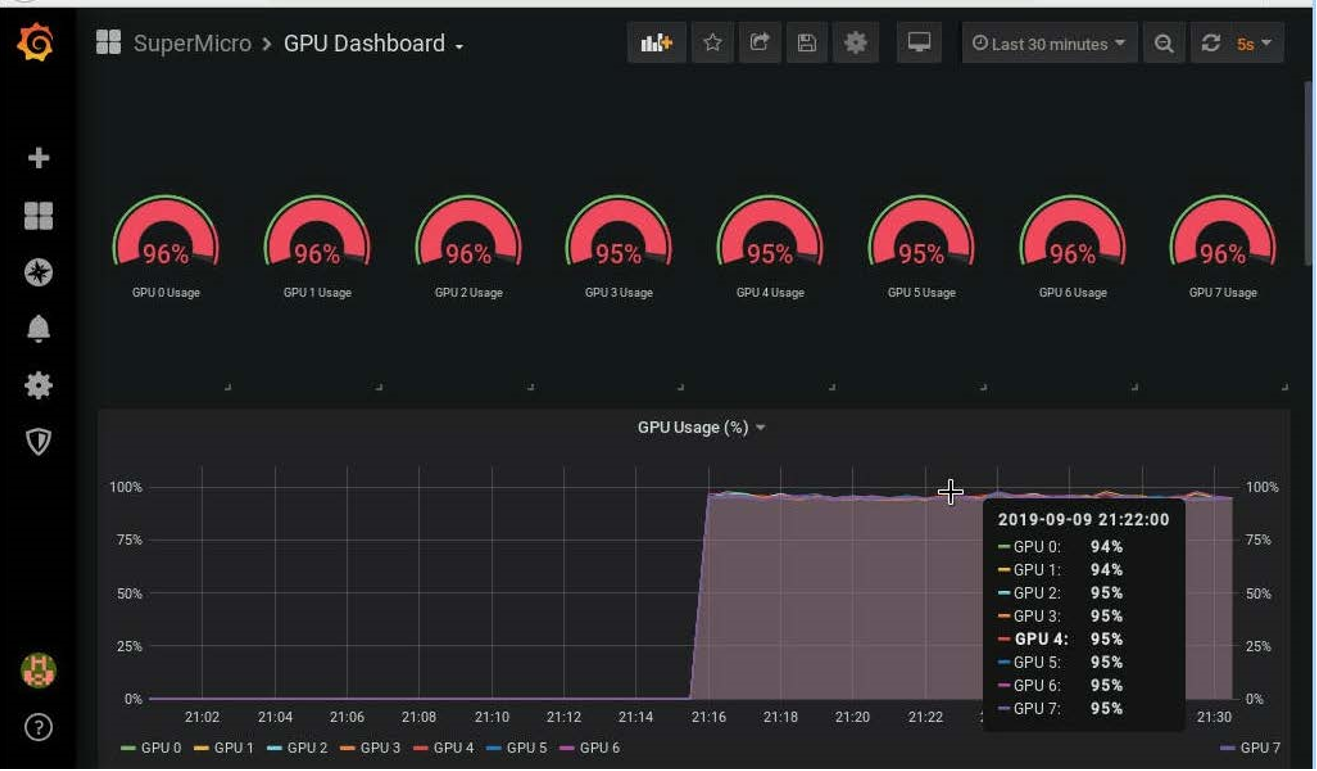

image container Figure 10: Monitoring GPU % Usage instant and time series


The dashboard in figure 11 monitors GPU memory usage for each GPU. You can tune your application for efficient use of GPU memory using this dashboard. For instance, when training a neural network, you can tune batch size for better utilization of GPU memory and view the outcome here. Batch size is a hyper-parameter that sets the number of training examples per iteration.


image container Figure 11: Monitoring GPU % used and Memory Usage


The dashboard in figure 12 monitors GPU temperature and power usage. You can use prometheus alerting to send an email, text, pagerduty or slack message if the temperature of one of your GPUs is above some threshold.


image container Figure 12: Monitoring GPU temperature and power usage


Conclusions and Future Work

In this paper we ran the AI workload MLPerf Training v0.6 to compare the performance of Supermicro hardware and Red Hat Enterprise Linux-based containers on OpenShift with NVIDIA MLPerf Training v0.6 published results. We were able to show that the Red Hat Enterprise Linux-based containers running on the OpenShift Container Platform and Supermicro hardware ran faster for the Mask R-CNN benchmark than NVIDIA’s MLPerf Training v0.6 results, and only slightly slower (0.5%-6%) for the shorter tests. Our GNMT timing was 6.13% slower which could have been due to the initial random seed used by the benchmark. Future work could include analysis of stability of GNMT for different random seeds.

For more information

APPENDIX

Installing the GPU device plug-in in OpenShift Container Platform

The following instructions were originally developed by Zvonko Kaiser (Red Hat Inc).

Host Preparation

NVIDIA drivers for Red Hat Enterprise Linux must be installed on the host with GPUs as a prerequisite for using GPUs with OpenShift. To prepare the GPU-enabled host we begin by installing NVIDIA drivers and the NVIDIA container enablement. The following procedures will make containerized GPU workloads possible in Red Hat OpenShift 3.11.

Part 1: NVIDIA Driver Installation

Step 1: NVIDIA drivers are compiled from source. The build process requires the kernel-devel package to be installed.

# yum -y install kernel-devel-`uname -r`

The NVIDIA-driver package requires the DKMS package from EPEL (Extra Package for Enterprise Linux). DKMS is not supported or packaged by Red Hat. Work is underway to remove the NVIDIA driver requirement on DKMS for Red Hat distributions. DKMS can be installed from the Red Hat EPEL repository.

Step 2: Install the EPEL repository.

# yum install -y https://dl.fedoraproject.org/pub/epel/epel-release-latest-7.noarch.rpm

Step 3: Install the NVIDIA drivers. The newest NVIDIA drivers are located in the referenced repository.

# yum install -y https://developer.download.nvidia.com/compute/cuda/repos/rhel7/x86_64/cuda-repo-rhel710.0.130-1.x86_64.rpm

Step 4: Install Auxiliary tools and libraries contained in the following packages. This will also install the nvidia-kmod package, which includes the NVIDIA kernel modules.

# yum -y install nvidia-driver nvidia-driver-cuda nvidia-modprobe

Step 5: Remove the nouveau kernel module, (otherwise the NVIDIA kernel module will not load). The installation of the NVIDIA driver package will blacklist the driver in the kernel command line (nouveau.modeset=0 rd.driver.blacklist=nouveau video=vesa:off ), so that the nouveau driver will not be loaded on subsequent reboots.

# modprobe -r nouveau

Step 6: Load the NVIDIA module and the unified memory kernel modules.

# nvidia-modprobe && nvidia-modprobe -u

Step 7: Verify that the installation and the drivers are working. Extracting the name of the GPU can later be used to label the node in OpenShift.

# nvidia-smi --query-gpu=gpu_name --format=csv,noheader --id=0 | sed -e 's/ /-/g' Tesla-V100-SXM2-16GB

Adding the nvidia-container-runtime-hook

The version of docker shipped by Red Hat includes support for OCI runtime hooks. Because of this, we only need to install the nvidia-container-runtime-hook package. On other distributions of docker, additional steps may be necessary. See NVIDIA’s documentation for more information.

Step 1: install libnvidia-container and the nvidia-container-runtime repositories.

# curl -s -L https://nvidia.github.io/nvidia-container-runtime/centos7/nvidia-container-runtime.repo | tee /etc/yum.repos.d/nvidia-container-runtime.repo

Step 2: install an OCI prestart hook. The prestart hook is responsible for making NVIDIA libraries and binaries available in a container (by bind-mounting them in from the host). Without the hook, users would have to include libraries and binaries into each and every container image that might use a GPU. Hooks simplify management of container images by ensuring only a single copy of libraries and binaries are required. The prestart hook is triggered by the presence of certain environment variables in the container: NVIDIA_DRIVER_CAPABILITES=compute,utility.

# yum -y install nvidia-container-runtime-hook

This package will also install the config/activation files for docker/podman/cri-o. Beware that the hook json in the package will only work with cri-o >= 1.12 for crio-1.11 use the following json file:

# cat <<'EOF' >> /usr/share/containers/oci/hooks.d/oci-nvidia-hook.json
{

"hasbindmounts": true,
"hook": "/usr/bin/nvidia-container-runtime-hook",
"stage": [ "prestart" ]

}
EOF

Adding the SELinux policy module

To run NVIDIA containers contained and not privileged, we have to install an SELinux policy tailored for running CUDA GPU workloads. The policy creates a new SELinux type (nvidia_container_t) with which the container will be running.

Furthermore, we can drop all capabilities and prevent privilege escalation. See the invocation below to have a glimpse into how to start a NVIDIA container.

Next, install the SELinux policy module on all GPU worker nodes.

# wget https://raw.githubusercontent.com/zvonkok/origin-ci-gpu/master/selinux/nvidia-container.pp

# semodule -i nvidia-container.pp

Check and restore the labels on the node

The new SELinux policy heavily relies on the correct labeling of the host. Therefore, we must make sure that the required files have the correct SELinux label.

Step 1: Restorecon all files that the prestart hook will need.

# nvidia-container-cli -k list | restorecon -v -f -

Step 2: Restorecon all accessed devices.

# restorecon -Rv /dev

Step 3: Restorecon all files that the device plugin will need.

# restorecon -Rv /var/lib/kubelet

Everything is now set up for running a GPU-enabled container.

Verify SELinux and prestart hook functionality

To verify correct operation of driver and container enablement, try running a cuda-vector-add container. We can run the container with docker or podman.

# podman run --user 1000:1000 --security-opt=no-new-privileges --cap-drop=ALL \ --security-opt label=type:nvidia_container_t \ docker.io/mirrorgooglecontainers/cuda-vector-add:v0.1

# docker run --user 1000:1000 --security-opt=no-new-privileges --cap-drop=ALL \ --security-opt label=type:nvidia_container_t \ docker.io/mirrorgooglecontainers/cuda-vector-add:v0.1

If the test passes, the drivers, hooks and the container runtime are functioning correctly and we can move on to configuring Red Hat OpenShift.

Part 2: OpenShift 3.11 with the GPU Device Plugin

Install the NVIDIA device plugin. To schedule the device plugin on nodes that include GPUs, label the node as follows:

# oc label node <node-with-gpu> openshift.com/gpu-accelerator=true node "<node-with-gpu>" labeled

This label will be used in the next step.

Deploy the NVIDIA Device Plugin Daemonset

The next step is to deploy the NVIDIA device plugin. Note that the NVIDIA Device Plugin (and more generally, any hardware manufacturer’s plugin) is supported by the vendor, and is not shipped or supported by Red Hat.

Clone the following repository; there are several yaml files for future use.

# git clone https://github.com/redhat-performance/openshift-psap.git
# cd openshift-psap/blog/gpu/device-plugin

Here is an example daemonset (device-plugin/nvidia-device-plugin.yml) which will use the label we created in the last step so that the plugin pods will only run where GPU hardware is available.

Now create the NVIDIA device plugin daemonset.

# oc create -f nvidia-device-plugin.yml

Let’s verify the correct execution of the device plugin. You can see there is only one running since only one node was labeled in the previous step.

# oc get pods -n kube-system

NAME                           READY       STATUS           RESTARTS          AGE
nvidia-device-plugin-daemonset-s9ngg   1/1     Running     0       1m

Once the pod is running, let’s have a look at the logs.

# oc logs nvidia-device-plugin-daemonset-7tvb6 -n kube-system
2018/07/12 12:29:38 Loading NVML 2018/07/12 12:29:38 Fetching devices.
2018/07/12 12:29:38 Starting FS watcher.
2018/07/12 12:29:38 Starting OS watcher.
2018/07/12 12:29:38 Starting to serve on /var/lib/kubelet/device-plugins/nvidia.sock
2018/07/12 12:29:38 Registered device plugin with Kubelet

At this point the node itself will advertise the nvidia.com/gpu extended resource in its capacity:

# oc describe node <gpu-node> | egrep 'Capacity|Allocatable|gpu'

Capacity:
nvidia.com/gpu: 2
Allocatable:
nvidia.com/gpu: 2

Nodes that do not have GPUs installed will not advertise GPU capacity.

Deploy a pod that requires a GPU

Let’s run a GPU-enabled container on the cluster. We can use the cuda-vector-add image that was used in the host preparation step. Use the following file (device-plugin/cuda-vector-add.yaml) as a pod description for running the cuda-vector-add image in OpenShift. Note the last line requests one NVIDIA GPU from OpenShift. The OpenShift scheduler will see this and schedule the pod to a node that has a free GPU. Once the pod-create request arrives at a node, the Kubelet will coordinate with the device plugin to start the pod with a GPU resource.

First create a project that will group all of our GPU work.

# oc new-project nvidia

The next step is to create and start the pod.

# oc create -f cuda-vector-add.yaml

After a couple of seconds, the container finishes.

# oc get pods
NAME                                    READY    STATUS    RESTARTS    AGE
cuda-vector-add  0/1    Completed    0    3s
nvidia-device-plugin-daemonset-s9ngg   1/1   Running   0   9m

Check the logs for any errors. We are looking for Test PASSED in the pod logs.

# oc logs cuda-vector-add
[Vector addition of 50000 elements]
Copy input data from the host memory to the CUDA device
CUDA kernel launch with 196 blocks of 256 threads
Copy output data from the CUDA device to the host memory
Test PASSED
Done

This output is the same as when we ran the container directly using podman or docker. If you see a permission denied error, check to see that you have the correct SELinux label.
