Automate virtual machine deployment with Ansible: Design

A substantial Red Hat Virtualization (RHV) deployment in your data centers makes manual virtual machine (VM) creation inefficient. The bigger the RHV deployment is, the more essential an automation method to create VMs becomes.

In this series, I show you how to design and automate VM deployments by using Ansible. In addition, I provide two sample Ansible playbooks to help you get going. It's a lot of information, but I separated the article into three parts that are all available here on Enable Sysadmin. Part one (this article) covers the basic goals, design, and assumptions. Part two covers the automation process. Part three provides you with the two Ansible playbooks, as well as some troubleshooting tips.

Here in part one, I cover some fundamental design concepts and the goals for the automation project. These concepts include assumptions about available tools, software versions, etc. I also examine the environment within which you will execute your automation tasks.

Design

A single management point to automate VM creation simplifies the automation process. This design makes use of one Ansible server to automate two aspects of the deployment:

• VM creation using the RHVM API
• VM post configuration using SSH

This design achieves the following results:

• A secured automation chain using encrypted protocols, a different RHVM administrator username from the default admin username, and Ansible Vault to secure the passwords used in the automation process.
• A simple and manageable automation chain.

Assumptions

For simplicity, this article uses the following assumptions:

1. Red Hat Virtualization (RHV) version 4.3.
2. Ansible version 2.9 and the required packages are downloaded from the open-source upstream. Ansible Tower makes the automation process easier.
3. CentOS 7.x hosts the Ansible server.
4. A version control system, such as Git, is in place.
5. The automation chain uses templates with the cloud-init package pre-installed.
6. The VMs to be deployed are RHEL-based.

Note: the configuration of RHV, Ansible, Ansible Tower, CentOS, and Git are outside the scope of this article.

The post configuration tasks are examples. The specific tasks needed depend on the intended use of the VM itself. Modify the playbooks provided in part three to suit your needs.

Environment preparations

There are several aspects of Ansible-based deployments to configure before actually beginning the process. These aspects include preparing both RHV and Ansible for automated VM deployments.

Red Hat Virtualization

Few configurations are needed to set up the automation chain. It is a good practice to create a specific RHV administrator account rather than using the default local admin user.

The method for creating a new user with VM creation privileges depends on whether the Red Hat Virtualization Manager (RHVM) uses a central identity management system (i.e., IDM, Free IPA, or Active Directory) or local users.

Create a new local user (userame=ansible-user) with administrator privileges in RHVM by following the steps below.

Create the user account

First, connect to RHVM OS as a privileged user.

Next, use ovirt to create an ansible-user user account.

# ovirt-aaa-jdbc-tool user add ansible-user \
--attribute=firstName=Ansible\
--attribute=lastName=User

Finally, reset the password (in this example the password is redhat).

# ovirt-aaa-jdbc-tool user password-reset ansible-user --password=pass:redhat

Configure the account privileges

Now connect to RHVM and configure the new account's privileges.

First, log in to the RHVM GUI as a user with administrative privileges, and then move to Administration → Users.

Select Add from the menu on the right.

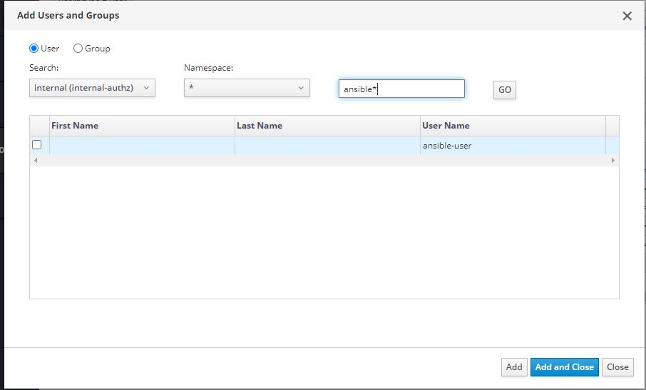

Next, in the search box, type ansible*. The newly-created user ansible* is displayed. Select Add and Close. The user is listed with the other user accounts.

To configure user privileges, double-click on the ansible-user user account.

Finally, in the new window, select the Permissions tab, and then choose Add System Permissions.

Select the proper permission, which in this case, is VMCreator.

Note: Check this link for the full built-in roles in RHV.

Ansible server

The Ansible server is a Centos 7.x-based server, with Python and pip installed.

Note: Python 2.7 and python2-pip are used in this article. However, Python 3.6 and python36-pip can be used. Upgrading Python is out of the scope of this article.

Use the following process to set up the Ansible server:

Install Ansible, Jinja2, and ovirt-engine-sdk-python by using pip.

# pip install ansible Jinja2 ovirt-engine-sdk-python

If you are using pip behind a proxy server, you may need to use the settings below.

# pip --proxy [user:passwd]proxy.server:port install ansible Jinja2 ovirt-engine-sdk-python

This list displays the minimum versions required.

ansible==2.9.9
Jinja2==2.11.2
ovirt-engine-sdk-python==4.4.3

Wrap up

At this point, the automated deployment environment is set up. You have the appropriate versions of CentOS, Ansible, Python, pip, and other software. You also have an administrator account in RHV specific to this project. Most important, you have a list of goals and expectations for what your new deployment process provides.

In the next article, I build on this configuration to provide flexible and efficient automation. Remember that part three includes two sample Ansible playbooks, too.

Continue with this series

Automate VM deployment with Ansible: Automation (Part 2)

Automate VM deployment with Ansible: The playbooks (Part 3)
