Red Hat OpenShift Service on AWS (ROSA) has three streams of logs: “Audit”, “Infrastructure” and “Application.” The different streams of logs are of interest to different people. For instance the “Audit”logs may be of interest to your Security and Compliance teams, while the “Application” logs may be of interest to an SRE team that is tasked with keeping applications working.

These logs are all viewable from the OpenShift Console or CLI, however in many enterprise use cases you may want to ship them to other systems or tools for further aggregation and analysis.

For example it’s very common to send the “Audit” logs to a Security Information and Event Management (SIEM) system.

OpenShift has several built-in ways to ship logs to another system, and many vendors also have plugins to read or extract logs from OpenShift. In this blog post we’ll explore the built-in Cluster Logging and Cluster Log Forwarding operators, and configure them to ship and store logs to S3 and visualize them with the LokiStack operator.

The instructions in this blog assume that you have a ROSA 4.11 (or higher) cluster already deployed. It is also deploying components to use minimal resources for the sake of demonstration.

Installing and Configuring the Logging Operators

Browse to the AWS S3 console and create a bucket named for your cluster in the same region as your cluster.

Browse to the AWS IAM Policy Console and create a policy

Create a Policy named rosa-loki-stack that contains the following permissions

{
  "Version": "2012-10-17",
  "Statement": [
       {
          "Effect": "Allow",
          "Action": [
              "s3:ListBucket",
              "s3:PutObject",
              "s3:GetObject",
              "s3:DeleteObject"
          ],
          "Resource": [
              "arn:aws:s3:::<bucket_name>",
              "arn:aws:s3:::<bucket_name>/*"
          ]
      }
  ]
}

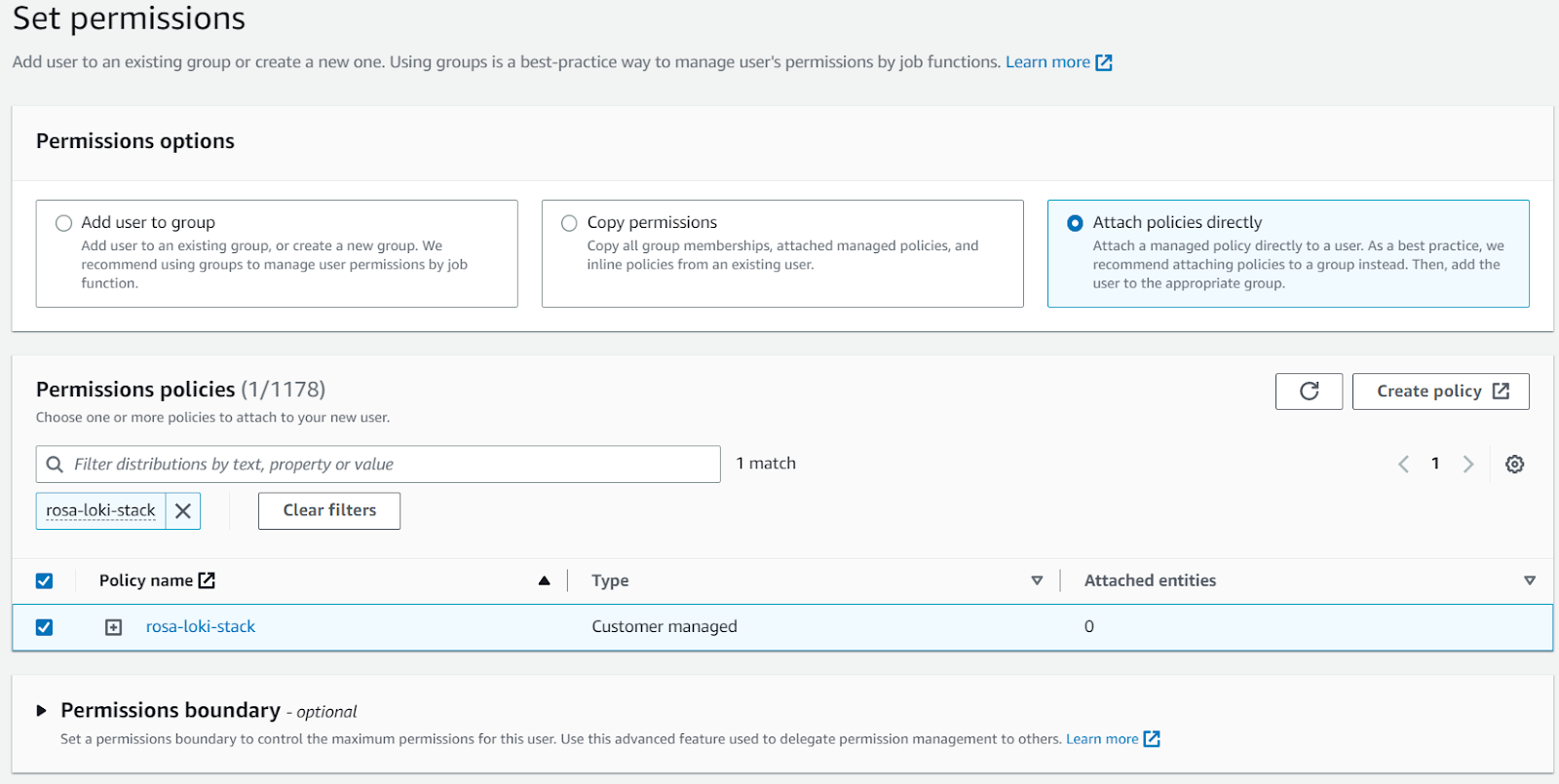

Create an IAM User named rosa-loki-stack and attach the new “rosa-loki-stack” policy to it.

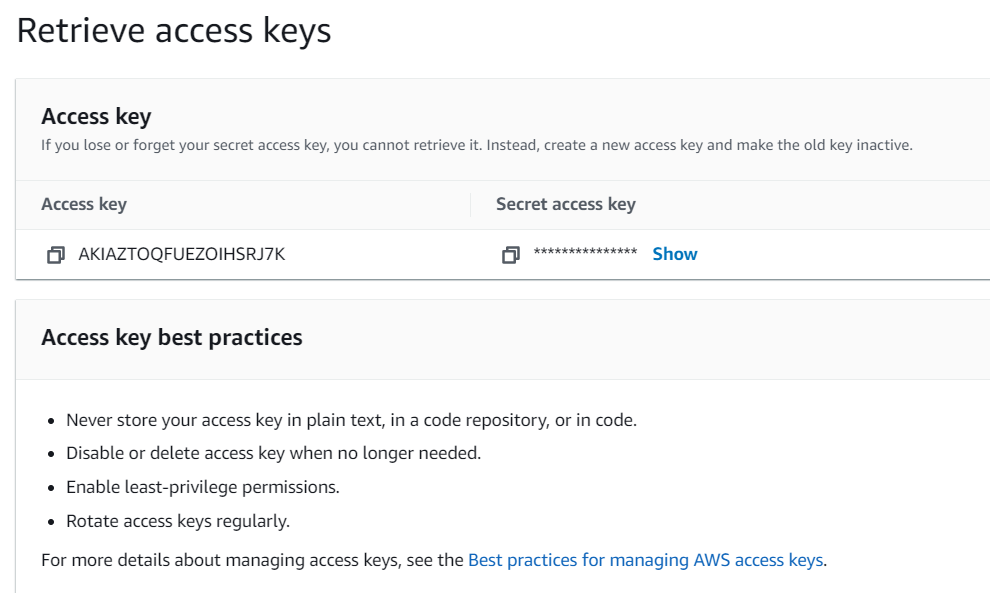

Create IAM Access keys for the new rosa-loki-stack user and paste the credentials to use later

Be sure you’re logged into the OpenShift Console (You can locate and log into your cluster via the OpenShift Cluster Manager Hybrid Cloud Console).

In the OpenShift Console (administrator tools) click Operators > OperatorHub

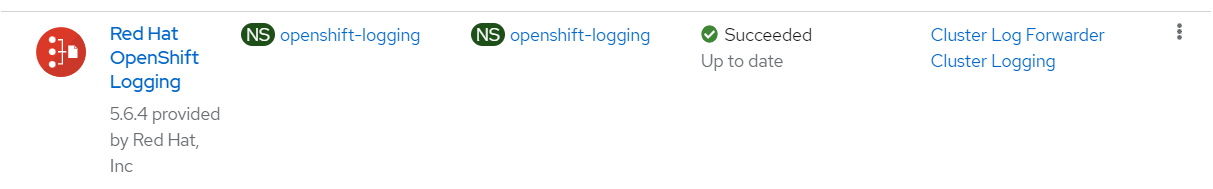

Install the “Red Hat OpenShift Logging” Operator (accept all defaults)

Install the “Loki” Operator (If multiple Operators are available, choose the Red Hat one, accept all defaults)

Click through the OpenShift menu Workloads > Secrets, set the Project to openshift-logging and select Create > From YAML

Paste in the following, ensuring you replace the values to match your environment and hit Create

apiVersion: v1
kind: Secret
metadata:
name: logging-loki-s3
namespace: openshift-logging
stringData:
access_key_id: <access_key_id>
access_key_secret: <access_key_secret>
bucketnames: s3-bucket-name
endpoint: https://s3.<region>.amazonaws.com
region: <region>

Next click to Operators > Installed Operators > Loki Operator

Click LokiStack / Create instance and pick YAML view, and paste in the following and hit Create.

apiVersion: loki.grafana.com/v1
kind: LokiStack
metadata:
name: logging-loki
namespace: openshift-logging
spec:
size: 1x.extra-small
storage:
  schemas:
  - version: v12
    effectiveDate: "2022-06-01"
  secret:
    name: logging-loki-s3
    type: s3
storageClassName: gp3
tenants:
  mode: openshift-logging



Next click to Operators > Installed Operators > Red Hat OpenShift Logging

Next Cluster Logging -> Create Instance and paste in the following and hit Create.

apiVersion: logging.openshift.io/v1
kind: ClusterLogging
metadata:
name: instance
namespace: openshift-logging
spec:
managementState: Managed
logStore:
  type: lokistack
  lokistack:
    name: logging-loki
collection:
  type: vector

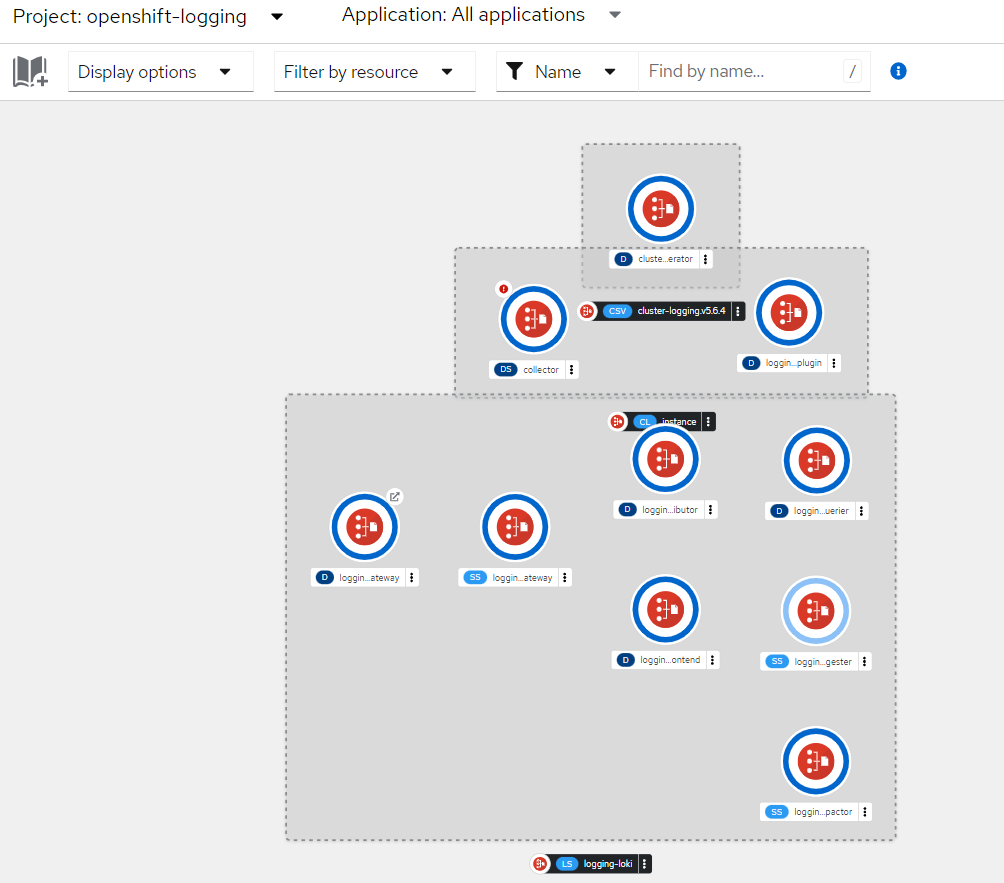

Next you can click to Developer > Topology to see the Logging stack as it deploys

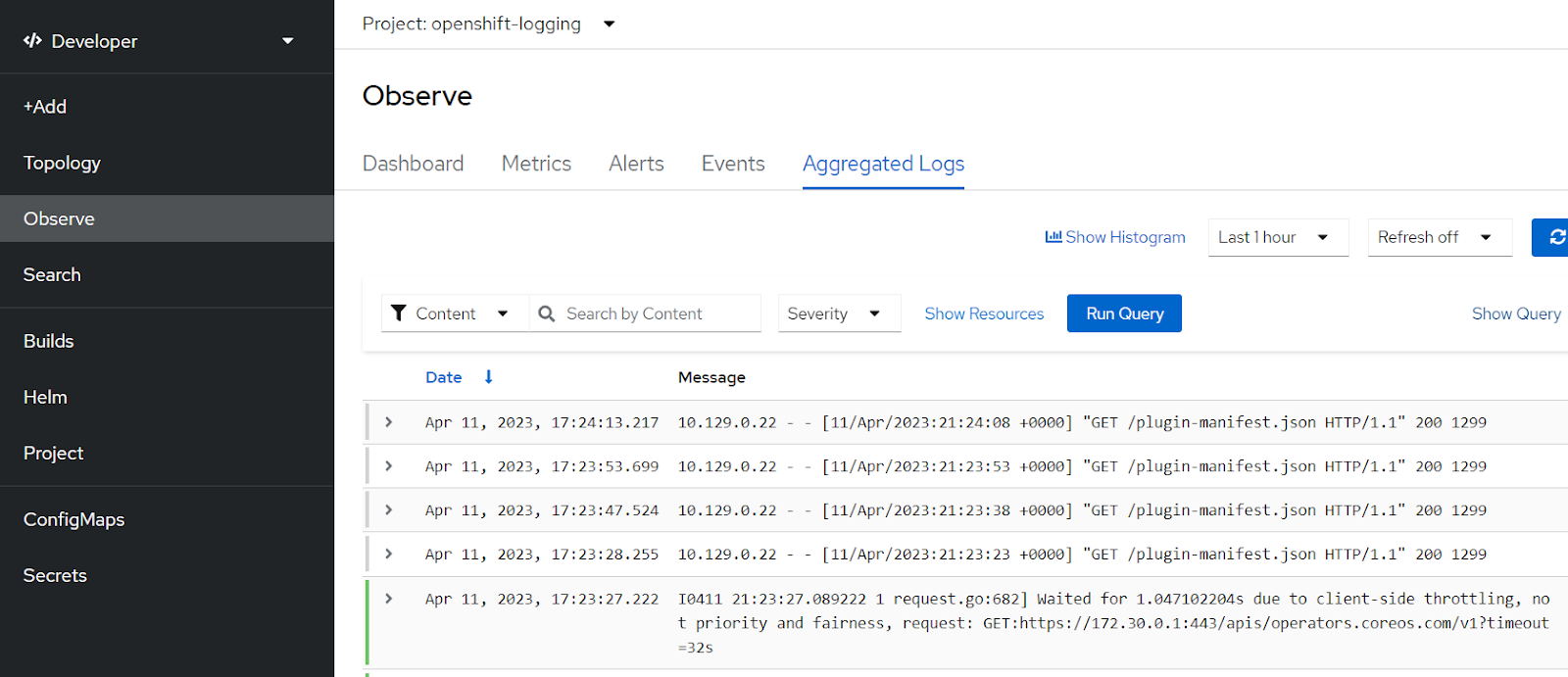

After a few minutes you can check if logs are flowing and viewable by clicking Developer > Observe and selecting Aggregated Logs. (If this menu item isn’t available you may need to refresh your browser).

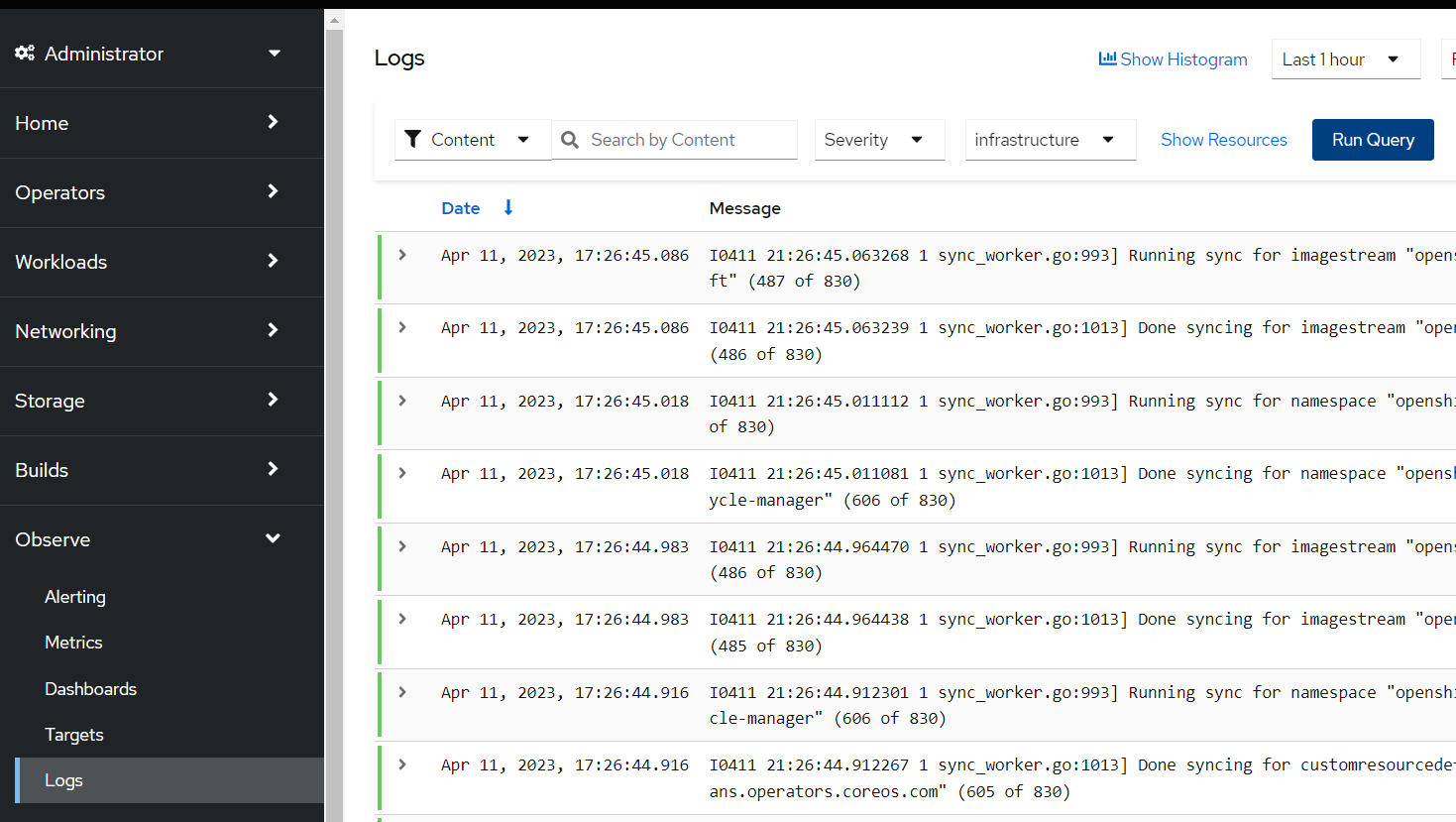

You can also view Infrastructure logs by clicking Administrator -> Observe -> Logs and choosing infrastructure.

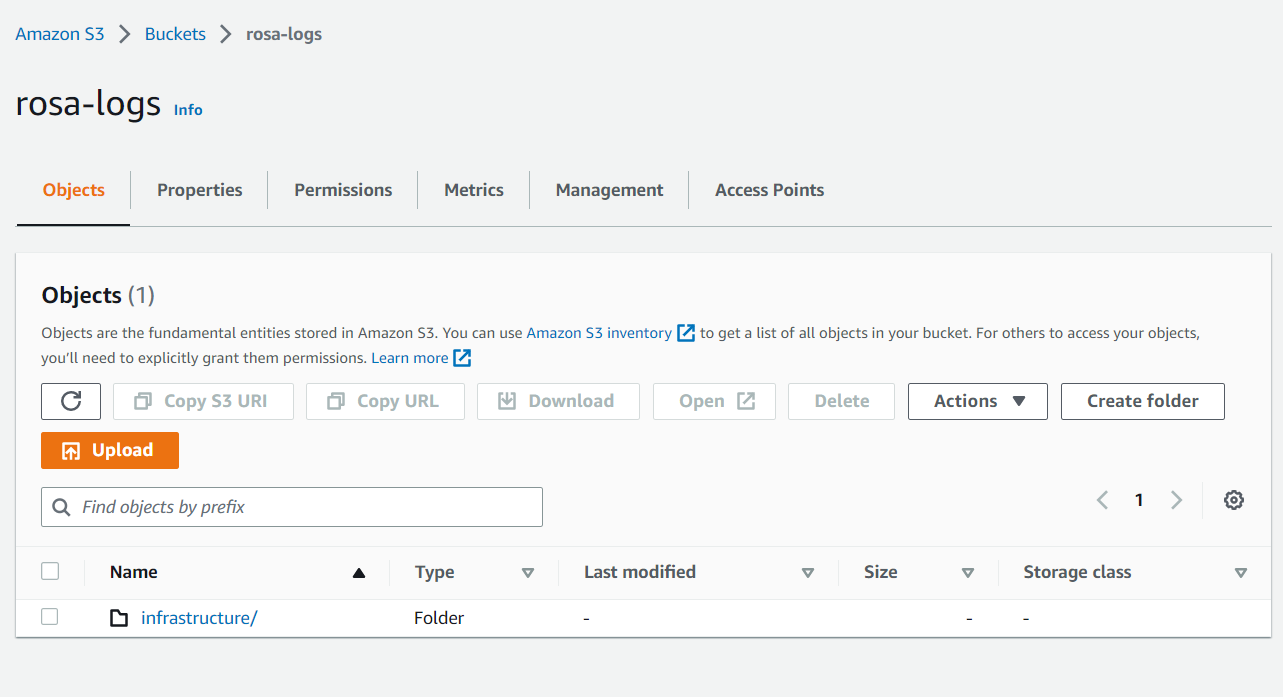

When there’s enough log data Loki will upload it to S3 for long term storage. You can see this by viewing your S3 bucket in the AWS S3 Console.

Congratulations you have successfully configured your ROSA cluster to ship metrics to S3 using the OpenShift Logging and Loki Operators.  There is a lot more to explore here, such as capacity planning the Loki infrastructure, Installing Grafana and creating Dashboards, and more.

To learn more about this topic, check out the lightboard video about ROSA logging options.
