OpenShift Pipelines based on Tekton provides a Kubernetes-native CI/CD framework to design and run your pipelines. You do not need a separate CI/CD server to manage or maintain.

An important aspect of OpenShift Pipelines is that each step of the CI/CD pipeline runs in its own container thereby allowing each step to be customized as required.

A typical CI/CD pipeline is a set of tasks, and each task is a set of steps. Further, a task is run as a Kubernetes Pod, and each step of the task is a separate container in the Pod.

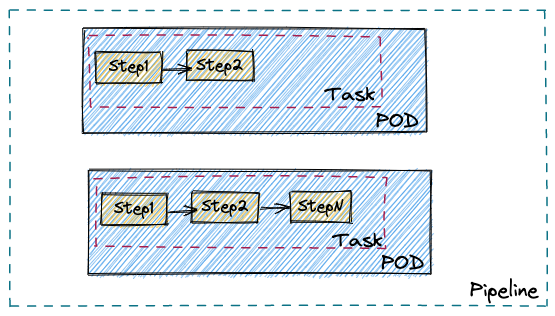

The diagram below will help to visualize the relationship between task, step, pipeline. and Pod.

By virtue of the task running as a Kubernetes Pod, it is possible to customize each step with respect to container resource requirements, runtime configuration, security policies, attached sidecar, and others.

Let’s say you are looking for a safe way to handle one of these requirements:

  1. Run a task requiring additional privileges
  2. Run a step in the task with unsafe sysctl settings (for example, kernel.msgmax) and capture some test data

This is where the combination of OpenShift sandboxed containers and OpenShift Pipelines can help you.

With a single line change to the associated Pod template used to run the tasks, you can provide an additional isolation layer by leveraging the Kata container runtime.

The one line change is adding the following statement to the Pod template spec: runtimeClassName: kata

Sample Pod template spec

  name: mypipeline
  runtimeClassName: kata

A short video demo can be viewed here:

In the remainder of the blog, we will see a complete example of using OpenShift sandboxed containers with OpenShift Pipelines. Specifically, we will use the pipelines tutorial and an example TaskRun with Kata container runtime.

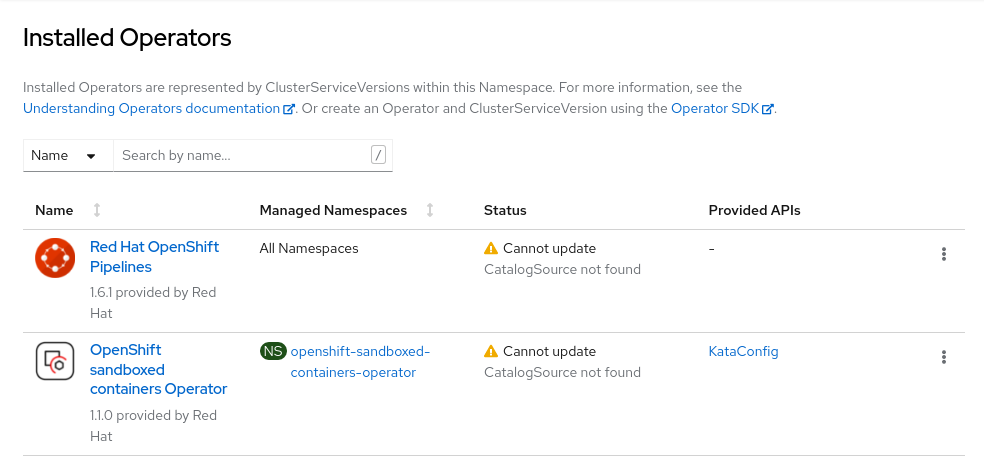

Make sure Red Hat OpenShift Pipelines Operator and OpenShift sandboxed containers Operator are installed.

Create KataConfig by following the instructions given in this doc:

Pipelines Tutorial - Using Kata runtime


$ git clone
$ cd pipelines-tutorial
$ ./ setup-pipeline
NAME                  TASKREF             RUNAFTER           TIMEOUT   CONDITIONS   PARAMS
∙ fetch-repository    git-clone                              ---       ---          url: string, subdirectory: , deleteExisting: true, revision: master
∙ build-image         buildah             fetch-repository   ---       ---          IMAGE: string
∙ apply-manifests     apply-manifests     build-image        ---       ---          ---
∙ update-deployment   update-deployment   apply-manifests    ---       ---          deployment: string, IMAGE: string
$ ./ run
INFO: Running API Build and deploy
tkn -n pipelines-tutorial pipeline start build-and-deploy -w name=shared-workspace,volumeClaimTemplateFile=01_pipeline/03_persistent_volume_claim.yaml -p deployment-name=pipelines-vote-api -p git-url= -p IMAGE=image-registry.openshift-image-registry.svc:5000/pipelines-tutorial/pipelines-vote-api --showlog=true
? Value for param `git-revision` of type `string`? (Default is `master`) kata

Entering kata here will use the ‘kata’ branch, and the pipelines-tutorial will be using Kata containers runtime.

Verify by checking the runtimeClassName attribute in the Pod yaml.

$ oc -n pipelines-tutorial get pod -o yaml pipelines-vote-api-64c4984b9c-w2gr7 | grep -i kata
 runtimeClassName: kata
$ oc -n pipelines-tutorial get pod -o yaml pipelines-vote-ui-58767bc8f4-dnlsk | grep -i kata
runtimeClassName: kata

You can see the one line change here.

Observe the resource consumption on the web console

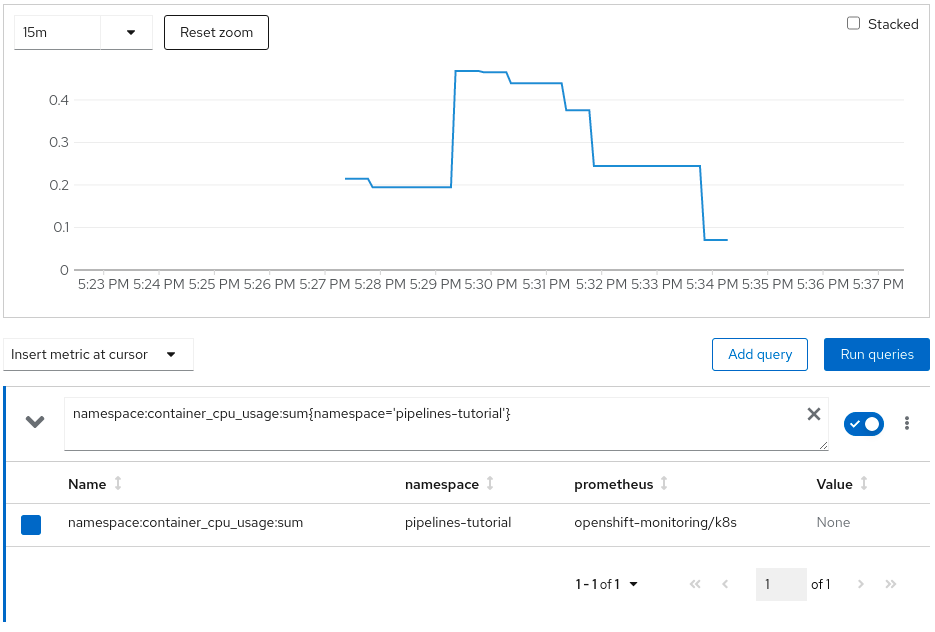

CPU Utilization:

Memory Utilization:

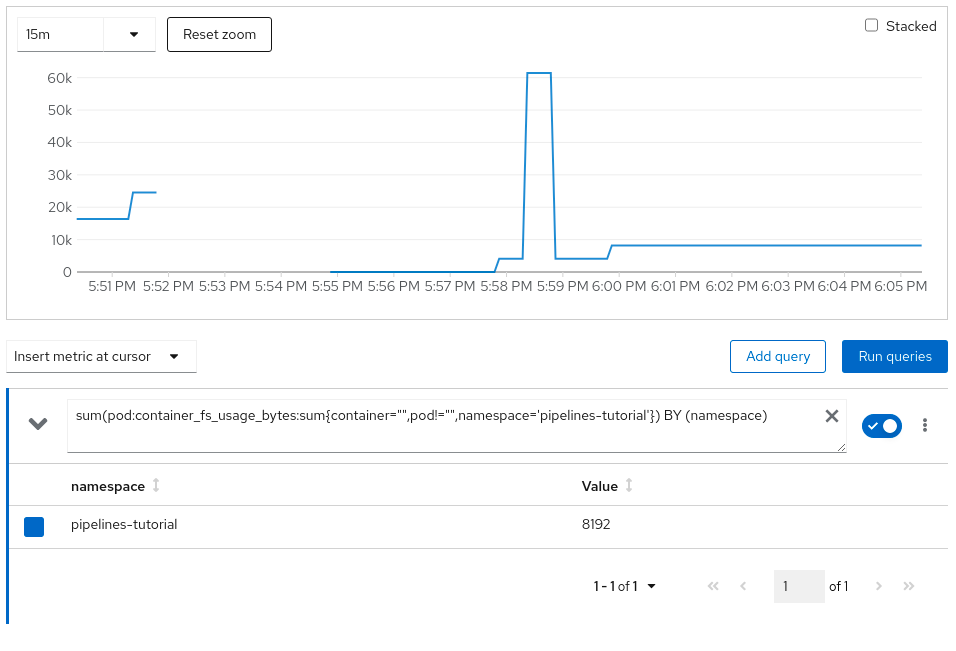

File System Utilization:

Network Utilization:

Pipelines Tutorial - default cri-o runtime


Follow the same steps as highlighted in the previous section, but enter main (or simply press ‘Enter,’ which will take default) when prompted to enter git-revision instead of kata.

Observe the resource consumption on the web console

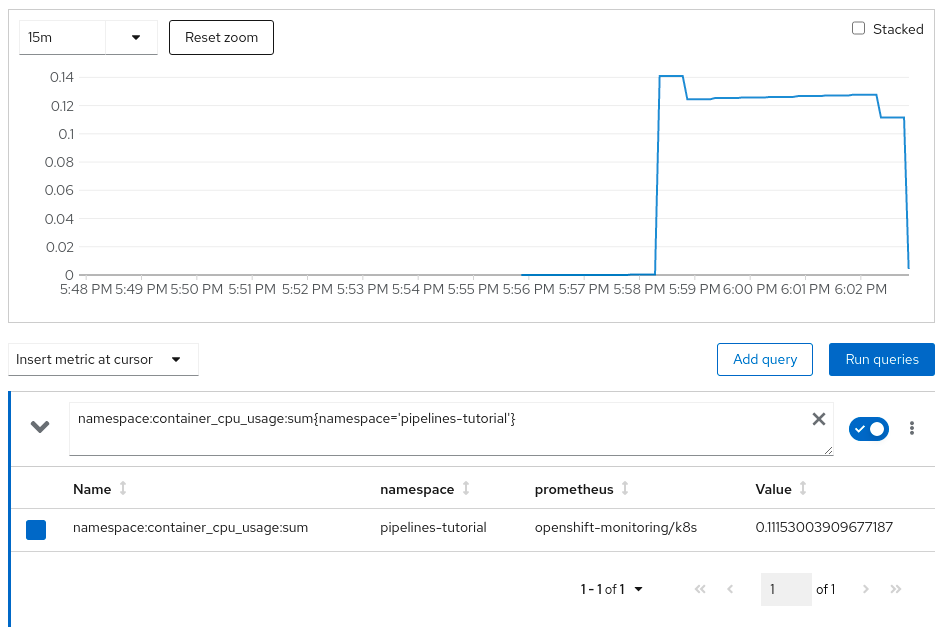

CPU Utilization:

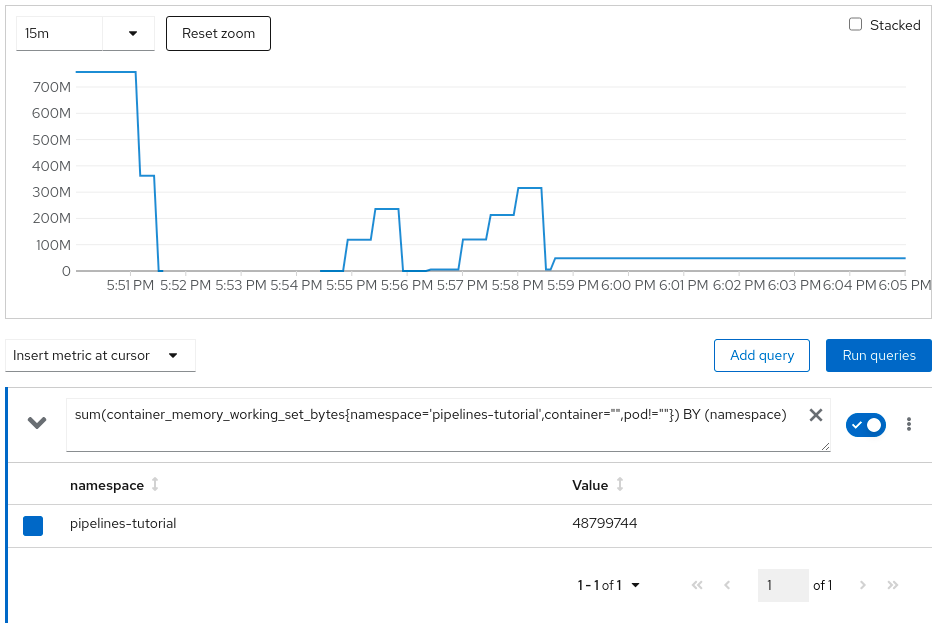

Memory Utilization:

File system Utilization:

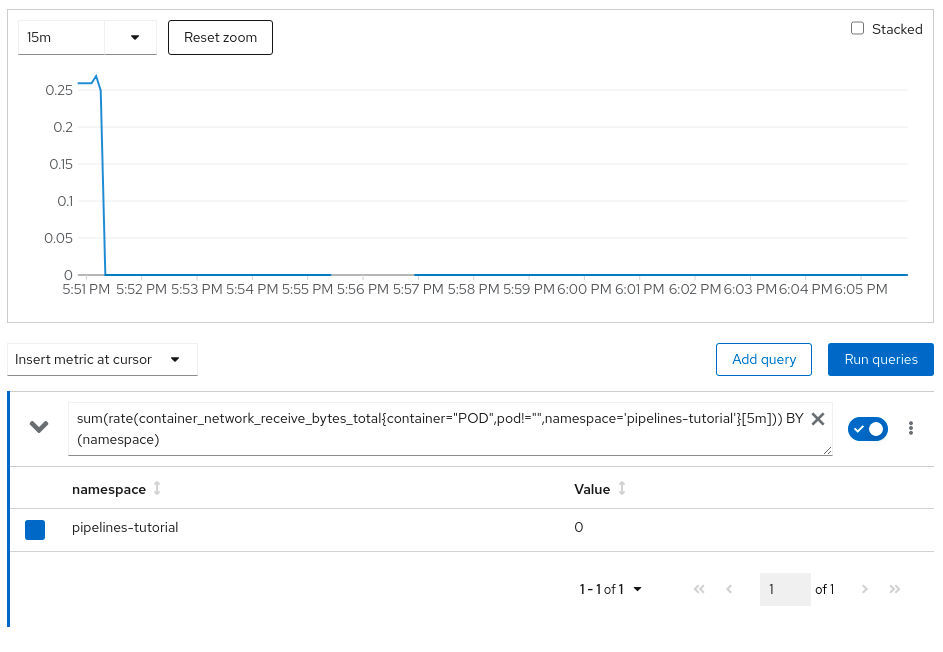

Network Utilization:


As you can see via the pipeline demo example, providing an additional isolation layer to some of your cloud-native CI/CD tasks using Kata containers runtime is extremely easy. However, it should also be noted that this additional isolation layer comes with a small amount of resource overhead as reflected in the resource utilization charts. There is always a trade-off, and you will need to decide what is applicable for your environment.
