In the Introduction, we described a solution where ACM is used to provision Openshift clusters using Gitops. The users fill in the clusters parameters in a form, which are written to a yaml/json object and pushed to git. ArgoCD synchronizes these objects into the ACM cluster. The cluster is provisioned with ACM, which automatically adds the clusters to Openshift GitOps for Day 2. And then, the cluster is configured automatically with ArgoCD using Helm + Kustomize, and ACM policies.

In this article, we'll explain in more detail the first part of the solution: provisioning of Openshift clusters using GitOps with ACM.

If you're interested in the second part of the solution, Configuring Openshift cluster with ApplicationSets using Helm+Kustomize and ACM Policies, don't miss the next article.

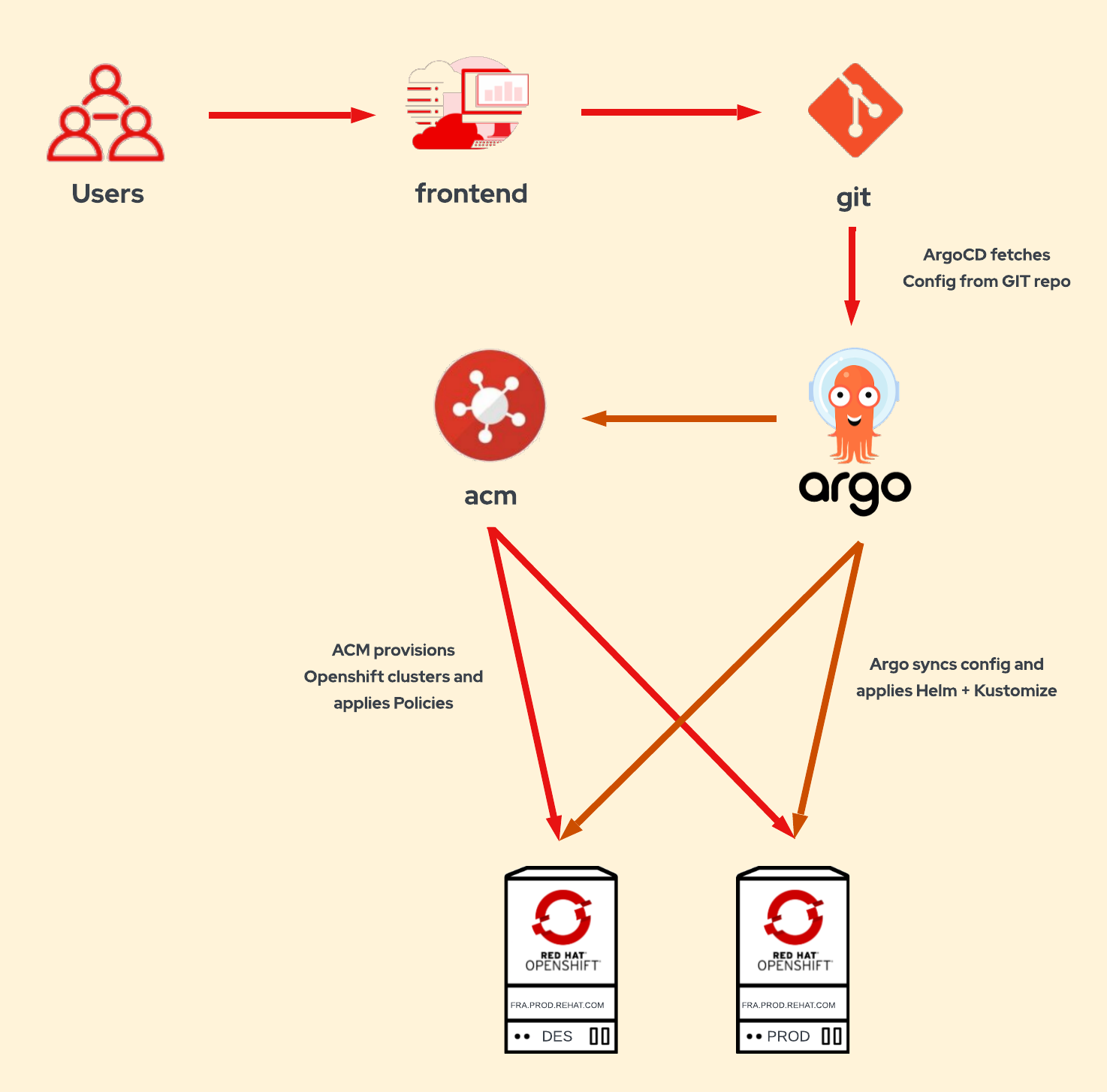

gitops-for-organization-overview

Frontend

We need a frontend (web application) to create the objects needed by ACM to provision the clusters. This frontend can be Anible Automation Platform (Tower), Jenkins, or any custom web application with a form. Although ACM can be used as frontend to provision the clusters, there are some drawbacks: ACM stores the objects locally, not in git; ACM has a fixed form for cluster creation, which cannot be customized.

gitops-for-organization-frontend

This solution doesn't rely on any specific application/orchestrator. This solution just need that this application writes 2 configuration files: conf.yaml and provision.yaml.

Cluster Parameters

Instead of creating all the objects needed by ACM in the frontend, we just need to create a 2 objects:

  • conf.yaml: contains all the configuration parameters of the cluster.
  • provision.yaml: contains the parameters needed to provision the cluster, like intall-config.yaml.

In our example repository, we can see these files for the cluster example zamora.dev.redhat.com:

├── clusters
│ └── dev
│ └── zamora.dev.redhat.com
│ ├── conf.yaml
│ ├── provision.yaml
│ └── overlay
│ └── kustomization.yaml
└── conf
└── dev
├── conf.yaml
└── provision.yaml

There are no specif format for conf.yaml and provision.yaml, but we follow these guidelines:

  • In the folder conf/<environment>, we sould add the common configuration for each environment.
  • In the folder clusters/<environment>/<cluster>, we should add the specific configuration for the cluster.
  • In conf.yaml, we should add the configuration needed for Day 2, explained in the next part: Configuring OpenShift cluster with ApplicationSets using Helm+Kustomize and ACM Policies.
  • In provision.yaml, we should add the configuration needed for provisioning, for our Cluster-provisioning Helm chart. You can see an example of provision.yaml for the cluster here, and for the environment here.

Cluster-provisioning ApplicationSet

We’re using an ApplicationSet to search for provision.yaml files, and it’ll create an Argo Application for each file. Each provision application will create all the ACM objects needed to deploy an OpenShift cluster.

gitops-for-organization-provision-applicationset

This application uses a Helm chart to deploy all the ACM objects needed:

  • ClusterDeployment
  • KlusterletAddonConfig
  • MachinePool
  • ManagedCluster
  • Namespace
  • Secrets: pull-secret, install-config, ssh-private-key and creds

The Helm ACM provision chart has these templates:

base
└── provision
├── Chart.yml
└── templates
├── ClusterDeployment.yml
├── KlusterletAddonConfig.yml
├── MachinePool.yml
├── ManagedCluster.yml
├── Namespace.yml
└── Secrets.yml

The ApplicationSet creates an Argo Application for each provision.yaml under clusters folder using the path: base/provision/openshift-provisioning and the config files:

  • /conf/{{cluster.environment}}/provision.yaml
  • /clusters/{{cluster.environment}}/{{cluster.fqdn}}/provision.yaml
apiVersion: argoproj.io/v1alpha1
kind: ApplicationSet
metadata:
name: cluster-provisioning
namespace: openshift-gitops
spec:
generators:
- git:
repoURL: https://github.com/albertogd/gitops-for-organizations.git
revision: main
files:
- path: "clusters/**/provision.yaml"
template:
metadata:
name: "provision-{{cluster.environment}}-{{cluster.name}}"
labels:
environment: "{{cluster.environment}}"
cluster: "{{cluster.fqdn}}"
region: "{{cluster.region}}"
cloud: "{{cluster.cloud}}"
spec:
project: default
source:
repoURL: https://github.com/albertogd/gitops-for-organizations.git
targetRevision: main
path: base/provision/openshift-provisioning
helm:
valueFiles:
- /conf/{{cluster.environment}}/provision.yaml
- /clusters/{{cluster.environment}}/{{cluster.fqdn}}/provision.yaml
destination:
server: 'https://kubernetes.default.svc'
namespace:
syncPolicy:
syncOptions:
- preserveResourcesOnDeletion=true

Use of preserveResourcesOnDeletion

Using an ApplicationSet to dynamically generate the provision applications has a risk involved: if the ApplicationSet is deleted. the following occurs (in rough order):

The ApplicationSet resource itself is deleted Any Application resources that were created from this ApplicationSet (as identified by owner reference) Any deployed resources (Deployments, Services, ConfigMaps, etc) on the managed cluster, that were created from that Application resource (by Argo CD), will be deleted.

To prevent the deletion of the resources of the Application, such as ManagedCluster, ClusterDeployment, etc, set .syncPolicy.preserveResourcesOnDeletion to true in the ApplicationSet. This syncPolicy parameter prevents the finalizer from being added to the Application.

Cluster Provision

Once the ACM objects are synchronized to the cluster, ACM will start to provision the new cluster.

Day 2 Configuration

To add each new cluster to GitOps, we need to create this 3 objects in ACM:

  • ManagedClusterSetBinding
  • Placement
  • GitOpsCluster

These objects will be also stored in git, as explained in the next part, Configuring Openshift cluster with ApplicationSets using Helm+Kustomize and ACM Policies:

└── clusters
└── acm-hub
├── applications
....
└── gitops-cluster
├── GitOpsCluster.yaml
├── ManagedClusterSetBinding.yaml
├── Placement.yaml
└── kustomization.yaml

A ManagedClusterSetBinding resource allows us to bind a ManagedClusterSet resource to a namespace. In our example, we want to bind the clusterSet vmware to the openshift-gitops namespace:

apiVersion: cluster.open-cluster-management.io/v1beta1
kind: ManagedClusterSetBinding
metadata:
name: vmware
namespace: openshift-gitops
spec:
clusterSet: vmware

The Placement allows us to select clusters based on labels, in the case, platform = vmware:

apiVersion: cluster.open-cluster-management.io/v1beta1
kind: Placement
metadata:
name: vmware
namespace: openshift-gitops
spec:
predicates:
- requiredClusterSelector:
labelSelector:
matchExpressions:
- key: platform
operator: "In"
values:
- vmware

The GitOpsCluster custom resource allows us to register the clusters selected with a Placement to an ArgoCD server:

apiVersion: apps.open-cluster-management.io/v1beta1
kind: GitOpsCluster
metadata:
name: argo-acm-clusters
namespace: openshift-gitops
spec:
argoServer:
cluster: local-cluster
argoNamespace: openshift-gitops
placementRef:
kind: Placement
apiVersion: cluster.open-cluster-management.io/v1beta1
name: vmware
namespace: openshift-gitops



Continue to the second part: Configuring Openshift cluster with ApplicationSets using Helm+Kustomize and ACM Policies

Return to the Introduction: GitOps for organizations: provisioning and configuring Openshift clusters automatically
