Overview

Red Hat Advanced Cluster Security (RHACS) Central is installed with one administrator user by default. Typically, customers request an integration with existing Identity Provider(s) (IDP). RHACS offers different options for such integration. In this article, 2 IDPs will be configured as an example. First OpenShift Auth and second Red Hat Single Sign On (RHSSO) based on Keycloak

Prerequisites

1. OpenShift 4 Cluster

2. Advanced Cluster Security v3.66+

3. Red Hat SSO Operator installed

WARNING: While RHSSO will be installed during this article, only default and example values are used. These are by no means examples for a production system.


Introduction

Advanced Cluster Security comes with several default roles, which can be assigned to users:

System role

Description

Admin

This role is targeted for administrators. Use it to provide read and write access to all resources.

Analyst

This role is targeted for a user who cannot make any changes, but can view everything. Use it to provide read-only access for all resources.

Continuous Integration

This role is targeted for CI (continuous integration) systems and includes the permission set required to enforce deployment policies.

None

This role has no read and write access to any resource. You can set this role as the minimum access role for all users.

Sensor Creator

Red Hat Advanced Cluster Security for Kubernetes uses this role to automate new cluster setups. It includes the permission set to create Sensors in secured clusters.

Scope Manager

This role includes the minimum permissions required to create and modify access scopes.

NOTE: It is possible to create custom roles.

Configure RHACS Authentication: OpenShift Auth

NOTE: It is assumed that RHACS is already installed and login to the Central UI is available.

1. Login to your RHACS and select “Platform Configuration” > “Access Control”.

2. From the drop-down menu, Add auth provider select OpenShift Auth.

3. Enter a Name for your provider and select a default role which is assigned to any user who can authenticate.

It is recommended to select the role None, so new accounts will have no privileges in RHACS.

With Rules, you can assign roles to specific users, based on their userid, name, e-mail address, or groups.

For example, the user with the name poweruser gets the role Admin assigned.

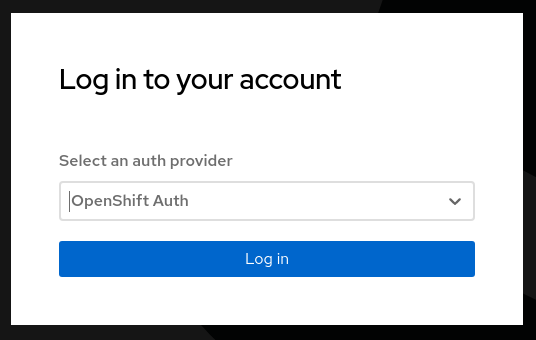

Verify authentication with OpenShift Auth

1. Logout from the Central UI and reload the browser.

2. Select from the drop-down OpenShift Auth.

3. Try to login with a valid OpenShift user.

Depending on the Rules that have been defined during previous steps, the appropriate permissions should be assigned.

For example: If you login as user poweruser, the role Admin is assigned.


Configure Red Hat single sign on

The following steps will create some basic example objects to an existing RHSSO or Keycloak to test the authentication at RHACS.

Skip to step #5 if you have Keycloak already up and running and would like to reuse an existing client.

The RHSSO operator (or Keycloak) is installed at the namespace single-sign-on.

1. Create an instance of Keycloak:

apiVersion: keycloak.org/v1alpha1
kind: Keycloak
metadata:
 name: example-keycloak
 namespace: single-sign-on
spec:
 externalAccess:
   enabled: true
 instances: 1



2. Create a Realm.

This will create a Realm called Basic:

apiVersion: keycloak.org/v1alpha1
kind: KeycloakRealm
metadata:
name: example-keycloakrealm
namespace: single-sign-on
spec:
instanceSelector:
  matchLabels:
    app: sso
realm:
  displayName: Basic Realm
  enabled: true
  id: basic
  realm: basic



3. Login into Red Hat SSO.

Get the route to your RHSSO instance:

oc get route keycloak -n single-sign-on --template='{{ .spec.host }}'

# keycloak-single-sign-on.apps.cluster-29t8z.29t8z.sandbox677.opentlc.com

and log into the Administration Interface.

4. Extract the admin password for Keycloak.

The secret name is built from "credential"<keycloak-instance-name>:

oc extract secret/credential-example-keycloak -n single-sign-on --to=-

# ADMIN_PASSWORD

# ADMIN_USERNAME

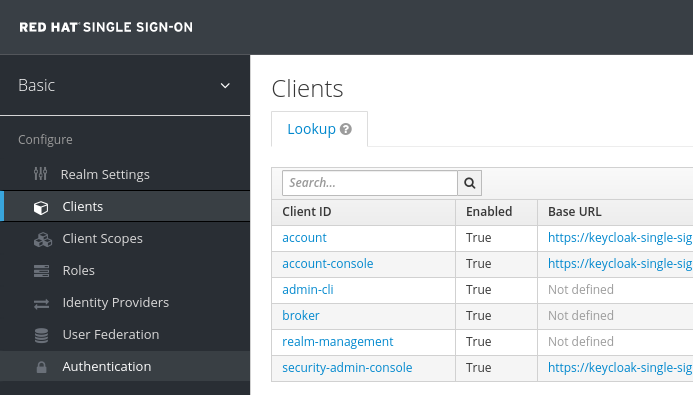

5. Be sure to select your Realm (Basic, in our case), go to Clients, and select a ClientID.

5.1 In this example, we select account:

NOTE: Of course, you can create or use any other Client.

5.2 Enable the option Implicit Flow.

6. Get the Issuer URL  from your realm. This is typically your:

https://<KEYCLOAK_URL>/auth/realms/<REALM_NAME>

For example:

https://keycloak-single-sign-on.apps.cluster-29t8z.29t8z.sandbox677.opentlc.com/auth/realms/basic




Create test users

In RHSSO, create two user accounts to test the authentication later.

1. Go to Users and create the users:

1.1 User: acsadmin

1.2 User: user1

You can set any other values for these users. However, be sure to set a password for both, after they have been created.


Configure RHACS Authentication: RHSSO

NOTE: It is assumed that RSACS is already installed and login to the Central UI is available.

1. Login to your RHACS and select “Platform Configuration” > “Access Control”.

2. From the drop-down menu Add auth provider, select OpenID Connect.

2.1 Enter a “Name” for your provider, that is,. “Single Sign On”.

2.2 Leave the “Callback Mode” to the “Auto-Select” setting.

2.3 Enter your Issuer URL.

2.4 As Client ID, enter account (or the ClientID you would like to use).

2.5 Leave the Client Secret empty and select the checkbox Do not use Client Secret, which is good enough for our tests.

Remember the two callback URLs from the blue box. They must be configured in Keycloak.

2.6 Select a default role that is assigned to any user who can authenticate.

It is recommended to select the role None, so new accounts will have no privileges in RHACS.

2.7 With Rules, you can assign roles to specific users, based on their userid, name, e-mail address, or groups.

2.8 For example, the user with the name acsadmin (which had been created previously in our RHSSO) gets the role Admin assigned.

The final settings are depicted in the following image:


Continue RHSSO configuration

What is left to do is the configuration of redirect URLs. These URLs are shown in the ACS Authentication Provider configuration (see blue field in the image above)

1. Log back into RHSSO and select “Clients'' > “account”.

2. Into Valid Redirect URLs, enter the two URLs that you saved from the blue box in the RHACS configuration.

Troubleshoot: test login

In RHACS, you can test the login to your SSO.

1. Go to "Platform Configuration" > "Access Control".

2. Click the button "Test login".

A pop-up will appear that asks you to enter SSO credentials. The connection to RHSSO will be validated:

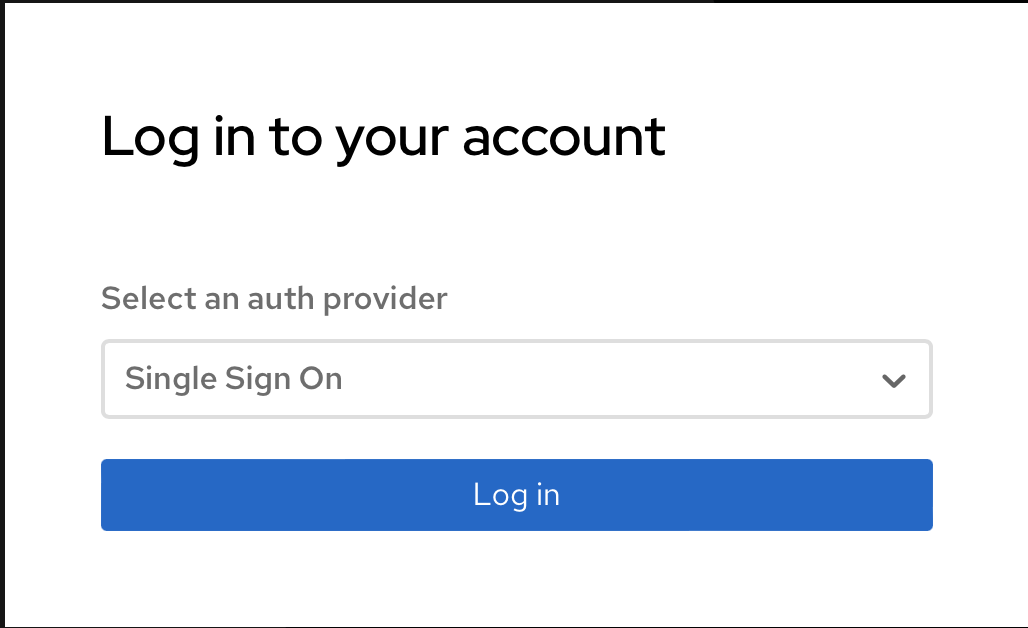

Verify authentication with OpenShift Auth

1. Logout from the Central UI and reload the browser.

2. Select from the drop-down Single Sign On.

3. Try to login with a valid SSO user.

Depending on the Rules that have been defined during previous steps, the appropriate permissions should be assigned.

For example, if you login as user acsadmin, the role Admin is assigned.
