What is Red Hat Advanced Cluster Management?
Red Hat Advanced Cluster Management simplifies the management of multiple clusters by offering end-to-end management, visibility and control of the whole cluster and application life cycle. It acts as a central point for keeping an inventory of all your clusters and applications and enables multi-cluster and multi-cloud scenarios, such as deploying the same application across clusters in different regions, possibly on several cloud providers. It uses a hub and spoke architecture and allows the targeted distribution of Kubernetes manifests across clusters.
What are hub and managed clusters?
The hub cluster is the cluster on which ACM is running on. It acts as an inventory and carries out all management actions. It is usually not running any actual workloads (though still possible), these run on managed clusters. Managed clusters are kept in the inventory of the hub cluster. They can be created and added to the inventory directly through ACM. Alternatively, existing clusters can be added to the inventory as well. For more information have a look at the ACM documentation.
What is the GitOps way and what is OpenShift GitOps?
The GitOps way uses Git repositories as a single source of truth to deliver infrastructure as code. Automation is employed to keep the desired and the live state of clusters in sync at all times. This means any change to a repository is automatically applied to one or more clusters while changes to a cluster will be automatically reverted to the state described in the single source of truth.
Red Hat OpenShift GitOps enables declarative GitOps workflows and allows to deploy applications on-demand. It monitors the live state of clusters against the desired state in a Git repository and keeps them in sync. It builds on the ArgoCD project, therefore the terms OpenShift GitOps and ArgoCD might be used interchangeably in the following sections. For more information have a look at the GitOps documentation.
A quick primer about Applications and ApplicationSets
The ArgoCD Application
is a CustomResourceDefinition
(CRD), which essentially describes a source of manifests and a target cluster to apply the manifests to. Besides that, options like automatic creation of namespaces or the automatic revert of changes can be configured.
The ArgoCD ApplicationSet
is a CRD building on ArgoCD Applications
, targeted to deploy and manage Applications
across multiple clusters while using the same manifest or declaration. It is possible to deploy multiple ApplicationSets
which are contained in one monorepo. By using generators it is possible to dynamically select a subset of clusters available to ArgoCD to deploy resources to.
In this blog post we are going to use ApplicationSets
to deploy OpenShift Virtualization and VirtualMachines
to multiple clusters while using the same declaration of resources for all clusters.
For more information on ApplicationSets
see the documentation.
Requirements for the setup
The following requirements need to be satisfied to build the setup described in this blog post yourself:
- A Git repository accessible by the hub cluster
- One OpenShift cluster acting as hub cluster
- Needs to be publicly accessible or at least accessible by the managed clusters
- One or more OpenShift clusters acting as managed clusters
- Can be in private networks
- Virtualization has to be available
- Nested virtualization is fine for demonstration purposes
Repository preparation
A repository with the files used in this blog post can be found at https://github.com/0xFelix/gitops-demo. You need to clone this repository to somewhere where you are able to make changes to it (i.e. forking it on GitHub). Then open a terminal on your machine, check out the repository locally and change your working directory into the cloned repository.
The ApplicationSets
in the demo repository use the above repository URL as repoURL
. To be able to make changes to your ApplicationSets
, you need to adjust the repoURL
to the URL of your own repository. If you do this later do not forget to update any existing ApplicationSets
on your hub cluster.
Installing and configuring Advanced Cluster Management
The following steps will guide you through installing and configuring ACM on your hub cluster. We will use the OpenShift console where possible.
Installing ACM on the hub cluster

- Login as cluster administrator on the UI of the hub cluster
- Open the
Administrator
view if it is not already selected - In the menu click on
Operators
and openOperatorHub
- In the search type
Advanced Cluster Management for Kubernetes
and click on it in the results - Click on
Install
, keep defaults and click onInstall
again - Wait until
MultiClusterHub
can be created and create it - Wait until the created
MultiClusterHub
is ready (Operators
-->Installed Operators
--> see status of ACM)
Adding managed clusters to ACM on the hub cluster
Managed clusters can be added to ACM in two ways:
- Create a new cluster with ACM
- Add an existing cluster to ACM
Note: For the sake of simplicity we will let ACM create the managed clusters in this blog post on a public cloud provider. Please note that nested virtualization is not supported in production deployments.
To create one or more managed clusters follow these steps:
- Login as cluster administrator on the UI of the hub cluster
- At the top of the menu select
All Clusters
(local-cluster
should be selected initially) - Add credentials for you cloud provider by clicking on
Credentials
in the menu and then clicking onAdd credentials
- Click on
Infrastructure
and then onClusters
in the menu - Click
Create cluster
, select your cloud provider and complete the wizard (use the default cluster set for now)
Note: When using Azure as cloud provider select instance type
Standard_D8s_v3
for the control plane andStandard_D4s_v3
for the worker nodes, resources might become to tight to run virtual machines on the cluster otherwise.
Organizing managed clusters in a set
Managed clusters can be grouped into ManagedClusterSets
. These sets can be bound to namespaces with a ManagedClusterSetBinding
to make managed clusters available in the bound namespaces.
To add managed clusters to a new set follow these steps:
- Login as cluster administrator on the UI of the hub cluster
- At the top of the menu select
All Clusters
(local-cluster
should be selected initially) - Click on
Infrastructure
and then onClusters
in the menu - Click on
Cluster sets
and then onCreate cluster set
- Enter
managed
as name for the new set and click onCreate
- Click on
Managed resource assignments
- Select all clusters you want to add, click on
Review
and then onSave
Now we have a ManagedClusterSet
that can be used to make the managed clusters available to ArgoCD.

If done correctly, the cluster list of the created ManagedClusterSet
in ACM should look like in the screenshot above.
Installing and configuring OpenShift GitOps
The following steps will guide you through installing and configuring OpenShift GitOps or ArgoCD on your hub cluster. We will use the OpenShift console where possible again.
Installing OpenShift GitOps on the hub cluster

- Login as cluster administrator on the UI of the hub cluster
- Open the
Administrator
view if it is not already selected - In the menu click on
Operators
and openOperatorHub
- In the search type
Red Hat OpenShift GitOps
and click on it in the results - Click on
Install
, keep defaults and click onInstall
again - Wait until OpenShift GitOps is ready (
Operators
-->Installed Operators
--> see status of OpenShift GitOps)

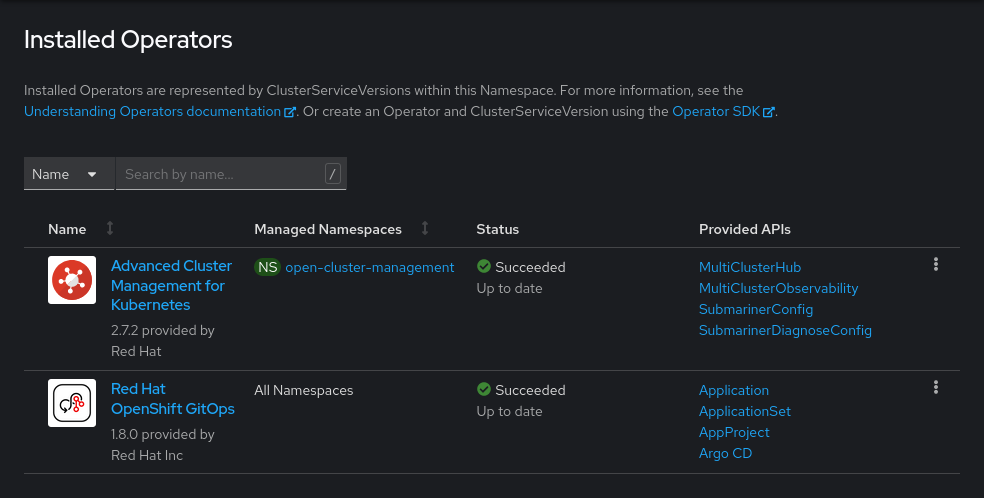

If installed correctly, the list of installed operators on your cluster should look like in the following screenshot:

Accessing the OpenShift GitOps web UI
The OpenShift GitOps web UI is exposed with a Route
. To get the exact URL of the Route
follow these steps:
- Login as cluster administrator on the UI of the hub cluster
- Open the
Administrator
view if it is not already selected - In the menu click on
Networking
and openRoutes
- In the
Projects
drop down selectopenshift-gitops
(enableShow default projects
if not visible) - There will be a
Route
calledopenshift-gitops-server
, the location of thisRoute
is the URL to the GitOps UI - You can log in to the GitOps UI with your OpenShift credentials
Alternatively you can use the command line to get the URL to the GitOps UI with the following command:
oc get route -n openshift-gitops openshift-gitops-server -o jsonpath='{.spec.host}'
Making a set of managed clusters available to OpenShift GitOps
To make a set of managed clusters available to OpenShift GitOps, a tight integration between ACM and GitOps exists. The integration is controlled with the GitOpsCluster
CRD.
Follow these steps to make the managed clusters available to GitOps:
- Copy the login command for the command line by clicking on your username on the top right and then click on
Copy login command
- Run the copied command in your terminal
- Create a
ManagedClusterSetBinding
in theopenshift-gitops
namespace to make theManagedClusterSet
available in this namespace- See file managedclustersetbinding.yaml
- Run
oc create -f acm-gitops-integration/managedclustersetbinding.yaml
- Create a
Placement
to let ACM decide which clusters should be made available to GitOps- See file placement.yaml
- Run
oc create -f acm-gitops-integration/placement.yaml
- For the sake of simplicity this will select the whole
ManagedClusterSet
, but advanced use cases are possible
- Create a
GitOpsCluster
to finally make the selected clusters available to GitOps on the hub cluster- See file gitopscluster.yaml
- Run
oc create -f acm-gitops-integration/gitopscluster.yaml

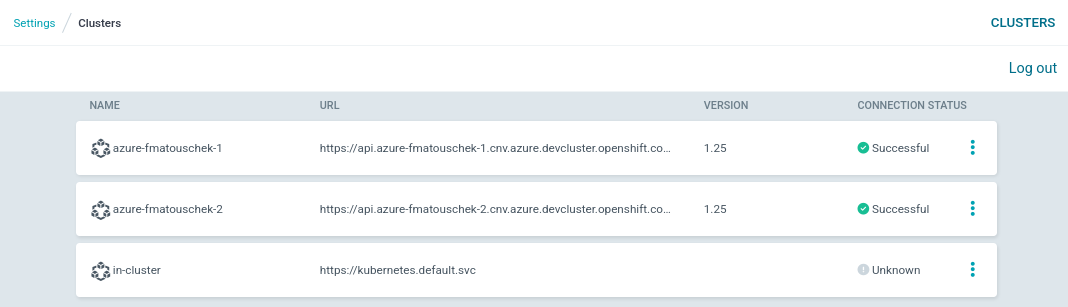

In this screenshot you can see that the managed clusters were made available to ArgoCD successfully. This view can be opened by going to ArgoCD's settings and opening the Clusters
menu. Until an Application
is deployed to the cluster its connection status may still be Unknown
.
Assigning clusters to environments
In our setup we assign managed clusters to specific environments by setting a label on them. Ideally it would be possible to assign them from ACM, but for the time being this still has to be done in ArgoCD. In an upcoming ACM release it will be possible to carry over labels set in ACM to ArgoCD.
In this post we will work with the dev
and the prod
environments. Add your managed clusters to the environments by following these steps:

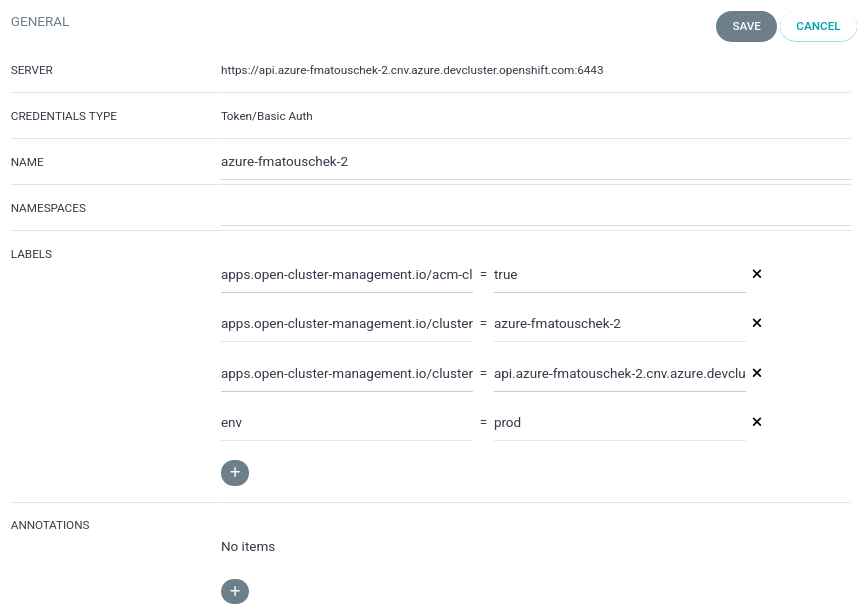

Open ArgoCD's settings and open the Clusters
menu. Then click on the three dots on the right side of a cluster to edit it. After editing the cluster do not forget to save your changes.
Assigning clusters to the dev environment

One or more of the clusters should belong to the dev
environment. This is achieved by setting the env
label to the value dev
on the managed cluster.
Assigning clusters to the prod environment

One or more of the clusters should belong to the prod
environment. This is achieved by setting the env
label to the value prod
on the managed cluster.
Deploying OpenShift Virtualization to the managed clusters

To deploy OpenShift Virtualization to the managed clusters with the help of an ApplicationSet
run the following command from your cloned repository (See Repository preparation):
oc create -f applicationsets/virtualization/applicationset-virtualization.yaml
This will create an Application
for each managed cluster that deploys OpenShift Virtualization with its default settings. The Application
will ensure that the namespace openshift-cnv
exists, and it will automatically apply any changes to this repository or undo changes which are not in this repository. Sync waves are used to ensure that resources are created in the right order.
Order of resource creation
OperatorGroup
Subscription
HyperConverged
Because the HyperConverged
CRD is unknown to ArgoCD, the sync option SkipDryRunOnMissingResource=true
is set to allow ArgoCD to create a CR without knowing its CRD.
Health state of an Application
In ArgoCD's UI you can follow the synchronization status of the newly created Application
for each cluster. Eventually every Application
will reach the healthy and synced status like in the following screenshot.

To see what is actually deployed have a look into the following directory: applicationsets/virtualization/manifests
.
Deploying a VirtualMachine to the managed clusters
To deploy a Fedora VirtualMachine
on all managed clusters with the help of an ApplicationSet
run the following command from your cloned repository (See Repository preparation):
oc create -f applicationsets/demo-vm/applicationset-demo-vm.yaml
This will create an Application
for each managed cluster that deploys a simple VirtualMachine
on each cluster. It uses the Fedora DataSource
available on the cluster by default to boot a Fedora cloud image.
Health state of the Application
Notice how the health state of the created Application
is Suspended
. This is because the created VirtualMachine
is still in stopped state.

Applying customizations to environments
Instead of using plain manifests this ApplicationSet
is using Kustomize
. This allows to apply customizations to an Application
depending on the environment a managed cluster belongs to. In this post it is achieved by using the metadata.labels.env
value to choose the right Kustomize
overlay.
The dev
overlay prefixes names of created resources with dev-
, while the prod
overlay prefixes names with prod-
. Furthermore, the created VirtualMachines
get more or less memory assigned depending on the environment. These are only simple customizations, but the possibilities are endless!
To see what is actually deployed have a look into the following directory: applicationsets/demo-vm/kustomize
.
Quick summary
Here is a quick summary of the required steps:
- Choose to modify all environments (
base
) or a single environment (eg.dev
orprod
) - To start the
VirtualMachine
in all environments editapplicationsets/demo-vm/kustomize/base/virtualmachine.yaml
- Set
spec.running
totrue
- Commit and push the change to your repository
- Refresh ArgoCD to pick up the change
The following sections will explain the steps in more detail.
How to start or stop a VirtualMachine

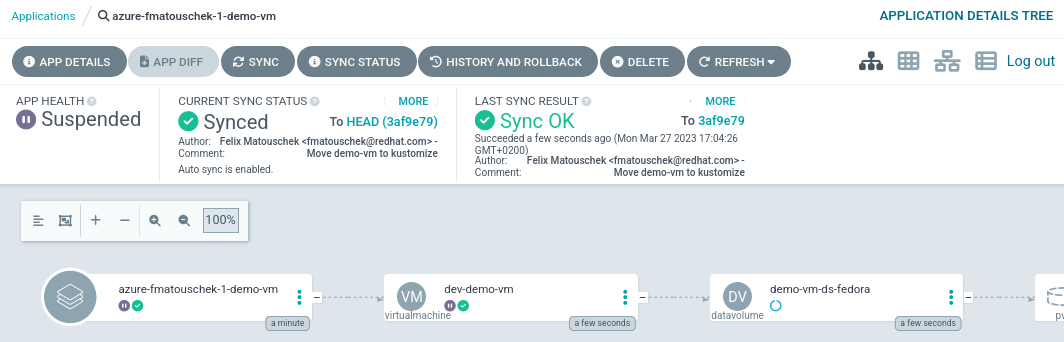

First let us have a closer look at the Application
of the stopped VirtualMachine
. Notice the Suspended
health state. Also notice the dev-
prefix of the created VirtualMachine
. It was created on a cluster belonging to the dev
environment.

To start or stop a VirtualMachine
you need to edit the spec.running
field of a VirtualMachine
and set it to the corresponding value (false
or true
). You can do this in the applicationsets/demo-vm/kustomize
directory.
Graceful shutdown of VirtualMachines
If the VirtualMachine
has an appropriate termination grace period (spec.template.spec.terminationGracePeriodSeconds
), by setting this value to false
the VirtualMachine
will be gracefully shut down. When setting the timeout grace period to 0 seconds, the VirtualMachine
is stopped immediately however.
Applying changes to specific environments
When modifying the VirtualMachine
you can choose to either modify the base or a specific overlay of Kustomize
. This allows to start or stop the VirtualMachine
in every environment or just in a specific one. In this example the VirtualMachine
was started in every environment by modifying the Kustomize
base.
Applying the change with ArgoCD
To apply new changes with ArgoCD you need to commit and push changes to the Git repository containing your Application
. To start or stop a VirtualMachine
you have to update the manifest and commit and push to your repository. In the ArgoCD UI select the Application
of the VirtualMachine
and click Refresh
to apply the change immediately. Otherwise, it will take some time until ArgoCD scans the repository and picks up the change.
Observing the change
After ArgoCD picked up the change it will sync it to the VirtualMachine
as visible by the Progressing
health state in the following screenshot:

Eventually the VirtualMachine
will be running and healthy:

Advanced usage of ACM Placements with OpenShift GitOps
For the sake of simplicity the Placement
created in this blog post selects the whole ManagedClusterSet
, but more advanced use cases are possible.
ACM can dynamically select a subset of clusters from the ManagedClusterSet
, while following a defined set of criteria. This for example allows to schedule VirtualMachines
on clusters with the most resources available at the time of the placement decision.
For more on this topic see Using the Open Cluster Management Placement for Multicluster Scheduling.
Summary and outlook

In this blog post we set up a hub cluster and two clusters managed by ACM to deploy applications to from a centralized management point. As example applications we deployed OpenShift Virtualization with simple manifests and a virtual machine with manifests customized by Kustomize
. We learned how to apply customizations to specific environments and how we can start and stop virtual machines in a declarative way. All of this was accomplished in the GitOps way by using a Git repository as a single source of truth.
This is of course only the tip of the iceberg, building on this setup allows you to customize your ApplicationSets
for different environments like development, staging and production or to schedule your applications based on custom criteria (e.g. available resources) with advanced placements rules.
About the author
More like this
Browse by channel
Automation
The latest on IT automation for tech, teams, and environments
Artificial intelligence
Updates on the platforms that free customers to run AI workloads anywhere
Open hybrid cloud
Explore how we build a more flexible future with hybrid cloud
Security
The latest on how we reduce risks across environments and technologies
Edge computing
Updates on the platforms that simplify operations at the edge
Infrastructure
The latest on the world’s leading enterprise Linux platform
Applications
Inside our solutions to the toughest application challenges
Original shows
Entertaining stories from the makers and leaders in enterprise tech
Products
- Red Hat Enterprise Linux
- Red Hat OpenShift
- Red Hat Ansible Automation Platform
- Cloud services
- See all products
Tools
- Training and certification
- My account
- Customer support
- Developer resources
- Find a partner
- Red Hat Ecosystem Catalog
- Red Hat value calculator
- Documentation
Try, buy, & sell
Communicate
About Red Hat
We’re the world’s leading provider of enterprise open source solutions—including Linux, cloud, container, and Kubernetes. We deliver hardened solutions that make it easier for enterprises to work across platforms and environments, from the core datacenter to the network edge.
Select a language
Red Hat legal and privacy links
- About Red Hat
- Jobs
- Events
- Locations
- Contact Red Hat
- Red Hat Blog
- Diversity, equity, and inclusion
- Cool Stuff Store
- Red Hat Summit
