Toward self-healing automation

In this article we'll explore how to automate the handling of system performance degradation.

Detecting and responding to performance problems is an important part of system administration. Tools are available as part of Red Hat Enterprise Linux (RHEL) and Red Hat Ansible Automation Platform to address each step of this process.

Performance metrics inference engine (PMIE)

The suite of analysis tools forming the Performance Co-Pilot (PCP) in RHEL includes pmie(1), a service for performance rule evaluation. Expressing rules relating to performance presents a unique challenge for administrators in that they often require complex expressions over time series data.

The PCP inference engine is uniquely positioned to solve this problem—it efficiently samples metrics in real-time on-host and provides a powerful predicate language for expressing any problematic performance scenario. For example, default rules include those that detect excessive swap activity under memory pressure, or detect high average processor utilization. Existing performance rules on a system can be listed using the pmieconf(1) rules command, demonstrated later in this post.

Event-Driven Ansible

Event-Driven Ansible is a new Ansible Automation Platform feature where Ansible Playbooks can be run in response to events that happen in your environment. Even performance events? Sure! Let's take a closer look into making these two technologies work together.

By the end of the example covered in this blog, we’ll have PCP and Event-Driven Ansible configured so that when there is a "High average processor utilization" pmie event in the environment, a webhook will trigger Event-Driven Ansible to run an Ansible Automation Platform template or playbook on the host that had the CPU event.

In the demo environment there are several systems:

  • a RHEL 9.3 system that will act as the central PCP management site
  •  RHEL 9.3 client system
  • RHEL 9.3 client system
  • Ansible Automation Platform Automation controller system
  • Ansible Automation Platform Event-Driven Ansible controller system

In this example, there are two RHEL 9.3 client systems, however in a real world deployment there could be many more.  Rather than having each of these client systems directly send webhook events to the Event-Driven Ansible controller, we will use the system as a PCP management site system. This central system is where the pmie rules for each client system will be evaluated, and if a pmie rule evaluates to true, a webhook will be sent from this central system to the Event-Driven Ansible controller.

Illustration of the servers and Event-Driven Ansible connections

PCP introduced the ability to send webhook actions in RHEL 9.3, so you’ll need to be using pcp-6.0.5-4 or later. You can confirm if your version of PCP supports webhook actions with the following command:

test -f /etc/pcp/pmieconf/testing/test_actions || echo "We need pcp-6.0.5-4 or later"

Configuring PCP on RHEL systems

We’ll start by configuring PCP on the RHEL systems.  We’ll use the metrics RHEL system role to perform most of the configuration.  For more information on the metrics system role, see Automate performance metrics collection and visualization with RHEL System Roles.

We have a RHEL inventory defined in the Ansible Automation Platform environment which lists the three RHEL 9.3 systems (,, and An inventory group named servers includes the and systems, and an inventory group named metrics_monitor includes the system.

In the inventory we defined these metrics system role variables for the servers group:

metrics_retention_days: 7
metrics_manage_firewall: true

These variables will configure and to record metrics and retain them for 7 days, and will configure the firewall.

And we defined these metrics system role variables for the metrics_monitor group:

metrics_manage_firewall: true
metrics_retention_days: 7
metrics_monitored_hosts:  "{{ groups['servers'] }}"
webhook_endpoint: ""

These variables will configure to be the central PCP management site system for and systems, metrics will be retained for 7 days, and the firewall will be configured. In addition, we defined a variable with the URL of the Event-Driven Ansible webhook endpoint that PCP should send webhooks to.

Next, we will define a template in Ansible Automation Platform which will run the following playbook:

- name: Use metrics system role to configure PCP metrics recording
  hosts: servers
    - redhat.rhel_system_roles.metrics

- name: Use metrics system role to configure metrics_monitor system
  hosts: metrics_monitor
    - redhat.rhel_system_roles.metrics

- name: Enable PMIE configuration for webhooks
  hosts: metrics_monitor
      - "default"
    server_list: "{{ groups['servers'] + default_config }}"
    - name: Check if global webhook_action is configured
        state: absent
        path: /var/lib/pcp/config/pmie/config.{{ item }}
        regexp: "//.*global webhook_action = yes"
      check_mode: true
      changed_when: false
      register: global_webhook_action_status
      loop: "{{ server_list }}"

    - name: Configure global webhook_action
      command: "pmieconf -f /var/lib/pcp/config/pmie/config.{{ item.item }} modify global webhook_action yes"
      loop: "{{ global_webhook_action_status.results }}"
      when: item.found == 0
      notify: Restart pmie

    - name: Check if global webhook_endpoint is configured
        state: absent
        path: /var/lib/pcp/config/pmie/config.{{ item }}
        regexp: "//.*global webhook_endpoint = \"{{ webhook_endpoint }}\""
      check_mode: true
      changed_when: false
      register: global_webhook_endpoint_status
      loop: "{{ server_list }}"

    - name: Configure global webhook_endpoint
      command: "pmieconf -f /var/lib/pcp/config/pmie/config.{{ item.item }} modify global webhook_endpoint {{ webhook_endpoint }}"
      loop: "{{ global_webhook_endpoint_status.results }}"
      when: item.found == 0
      notify: Restart pmie

    - name: Restart pmie
        name: pmie
        state: restarted

This playbook will run the metrics system role on the two inventory groups. It will then configure the global webhook_action and global webhook_endpoint pmie configuration options on the system for the 3 client systems that pmie will be monitoring (, and

After running this template/playbook, we can confirm that PCP is properly set up on the system by running the pcp summary command:

[root@rhel9-pcp ~]# pcp summary
Performance Co-Pilot configuration on

 platform: Linux 5.14.0-362.2.1.el9_3.x86_64 #1 SMP PREEMPT_DYNAMIC Fri Sep 8 04:21:26 EDT 2023 x86_64
 hardware: 2 cpus, 1 disk, 1 node, 3903MB RAM
 timezone: MDT+6
 services: pmcd
     pmcd: Version 6.0.5-4, 12 agents, 6 clients
     pmda: root pmcd proc pmproxy xfs linux nfsclient mmv kvm jbd2
           dm openmetrics
 pmlogger: primary logger: /var/log/pcp/pmlogger/
     pmie: primary engine: /var/log/pcp/pmie/

The last 3 lines show that pmie is configured to monitor the local system, as well as and

Configuring the Event-Driven Ansible controller

Next we’ll login to the Event-Driven Ansible controller system and create a new project, which in this example is pointed to this GitHub repository which includes this simple rulebook:

- name: Listen for RHEL Performance Co-Pilot events
  hosts: all
    - ansible.eda.webhook:
        port: 5000
    - name: Respond to PMIE rule for High average processor utilization
      condition: event.payload.pcp.pmie.rule == "High average processor utilization"
          name: eda-test
          organization: Default

    - name:  Display contents of event.payload variable
      condition: event.payload is defined
          msg: "Received: {{ event.payload }}"
EDA-PCP details, status completed

This rulebook is looking specifically for the "High average processor utilization" pmie rule, which is one of the default rules. When this rule is triggered, it will run the eda-test Ansible Automation Platform template. There is also a rule defined to display the event.payload variable contents, which can help with initial configuration and troubleshooting of the rulebook.

You can see the other available default pmie rules by running the pmieconf rules command from the system.

Still on the Event-Driven Ansible controller, the next step is to create a rulebook activation, utilizing the project that was just defined.

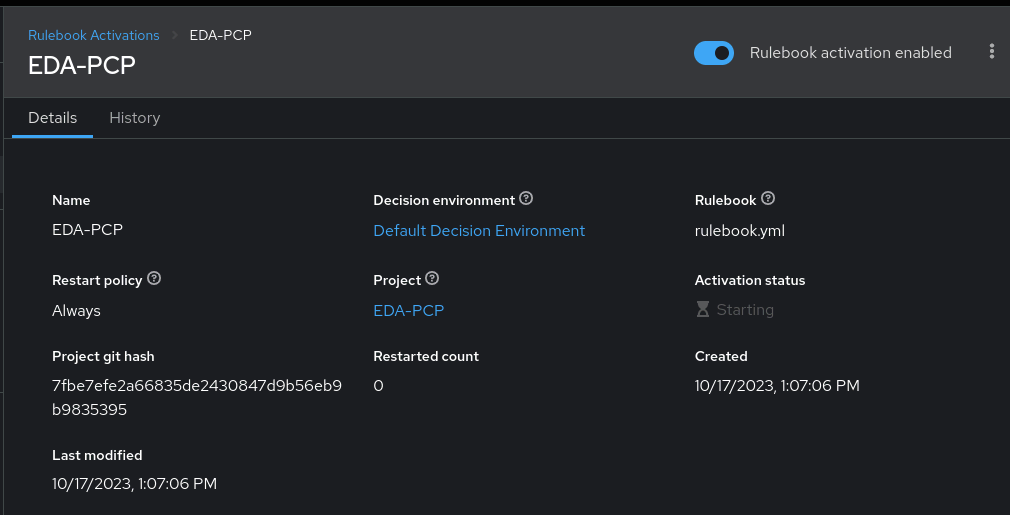

EDA-PCP details with Rulebook activation enabled

We’ll also open TCP port 5000 in the firewall on the Event-Driven Ansible controller system so that it is able to receive webhooks on this port.

Configuring the automation controller

The final step is to configure the eda-test template (that we referenced in the rulebook) on our  automation controller.  This is the template that will run when any of the three RHEL 9 systems have a "High average processor utilization" pmie event.

I’ll define the template that utilizes a project with the following playbook:

- name: EDA response to High average processor utilization event
  hosts: "{{ ansible_eda.event.payload.pcp.pmie.hostname }}"
    - name: Display ansible_eda.event.payload.pcp.pmie.message variable
        msg: "ansible_eda.event.payload.pcp.pmie.message value:  {{ ansible_eda.event.payload.pcp.pmie.message }} "
    - name: Display ansible_eda.event.payload.pcp.pmie.hostname variable
        msg: "ansible_eda.event.payload.pcp.pmie.hostname value:  {{ ansible_eda.event.payload.pcp.pmie.hostname }} "
    - name: Display ansible_eda.event.payload.pcp.pmie.rule variable
        msg: "ansible_eda.event.payload.pcp.pmie.rule value:  {{ ansible_eda.event.payload.pcp.pmie.rule }} "

In the template, it is also important to select the Prompt on launch option for variables.

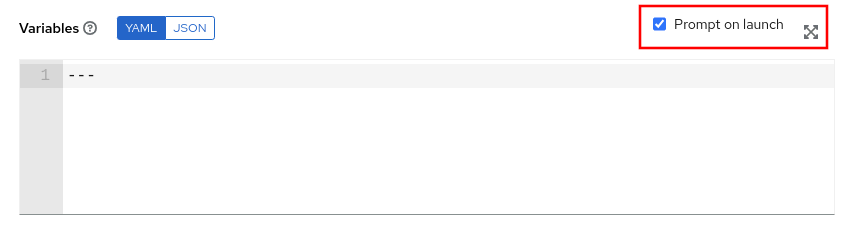

Prompt on launch option checked

This example playbook simply displays the values of the various variables that will be passed to the playbook. In a real world scenario, this playbook could take corrective action to address the high processor utilization by restarting a process, spinning up additional systems to handle the load, creating a ticket to track the incident, etc.

Putting it all together and validating the configuration

At this point everything is configured. The system will be monitoring each of the three RHEL 9 systems (,, and If pmie identifies that any of these have high average processor utilization, the system will send a webhook to the Event-Driven Ansible controller. This will trigger the eda-test template to run (note the hosts: line in the eda-test template playbook will limit the playbook to only run on the system that was the source of the CPU event).

To validate, on the system, I’ll start several processes that will take 100% of the available CPU resources.

After a short time, from the Event-Driven Ansible controller, I can see that the EDA-PCP rulebook activation has incremented the fire count, indicating rules in the rulebook have been run.

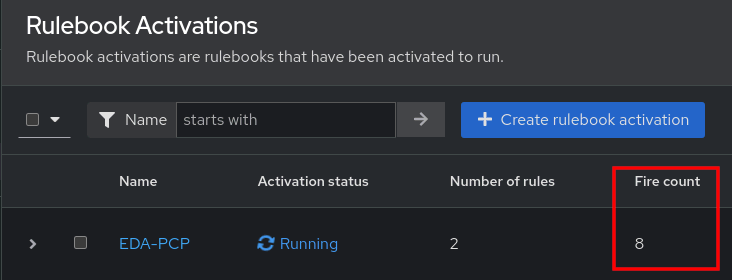

Rulebook Activations with Fire count 8

From the automation controller, I can see that the eda-test template was run on the the system:

eda-test Output


We've explored the techniques required to automatically respond to performance problems with Ansible Playbooks using Event-Driven Ansible. You have all the tools you need now to begin to build a customized solution for your own production environments—add new rules (via pmie), new responses (via EDA rulebooks) and quickly roll these out to monitor as many hosts as you need. Enjoy!
