RBAC Model Around Cluster Sets in Red Hat Advanced Cluster Management for Kubernetes

In this blog, I introduce the RBAC model around a cluster set in Red Hat Advanced Cluster Management for Kubernetes (RHACM) that is available in version 2.3.

Red Hat Advanced Cluster Management for Kubernetes provides end-to-end visibility and control to manage your Kubernetes clusters, and controls your application lifecycle across the hybrid clouds. The following cluster related resources are defined in RHACM:

• cluster set (managedclusterset.cluster.open-cluster-management.io)
• managed cluster (managedcluster.cluster.open-cluster-management.io)
• cluster pool (clusterpool.hive.openshift.io)
• cluster deployment (clusterdeployment.hive.openshift.io)
• cluster claim(clusterclaim.hive.openshift.io)

For managed clusters there are two sets of permissions that you need, a cluster role-binding to the ManagedCluster resource itself and a namespace role-binding to the cluster namespace. It is possible for you to have either or both assignments, an assignment only to the ManagedCluster resource, or an assignment only to the cluster namespace. Similarly, cluster pools, cluster claims, and cluster deployments also have their permissions. The permissions can also be assigned to only one of the them, or some of the them. This leads to the complexity in understanding what the perspective pattern means for both the administrator and user.

In this release, RHACM supports using cluster sets to group and manage these resources and the resource permissions.

Cluster set

Cluster set defines a group of cluster-related resources. Currently, you can add managedclusters, submariner add-ons, and clusterpools resources to a cluster set from the RHACM console when created. In this blog, I demonstrate how to manage the managed clusters, cluster pools, and automatically sync their permissions.

From the command line interface (CLI), you can also add, remove, or transfer the resource to a cluster set by adding the label, cluster.open-cluster-management.io/clusterset=<CLUSTERSET_NAME>. You can only add or remove this label if you are bound to the clusterset-admin permission. To update this label, you must have the permission on both the old and new cluster set.

When one cluster set is created, two cluster roles are generated automatically, cluster set admin and cluster set view. View the following descriptions of the cluster roles:

• Cluster set admin: This role has full, access permissions to all of the Cluster and ClusterPool resources that are assigned to the ManagedClusterSet permission. With this role, you can create clusters, import clusters, and create cluster pools.

• Cluster set view: This role has read-only permissions to all of the Cluster and ClusterPool resources that are assigned to the ManagedClusterSet permission. With this role, you do not have access to create clusters, import clusters, or create cluster pools.

Best practices

Continue reading to learn how different personas with different permissions work in RHACM. Let's define some personas and use these personas to log in to Red Hat OpenShift Container Platform (RHOCP) and RHACM. In the upcoming section, I describe several use-cases on how a cluster administrator manages the team, and how team members provision and manage clusters in their own scope.

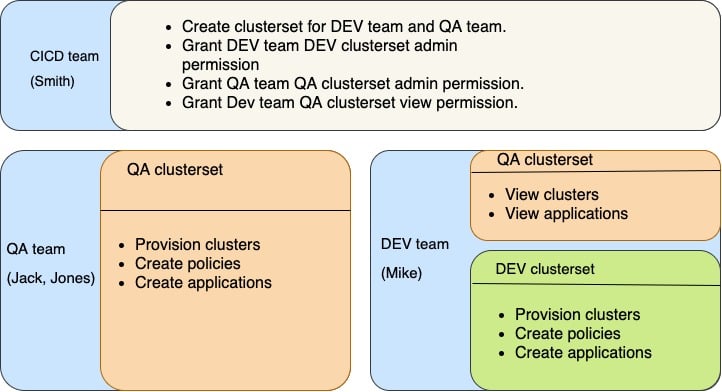

Persona permissions and responsibilities

Imagine the following general workplace scenarios:

Use-case 1: The Continuous Integration/Continuous Deployment team (CICD) creates a RHACM hub cluster, grants the Quality Assurance team (QA) and Developer team (DEV) permissions to make sure they can provision clusters, which means they can create applications and policies in their own clusters. Use-case 2: The QA team members provision some clusters and set some policies for the provisioned clusters. Then, the QA members create an application in the provisioned clusters to test it. Use-case 3: DEV team members view the provisioned clusters created by the QA team, and investigate the application issues if the QA team finds any bugs. DEV team also provisions their clusters and create applications in these clusters.

Continue to follow along to learn how I use the previously mentioned personas to log in to RHOCP and the RHACM console. In the following section, I show several use-cases on how a cluster admin manages the QA and DEV teams, and how QA and DEV team members provision and manage clusters in their own scope.

Use-cases

Use-case 1

CICD team creates cluster set for DEV and QA team, grants dev-clusterset admin permission to DEV team, grants qa-clusterset admin permission to QA team, grants qa-clusterset view permission to DEV team.

1. Smith creates two clustersets, dev-clusterset and qa-clusterset.

   • From the navigation menu in the RHACM hub cluster, select Infrastructure > Clusters > Cluster sets tab.
   • Select the Create cluster set button. Enter dev-clusterset as the cluster set name in the dialog box.
   • Select Create to create clusterset.
   • Repeat these steps to create a qa-clusterset.

2. Smith grants dev-clusterset admin permission to the DEV team.

   • From the navigation menu in the hub cluster, select Infrastructure > Clusters > Cluster sets tab.
   • Select dev-clusterset > Access management tab.
   • Select the Add user or group button. A dialog box is displayed. Then select dev group.
   • Select the Cluster set admin role.
   • Select Add to submit the changes.
   • The dev group is now displayed in the table.

3. Smith grants qa-clusterset admin permission to the QA team and grants qa-clusterset view permission to the DEV team.

   • From the navigation menu in the hub cluster select Infrastructure > Clusters > Cluster sets tab.
   • Select qa-clusterset > Access management tab.
   • Select the Add user or group button. A dialog box is displayed. Then select the qa group.
   • Select the Cluster set admin role
   • Select Add to submit the changes.
   • The qa group is displayed in the table.
   • Repeat these steps to add the Cluster set view role to the dev group.

Use-case 2

QA team members provision clusters, create policy for each cluster, and create an application to test it.

1. Jack creates three projects, qa-clusterpool-namespace, qa-application-namespace,qa-policy-namespace from the RHOCP console.

   • Jack logs in to the RHOCP console.
   • From the navigation menu select Home > Projects.
   • Click the Create Project button.
   • Click Create to create the project.
   • Repeat these steps to create qa-application-namespace,qa-policy-namespace.

2. Jack shares the qa-application-namespace admin permission to the QA team, and view permission to the DEV team.

   • Click qa-application-namespace > Role Bindings > Create bindings.
   • A dialog box is displayed. Select admin for the Role field, select qa for the Group field, and then click Creat to create it.
   • Click Create bindings.
   • A dialog box is displayed. Select view for the Role field, select dev for the Group field, then click Create to create it.

3. Jack creates a credential for the AWS cloud provider named 'jack-aws-credentialinqa-clusterpool-namespace`.

   • Go to Credentials, then click Add credentials.
   • Select the cloud provider and data center credentials, then input the credential information to create a credential named jack-aws-credential in the namespace, qa-clusterpool-namespace.

4. Jack creates a managed cluster named qa-managedcluster1 in qa-clusterset.

   • From the navigation menu select Infrastructure > Clusters.
   • Click the Managed clusters tab, then click the Create cluster button.
   • A dialog box is displayed. Enter qa-managedcluster1 in the Cluster name field, select qa-clusterset in the Cluster set field. Then click Next.

   Notes: Jack is a non-cluster admin, so he must select one cluster set when he creates managed clusters, if not, the create request is denied.

   • Select the type of Kubernetes distribution and select a cloud provider, then click Next.
   • Select Release image and select jack-aws-credential as the provider connection.
   • Use the default values that are provided and click Create in the last step to create the managed cluster.
   • The qa-managedcluster1 is displayed in the table and the status is Creating.
   • After about 30 minutes, the status changes to Ready, which means the managed cluster is created successfully.

5. Jack creates a cluster pool named qa-clusterpool in qa-clusterpool-namespace.

   • From the navigation menu, select Infrastructure > Clusters .
   • Click the Cluster pools tab, click the Create cluster pool button.
   • A dialog box is displayed. Enter qa-clusterpool as the cluster pool name, select qa-clusterpool-namespace as the cluster pool namespace, select qa-clusterset as the cluster set, and then click Next.

   Notes: Jack is a non-cluster admin, so he must select one cluster set, if not, the create request is denied. After the cluster pool is created in this cluster set, the entire cluster pool namespace (qa-clusterpool-namespace) is shared to the QA team. All team members in the QA team have admin permission to the qa-clusterpool-namespace namespace, and all team members in the DEV team have view permission to qa-clusterpool-namespace namespace. So if you are cluster-admin, please create a namespace for each team to create a cluster pool.

   • Select the type of Kubernetes distribution and select a cloud provider, then click Next.
   • Select Release image and selectjack-aws-credential as the provider connection.
   • Use the default values that are provided and click Create in the last step to create the cluster pool.
   • The qa-clusterpool is displayed in the table.
   • A few minutes later, the cluster pool clusters, qa-clusterpool-xxxxx, are created and the status is Creating.
   • After about 30 minutes, the cluster pool cluster, qa-clusterpool-xxxxx, status changed to Hibernating.

6. Jack claims a cluster from the cluster pool qa-clusterpool.

   • From the navigation menu, select Infrastructure > Clusters.
   • Click the Cluster pools tab.
   • From the qa-clusterpool row, click Claim cluster.
   • A dialog box is displayed. Enter the qa-claimed-cluster as the cluster claim name.
   • The qa-claimed-cluster is shown in the managed clusters table.

   Note: When you claim a cluster from a cluster pool, the claimed cluster is added to the cluster set automatically.

7. Jack creates a policy in qa-policy-namespace.

   • From the navigation menu, select Governance.
   • Click the Create policy button.
   • Complete the Create policy form by entering or selecting the following parameter values:
     • Name: qa-policy-grc
     • Namespace: qa-policy-namespace
     • Specifications: Namespace - Must have namespace 'prod'
     • Cluster selector: name: qa-claimed-cluster
   • Click Create to create the policy.

8. Jack creates an application in qa-application-namespace.

   • From the navigation menu, select Applications.
   • From the Overview tab, click Create application.
   • Complete the form by entering or selecting the following parameter values:
     • Name: qa-helloworld-app
     • Namespace: qa-application-namespace
     • Repository types: Git
     • URL: https://github.com/ldpliu/app-samples.git
     • Branch: main
     • Path: helloworld
     • Select Deploy application resources only on clusters matching specified labels
     • Label: name
     • Value: qa-claimed-cluster
   • Click Save to create the application.

9. Jones is also on the QA team, so he has admin permission to the cluster pool (qa-clusterpool), permission to the managed cluster (qa-managedcluster1) and permission to the claimed cluster (qa-claimed-cluster). Jones can also destroy the managed cluster, qa-managedcluster1.

   • Jones logs in to the RHACM console.
   • From the navigation menu, select Infrastructure > Clusters.
   • The cluster pool, qa-clusterpool, is displayed in the Managed cluster table.
   • Select the Managed clusters tab.
   • Destroy the qa-managedcluster1 by selecting the Action icon (...) in the rows.
   • Click Destroy cluster to destroy the managed cluster.

10. Jones scales the cluster pool qa-clusterpool.

    • From the navigation menu, select Infrastructure > Clusters
    • Select the Cluster pools tab.
    • Click the Action icon (...) in the qa-clusterpool row of the Cluster pool table.
    • Click Scale cluster pool.
    • A dialog is displayed.
    • Enter 2 as the cluster pool size, then click Scale.

Use-case 3

DEV team members view QA team environment to debug applications, and provision clusters in the dev-clusterset, then create an application in the managed cluster, which is in the dev-clusterset.

1. Mike can view managed clusters and cluster pools in the qa-clusterset.

   • From the navigation menu, select Infrastructure > Clusters.
   • Select the Managed clusters tab.
   • The claimed cluster, qa-claimed-cluster, is shown in the Managed clusters table.
   • When Mike clicks the Action icon (...) in the qa-managedcluster1 row, the action Update is unavailable.
   • From the navigation menu, click Infrastructure > Clusters
   • Click the Cluster pools tab to view the cluster pool, qa-clusterpool, from the Cluster pool table.
   • When Mike clicks the Action icon (...) in the qa-clusterpool row, the action Update is unavailable.

2. Mike can view applications in the qa-application-namespace.

   • From the navigation menu, select Applications > Overview.
   • The application, qa-helloworld-app is shown in the table.
   • Select qa-helloworld-app.
   • The application details are shown, and you can click deployment/service/pod to see resource details, which are deployed in target clusters.

3. Mike creates a namespace named dev-application-namespace, where the application is created.

   • Mike logs in to the RHOCP console.
   • From the navigation menu, select Home > Projects. Then click the Create Project button.
   • A dialog box is displayed. Enter dev-application-namespace as the name.
   • Click Create to create the project.

4. Mike creates a credential named mike-aws-credential for the cloud provider in dev-clusterpool-namespace.

   • Mike logs in to the RHACM console.
   • From the navigation menu, select Credentials.
   • Click the Add credentials button.
   • Select the cloud provider and data center credentials, then enter the credential information to create the credential mike-aws-credential in dev-clusterpool-namespace namespace.

5. Mike creates a managed cluster named dev-managedcluster1 in dev-clusterset.

   • From the navigation menu, select Infrastructure > Clusters.
   • Click the Managed clusters tab, then click the Create cluster button.
   • A dialog box is displayed. Enter dev-managedcluster1 as the cluster name, select dev-clusterset as the cluster set, and then click Next.
   • Select the type of Kubernetes distribution and select a cloud provider. Then click Next.
   • Select Release image and mike-aws-credential as the provider connection.
   • Use the default values that are provided and click Create in the last step to create the managed cluster.
   • The dev-managedcluster1 is displayed in the table and the status is Creating.
   • After about 30 minutes, the status changeds to Ready, which means the managed cluster is created successfully.

6. Mike creates an application in dev-application-namespace.

   • From the navigation menu, select Applications > Overview.
   • Click the Create application button.
   • Enter or select the following values for each parameter field:
     • Name: qa-helloworld-app
     • Namespace: qa-application-namespace
     • Repository types: Git
     • URL: https://github.com/ldpliu/app-samples.git
     • Branch: main
     • Path: helloworld
     • Select Deploy application resources only on clusters matching specified labels, and enter the following values for the parameters:
     • Label: name
     • Value: qa-claimed-cluster

Conclusion

Throughout this blog, I have described use-cases on how a cluster admin manages the QA and DEV teams, and how QA and DEV team members provision and manage clusters in their own scope. Thanks for learning more about managing the roles in your cluster. I hope the use-cases in this blog have been beneficial for you.
