Overview

Building high performance storage services for OpenShift requires taking a holistic look at the overall architecture of the software defined storage stack. Eliminating unnecessary layers can pay dividends, and this is why we’ve been working hard to get OpenShift Container Storage as close to the hardware as possible. Prior to 4.3, the only storage OCS could consume were persistent volumes from either the Amazon Web Services Elastic Block Storage provisioner or the vSphere Volume provisioner. This blog post will detail a new feature that will be in Technology Preview for our 4.3 release of OCS, local storage devices. In VMware environments, this translates to local disks surfaced as VMDKs, as RDMs, or with DirectPath I/O. In Amazon EC2, this translates to instance storage, and we are really excited with what we are seeing with both I3 and I3en instance families. We’ve put together this post so that folks like you could walk through how to setup OCS using instance storage in EC2, and familiarize themselves with this powerful new feature.

Important: Installing OpenShift Container Storage on bare metal, Amazon EC2, and VMware using the local storage operator is a Technology Preview feature. Technology Preview features are not supported with Red Hat production service level agreements (SLAs) and might not be functionally complete. Red Hat does not recommend using them in production. These features provide early access to upcoming product features, enabling customers to test functionality and provide feedback during the development process.

Installing OpenShift Container Storage Operator using Operator Hub

Start with creating the openshift-storage namespace.

oc create namespace openshift-storage

You must add the monitoring label to this namespace. This is required to get prometheus metrics and alerts for the OCP storage dashboards. To label the openshift-storage namespace use the following command:

oc label namespace openshift-storage "openshift.io/cluster-monitoring=true"

Now switch over to your Openshift Web Console. You can get your URL by issuing the command below to get the OCP 4 console route.

oc get -n openshift-console route console

Once you are logged in, navigate to the OperatorHub menu.

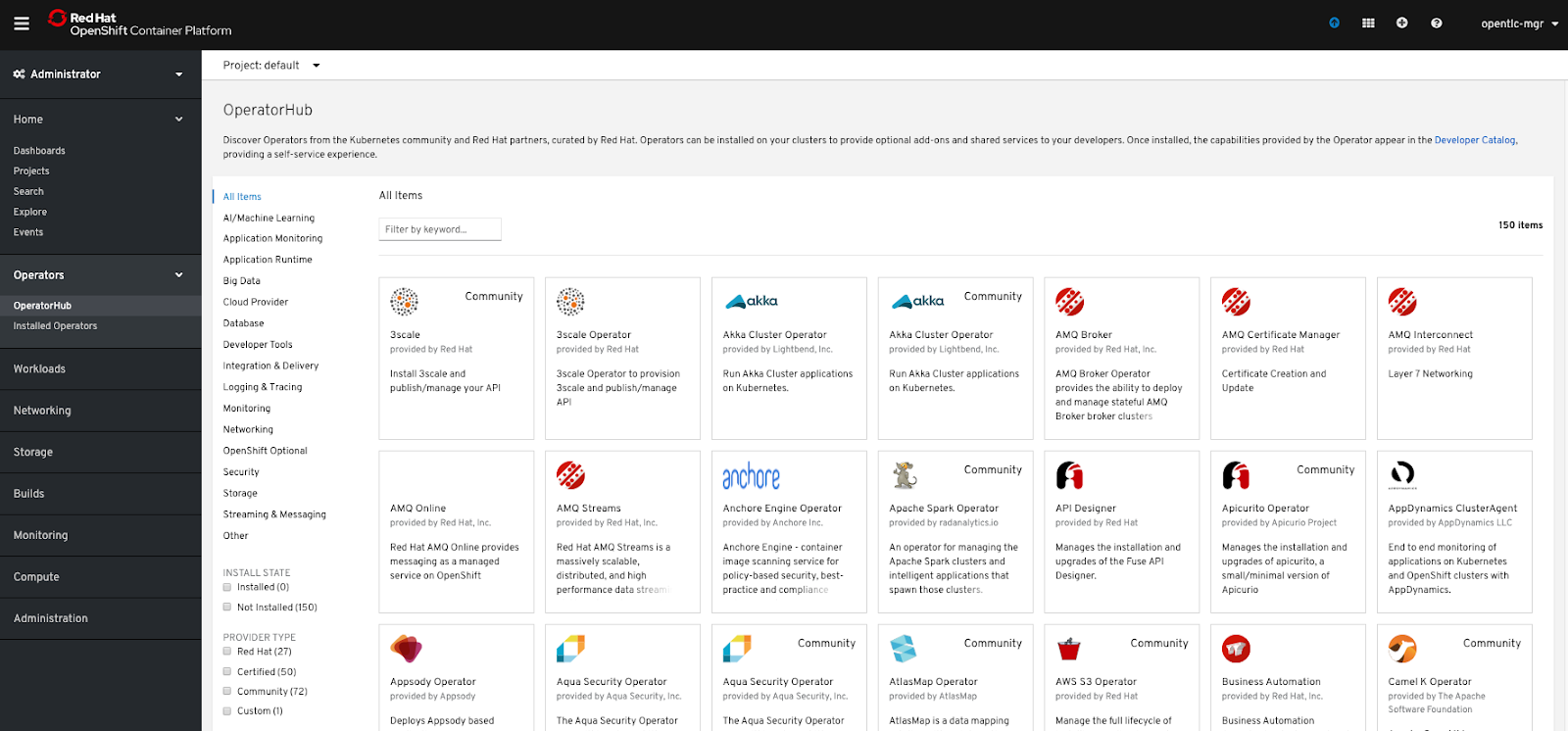

Figure 1. OCP OperatorHub

Now type openshift container storage in the Filter by keyword…​ box.

Figure 2. OCP OperatorHub filter on OpenShift Container Storage Operator

Select OpenShift Container Storage Operator and then select Install.

On the next screen make sure the settings are as shown in this figure. Also, make sure to change to "A specific namespace on the cluster" and choose the namespace openshift-storage.

Figure 3. OCP Subscribe to OpenShift Container Storage

Note: Do not change any configuration other than the namespace as shown above.

Click Subscribe.

Now you can go back to your terminal window to check the progress of the installation.

watch oc -n openshift-storage get csv

Example output:

NAME                            DISPLAY                       VERSION        REPLACES   PHASE
lib-bucket-provisioner.v1.0.0   lib-bucket-provisioner        1.0.0                     Succeeded
ocs-operator.v4.3.0             OpenShift Container Storage   4.3.0                     Succeeded

You can exit by pressing Ctrl+C

The resource csv is a shortened word for

clusterserviceversions.operators.coreos.com.

Caution: Please wait until both operators PHASE changes to Succeeded. Reaching this state can take several minutes.

You will now also see operator pods have been started in the openshift-storage namespace:

oc -n openshift-storage get pods

Example output:

NAME                                      READY   STATUS    RESTARTS   AGE
lib-bucket-provisioner-55f74d96f6-mkrz2   1/1     Running   0          3m48s
noobaa-operator-68c8fbdff5-kgxxt          1/1     Running   0          3m41s
ocs-operator-78d98758db-dwc8h             1/1     Running   0          3m41s
rook-ceph-operator-55cb44fcfc-wxppc       1/1     Running   0          3m41s

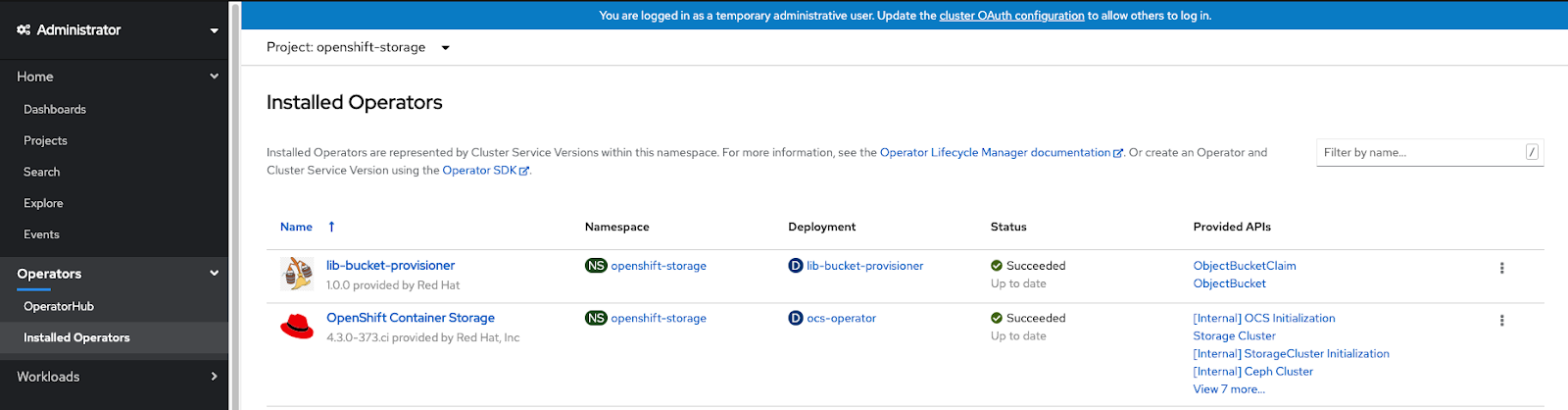

Navigate to the Operators menu on the left and select Installed Operators. Make sure the selected project at the top of the UI pane is set to openshift-storage. What you see should be similar to the following example:



Now that the operator pods are running, you can create a Storage Cluster.

OpenShift Container Storage on AWS Instance Store

Use this procedure to install OpenShift Container Storage (OCS) Amazon EC2 instances with Instance Storage. Instance Storage is the most performant category of block storage available in EC2. For example, larger instances from the I3en family of instances are capable of servicing 2 million random IOPs at 4KB block sizes via directly attached NVMe devices. Instance Storage devices are always directly attached to the host system.

Note: The following sections use YAML files and CLI to create resources used to deploy OCS 4 on local storage devices. In future releases of OCP 4 and OCS 4 these operations will have the option of being done using the Openshift Web Console UI making using local storage easier and less error prone.

Prerequisites

  • You must have at least 3 OCP worker nodes in the cluster with locally attached storage devices on each of them.
  • Each worker node must have a minimum of 12 CPUs and 64 GB Memory.
  • Each of the 3 worker nodes must have at least one available raw block device available to be used by OCS (e.g., 100 GB size).
  • You must have a minimum of three labeled worker nodes.
    • Each OCP worker node must have a specific label to deploy OCS Pods. To label the nodes use the following command:
oc label node <NodeName>
cluster.ocs.openshift.io/openshift-storage=''

Note: Make sure to add this label to all OCP workers that have local storage devices to be used by OCS.

  • No other storage providers managing locally mounted storage on the storage nodes should be present that will conflict with the Local Storage Operator (LSO).

Label Verification

Amazon EC2 zone and region topology labels are dynamically applied to OCP nodes by the AWS Cloud Provider. In VMware or bare metal environments, rack topology labels can be applied by a cluster administrator prior to OCS being deployed. OCS inspects zone and rack topology labels and uses them to inform placement policies for data availability and durability.

Note: OCS requires at least three failure domains for data safety and the domains should be symmetrical in terms of node quantity. If the OCP nodes used for the OCS deployment do not have pre-existing topology labels OCS will generate three virtual racks using topology.rook.io/rack topology labels.

The following command will output a list of nodes with the OCS label, and print a column for each of the topology labels OCS takes into consideration.

oc get nodes -L failure-domain.beta.kubernetes.io/zone,failure-domain.beta.kubernetes.io/rack,failure-domain.kubernetes.io/zone,failure-domain.kubernetes.io/rack -l cluster.ocs.openshift.io/openshift-storage=''

If the output from this command does not print any topology labels, then it is safe to proceed.

If the output from this command shows at least three existing unique topology labels (eg. three different racks, or three different zones), then it is safe to proceed.

If there are existing rack labels and there are less than 3 different values (e.g., 2 nodes in rack1 and 1 node in rack2 only), then different nodes should be labeled for OCS.

Installing the Local Storage Operator

Start with creating the local-storage namespace.

oc new-project local-storage

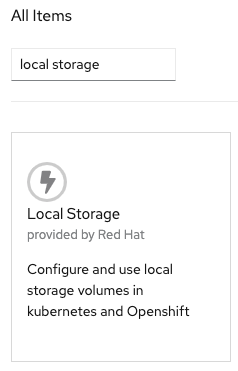

Now switch over to your Openshift Web Console and select OperatorHub. Type local storage in the Filter by keyword…​ box.



Select Local Storage Operator and then select Install.

On the next screen make sure the settings are as shown in this figure. Also, make sure to change to "A specific namespace on the cluster" and chose namespace local-storage.

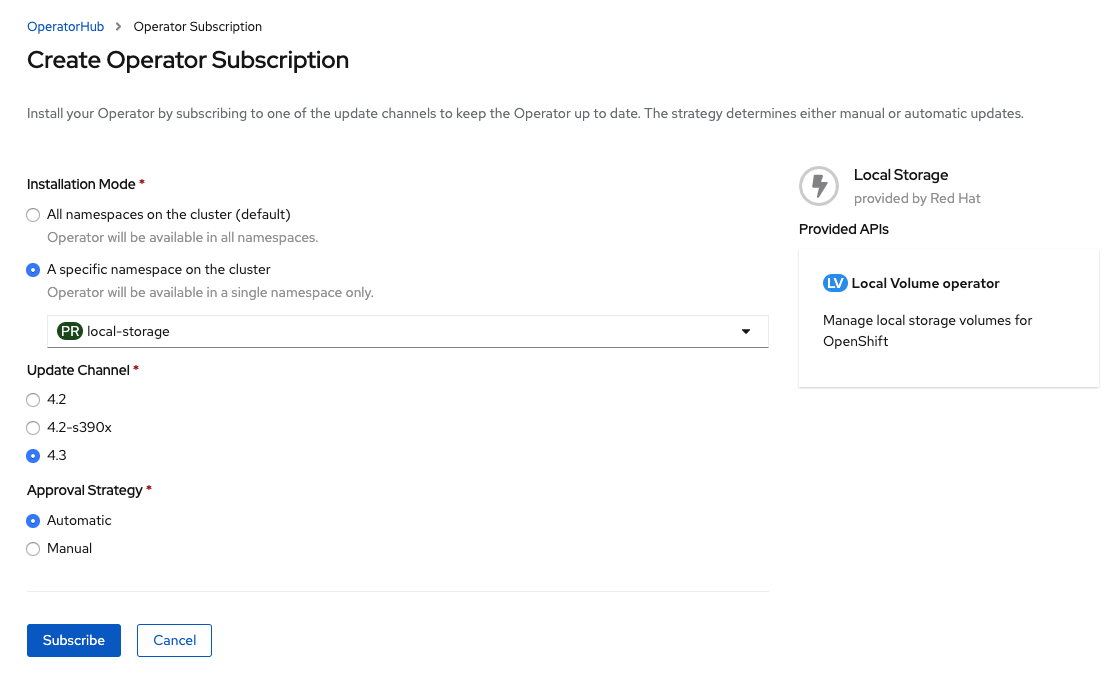

Figure 4. OCP Subscribe to Local Storage Operator

Note

Do not change any configuration other than the namespace as shown above.

Click Subscribe.

Now you can go back to your terminal window to check the progress of the installation.

oc -n local-storage get pods

Example output:

NAME                                     READY   STATUS    RESTARTS   AGE
local-storage-operator-765dc5b87-vfh69   1/1     Running   0          23s

The Local Storage Operator (LSO) has been successfully installed. Now move on to creating local persistent volumes (PVs) on the storage nodes using LocalVolume Custom Resource (CR) files.

Finding Available Storage Devices

Using LSO to create PVs can be done for bare metal, Amazon EC2, or VMware storage devices. What you must know is the exact device name on each of the 3 or more OCP worker nodes you labeled with OCS label cluster.ocs.openshift.io/openshift-storage=''. The method to do this is to logon to each node and verify the device names as well, the size of each device, and that the device is available.

Logon to each worker node that will be used for OCS resources and find the unique by-id device name for each available raw block device. You will want to copy these values to a clipboard for the next step.

oc debug node/<NodeName>

Example output:

oc debug node/ip-10-0-135-71.us-east-2.compute.internal
Starting pod/ip-10-0-135-71us-east-2computeinternal-debug ...
To use host binaries, run `chroot /host`
Pod IP: 10.0.135.71
If you don't see a command prompt, try pressing enter.
sh-4.2# chroot /host
sh-4.4# lsblk
NAME                         MAJ:MIN RM   SIZE RO TYPE MOUNTPOINT
xvda                         202:0    0   120G  0 disk
|-xvda1                      202:1    0   384M  0 part /boot
|-xvda2                      202:2    0   127M  0 part /boot/efi
|-xvda3                      202:3    0     1M  0 part
`-xvda4                      202:4    0 119.5G  0 part
 `-coreos-luks-root-nocrypt 253:0    0 119.5G  0 dm   /sysroot
nvme0n1                      259:0    0   1.7T  0 disk
nvme1n1                      259:1    0   1.7T  0 disk

After you know which local devices are available, in this case nvme0n1 and nvme1n1, you can now find the by-id, a unique name depending on the hardware serial number for each device.

sh-4.4# ls -l /dev/disk/by-id/
total 0
lrwxrwxrwx. 1 root root 10 Mar 17 16:24 dm-name-coreos-luks-root-nocrypt -> ../../dm-0
lrwxrwxrwx. 1 root root 13 Mar 17 16:24 nvme-Amazon_EC2_NVMe_Instance_Storage_AWS10382E5D7441494EC -> ../../nvme0n1
lrwxrwxrwx. 1 root root 13 Mar 17 16:24 nvme-Amazon_EC2_NVMe_Instance_Storage_AWS60382E5D7441494EC -> ../../nvme1n1
lrwxrwxrwx. 1 root root 13 Mar 17 16:24 nvme-nvme.1d0f-4157533130333832453544373434313439344543-416d617a6f6e20454332204e564d6520496e7374616e63652053746f72616765-00000001 -> ../../nvme0n1
lrwxrwxrwx. 1 root root 13 Mar 17 16:24 nvme-nvme.1d0f-4157533630333832453544373434313439344543-416d617a6f6e20454332204e564d6520496e7374616e63652053746f72616765-00000001 -> ../../nvme1n1

In this case the EC2 instance type is i3.4xlarge so we know all 3 worker nodes are the same type of machine but their by-id identifier is unique for every local device. As shown above, the results of lsblk shows the last 2 devices nvme0n1 and nvme1n1 are available with a size of 1.7 TB.

For each worker node that has the OCS label (minimum 3) you will need to find the unique by-id. For this node they are:

  • nvme-Amazon_EC2_NVMe_Instance_Storage_AWS10382E5D7441494EC
  • nvme-Amazon_EC2_NVMe_Instance_Storage_AWS60382E5D7441494EC



This example just shows results for one node so this method needs to be repeated for the other nodes that have storage devices to be used by OCS. Next step is to create new PVs using these devices.

Using the LSO LocalVolume Custom Resource to Create PVs

The next step is to create the LSO LocalVolume CR which in turn will create PVs and a new StorageClass for creating Ceph storage. For this example only device nvme0n1 will be used on each node using the by-id unique identifier in the CR.

Before you create this resource make sure you have labeled your OCP worker nodes with the OCS label.

oc get nodes -l cluster.ocs.openshift.io/openshift-storage -o jsonpath='{range .items[*]}{.metadata.name}{"\n"}'

Example output:

ip-10-0-135-71.us-east-2.compute.internal
ip-10-0-145-125.us-east-2.compute.internal
ip-10-0-160-91.us-east-2.compute.internal

Now that you know a minimum of 3 nodes are labeled you can proceed. The label is important because it is used as the nodeSelector below.

LocalVolume CR local-storage-block.yaml using OCS label as Node Selector and by-id device identifier:

apiVersion: local.storage.openshift.io/v1
kind: LocalVolume
metadata:
 name: local-block
 namespace: local-storage
spec:
 nodeSelector:
   nodeSelectorTerms:
   - matchExpressions:
       - key: cluster.ocs.openshift.io/openshift-storage
         operator: In
         values:
         - ""
 storageClassDevices:
   - storageClassName: localblock
     volumeMode: Block
     devicePaths:
       - /dev/disk/by-id/nvme-Amazon_EC2_NVMe_Instance_Storage_AWS10382E5D7441494EC   # <-- modify this line
       - /dev/disk/by-id/nvme-Amazon_EC2_NVMe_Instance_Storage_AWS1F45C01D7E84FE3E9   # <-- modify this line
       - /dev/disk/by-id/nvme-Amazon_EC2_NVMe_Instance_Storage_AWS136BC945B4ECB9AE4   # <-- modify this line

Create this LocalVolume CR using the following command:

oc create -f local-storage-block.yaml

Example output:

localvolume.local.storage.openshift.io/local-block created

Now that the CR is created let’s see the results.

oc -n local-storage get pods

Example output:

NAME                                     READY   STATUS    RESTARTS   AGE
local-block-local-diskmaker-kkp7j        1/1     Running   0          5m1s
local-block-local-diskmaker-nqcgl        1/1     Running   0          5m1s
local-block-local-diskmaker-szd72        1/1     Running   0          5m1s
local-block-local-provisioner-bsztg      1/1     Running   0          5m1s
local-block-local-provisioner-g9zgf      1/1     Running   0          5m1s
local-block-local-provisioner-gzktp      1/1     Running   0          5m1s
local-storage-operator-765dc5b87-vfh69   1/1     Running   0          53m

There should now be a new PV for each of the local storage devices on the 3 worker nodes. Remember when we checked above there were 2 available storage devices per worker node. Only device nvme0n1 was used on each worker node and the size is 1.7 TB.

oc get pv

Example output:

NAME                CAPACITY   ACCESS MODES   RECLAIM POLICY   STATUS      CLAIM   STORAGECLASS   REASON   AGE
local-pv-40bd1474   1769Gi     RWO            Delete           Available           localblock              5m53s
local-pv-66631f85   1769Gi     RWO            Delete           Available           localblock              5m52s
local-pv-c56e9c     1769Gi     RWO            Delete           Available           localblock              5m53s

And finally we should have an additional StorageClass as a result of creating this LocalVolume CR. This StorageClass will be used when creating PVCs in the next step of creating a StorageCluster.

oc get sc

Example output:

NAME            PROVISIONER                    AGE
gp2 (default)   kubernetes.io/aws-ebs          7h14m
localblock      kubernetes.io/no-provisioner   7m46s

The next sections will detail how to create and validate the OCS StorageCluster using Amazon EC2, VMware, and bare metal local storage devices.

Creating the OCS Storage Cluster on AWS

For Amazon EC2 instance that have local storage devices (e.g., i3.4xlarge) we need to create a StorageCluster Custom Resource (CR) that will use the localblock StorageClass and 3 of the 6 PVs created in the previous section.

StorageCluster CR cluster-service-AWS.yaml using gp2 and localblock storageclasses:

apiVersion: ocs.openshift.io/v1
kind: StorageCluster
metadata:
 name: ocs-storagecluster
 namespace: openshift-storage
spec:
 manageNodes: false
 monPVCTemplate:
   spec:
     accessModes:
     - ReadWriteOnce
     resources:
       requests:
         storage: 10Gi
     storageClassName: gp2
     volumeMode: Filesystem
 storageDeviceSets:
 - count: 1
   dataPVCTemplate:
     spec:
       accessModes:
       - ReadWriteOnce
       resources:
         requests:
           storage: 1
       storageClassName: localblock
       volumeMode: Block
   name: ocs-deviceset
   placement: {}
   portable: false
   replica: 3
   resources: {}

Important: The storage size for storageDeviceSets must be less than or equal to the size of the raw block devices. Setting the value to 1 will guarantee that this requirement is met.

Create this StorageCluster CR using the YAML file above (cluster-service-AWS.yaml).

oc create -f cluster-service-AWS.yaml

Example output:

storagecluster.ocs.openshift.io/ocs-storagecluster created

Validating OCS Storage Cluster Deployment

Once the StorageCluster is created OCS pods will start showing up in the openshift-storage namespace. For the deployment to completely finish could take up to 10 minutes so be patient. Below you will find examples of a successful deployment of the OCS Pods and PVCs.

oc -n openshift-storage get pods

Example output:

NAME                                                                  READY   STATUS      RESTARTS   AGE
pod/csi-cephfsplugin-kzfrx                                            3/3     Running     0          7m49s
pod/csi-cephfsplugin-provisioner-67777bbbc9-j28s9                     5/5     Running     0          7m49s
pod/csi-cephfsplugin-provisioner-67777bbbc9-nrghg                     5/5     Running     0          7m49s
pod/csi-cephfsplugin-vm4qw                                            3/3     Running     0          7m49s
pod/csi-cephfsplugin-xzqc6                                            3/3     Running     0          7m49s
pod/csi-rbdplugin-9jvmd                                               3/3     Running     0          7m50s
pod/csi-rbdplugin-bzpb2                                               3/3     Running     0          7m50s
pod/csi-rbdplugin-provisioner-8569698c9b-hdzgh                        5/5     Running     0          7m49s
pod/csi-rbdplugin-provisioner-8569698c9b-ll9wm                        5/5     Running     0          7m49s
pod/csi-rbdplugin-tf68q                                               3/3     Running     0          7m50s
pod/lib-bucket-provisioner-55f74d96f6-mkrz2                           1/1     Running     0          162m
pod/noobaa-core-0                                                     1/1     Running     0          3m37s
pod/noobaa-db-0                                                       1/1     Running     0          3m37s
pod/noobaa-endpoint-679dfc8669-2cxt5                                  1/1     Running     0          2m12s
pod/noobaa-operator-68c8fbdff5-kgxxt                                  1/1     Running     0          162m
pod/ocs-operator-78d98758db-dwc8h                                     1/1     Running     0          162m
pod/rook-ceph-crashcollector-ip-10-0-135-71-7f4647b5f5-cp4nt          1/1     Running     0          4m35s
pod/rook-ceph-crashcollector-ip-10-0-145-125-f765fc64b-tnlrp          1/1     Running     0          5m42s
pod/rook-ceph-crashcollector-ip-10-0-160-91-5fb874cd6c-4bqvl          1/1     Running     0          6m29s
pod/rook-ceph-drain-canary-86f0e65050c75c523a149de3c6c7b27c-85f4255   1/1     Running     0          3m41s
pod/rook-ceph-drain-canary-a643022da9a50239ad6fc41164ccb7c4-7cnjt4n   1/1     Running     0          3m42s
pod/rook-ceph-drain-canary-e290c9c7dc116eb65fcb3ad57067aa65-54mgcfs   1/1     Running     0          3m38s
pod/rook-ceph-mds-ocs-storagecluster-cephfilesystem-a-7d7d5b5fxqdbs   1/1     Running     0          3m24s
pod/rook-ceph-mds-ocs-storagecluster-cephfilesystem-b-6899b5b6znmtx   1/1     Running     0          3m23s
pod/rook-ceph-mgr-a-544b89b5c6-l6s2l                                  1/1     Running     0          4m14s
pod/rook-ceph-mon-a-b74c86ddf-dq25t                                   1/1     Running     0          5m15s
pod/rook-ceph-mon-b-7cb5446957-kxz4w                                  1/1     Running     0          4m51s
pod/rook-ceph-mon-c-56d689c77c-gb5n9                                  1/1     Running     0          4m35s
pod/rook-ceph-operator-55cb44fcfc-wxppc                               1/1     Running     0          162m
pod/rook-ceph-osd-0-74b8654667-kccs8                                  1/1     Running     0          3m42s
pod/rook-ceph-osd-1-7cc9444867-wzvmh                                  1/1     Running     0          3m41s
pod/rook-ceph-osd-2-5b5c4dcd57-tr5ck                                  1/1     Running     0          3m38s
pod/rook-ceph-osd-prepare-ocs-deviceset-0-0-dq89h-pzh4d               0/1     Completed   0          3m55s
pod/rook-ceph-osd-prepare-ocs-deviceset-1-0-wnbrp-7ls8b               0/1     Completed   0          3m55s
pod/rook-ceph-osd-prepare-ocs-deviceset-2-0-xst6j-mjpv7               0/1     Completed   0          3m55s
oc -n openshift-storage get pvc

Example output:

NAME                                            STATUS   VOLUME                                     CAPACITY   ACCESS MODES   STORAGECLASS                  AGE
persistentvolumeclaim/db-noobaa-db-0            Bound    pvc-99634049-ee21-490d-9fa7-927bbf3c87bc   50Gi       RWO            ocs-storagecluster-ceph-rbd   4m16s
persistentvolumeclaim/ocs-deviceset-0-0-dq89h   Bound    local-pv-40bd1474                          1769Gi     RWO            localblock                    4m35s
persistentvolumeclaim/ocs-deviceset-1-0-wnbrp   Bound    local-pv-66631f85                          1769Gi     RWO            localblock                    4m35s
persistentvolumeclaim/ocs-deviceset-2-0-xst6j   Bound    local-pv-c56e9c                            1769Gi     RWO            localblock                    4m35s
persistentvolumeclaim/rook-ceph-mon-a           Bound    pvc-0cc612ce-22ff-4f3c-bc0d-147e88d45df3   10Gi       RWO            gp2                           7m55s
persistentvolumeclaim/rook-ceph-mon-b           Bound    pvc-7c0187c1-1000-4d3b-8b31-d17235328082   10Gi       RWO            gp2                           7m44s
persistentvolumeclaim/rook-ceph-mon-c           Bound    pvc-e30645cd-1733-46c5-b0bf-566bdd0d2ab8   10Gi       RWO            gp2                           7m34s

If we now look again at the PVs again you will see they are now in a Bound state versus Available as they were before OCS StorageCluster was created.

oc get pv | grep localblock

Example output:

local-pv-40bd1474                          1769Gi     RWO            Delete           Bound       openshift-storage/ocs-deviceset-0-0-dq89h   localblock                             46m
local-pv-66631f85                          1769Gi     RWO            Delete           Bound       openshift-storage/ocs-deviceset-1-0-wnbrp   localblock                             46m
local-pv-c56e9c                            1769Gi     RWO            Delete           Bound       openshift-storage/ocs-deviceset-2-0-xst6j   localblock                             46m

You can check the status of the storage cluster with the following:

oc get storagecluster -n openshift-storage

Example output:

NAME                 AGE   PHASE   CREATED AT             VERSION
ocs-storagecluster   14m   Ready   2020-03-11T22:52:04Z   4.3.0

If it says Ready you can continue on to using OCS storage for applications.

Scaling out Storage by adding Nodes to OpenShift Container Storage

You must have three OCP worker nodes with the same storage type and size attached to each node (for example, 2TB NVMe drive) as the original OCS StorageCluster was created with.

  • Each OCP worker node must have a specific label to deploy OCS Pods. To label the nodes use the following command:
oc label node <NodeName> cluster.ocs.openshift.io/openshift-storage=''

Once the new nodes are labeled you are ready to add the new local storage device(s) available in these new worker nodes to the OCS StorageCluster. Follow the process in the next section to create new PVs and increase the number of Ceph OSDs. The new OSDs (3 minimum) most likely will be scheduled by OpenShift on the new worker nodes with the OCS label.

Scaling up Storage by adding Devices to OpenShift Container Storage

Use this procedure to add storage capacity (additional storage devices) to your configured Red Hat OpenShift Container Storage worker nodes.

To add storage capacity to existing OCP nodes with OCS installed, you will need to find the unique by-id identifier for available devices that you want to add, a minimum of one device per worker node. See Finding Available Storage Devices for more details. Make sure to do this process for all existing nodes (minimum of 3) that you want to add storage to.

LocalVolume CR local-storage-block-expand.yaml using OCS label as Node Selector and by-id device identifier:

apiVersion: local.storage.openshift.io/v1
kind: LocalVolume
metadata:
 name: local-block
 namespace: local-storage
spec:
 nodeSelector:
   nodeSelectorTerms:
   - matchExpressions:
       - key: cluster.ocs.openshift.io/openshift-storage
         operator: In
         values:
         - ""
 storageClassDevices:
   - storageClassName: localblock
     volumeMode: Block
     devicePaths:
       - /dev/disk/by-id/nvme-Amazon_EC2_NVMe_Instance_Storage_AWS10382E5D7441494EC   # <-- modify this line
       - /dev/disk/by-id/nvme-Amazon_EC2_NVMe_Instance_Storage_AWS60382E5D7441494EC   # <-- modify this line
       - /dev/disk/by-id/nvme-Amazon_EC2_NVMe_Instance_Storage_AWS1F45C01D7E84FE3E9   # <-- modify this line
       - /dev/disk/by-id/nvme-Amazon_EC2_NVMe_Instance_Storage_AWS6F45C01D7E84FE3E9   # <-- modify this line
       - /dev/disk/by-id/nvme-Amazon_EC2_NVMe_Instance_Storage_AWS136BC945B4ECB9AE4   # <-- modify this line
       - /dev/disk/by-id/nvme-Amazon_EC2_NVMe_Instance_Storage_AWS636BC945B4ECB9AE4   # <-- modify this line

You can see that in this CR new by-id devices have been added. Each device maps to nvme1n1 on one of three worker node.

  • nvme-Amazon_EC2_NVMe_Instance_Storage_AWS60382E5D7441494EC
  • nvme-Amazon_EC2_NVMe_Instance_Storage_AWS6F45C01D7E84FE3E9
  • nvme-Amazon_EC2_NVMe_Instance_Storage_AWS636BC945B4ECB9AE4

Create this LocalVolume CR using the following command:

oc apply -f local-storage-block-expand.yaml

Example output:

localvolume.local.storage.openshift.io/local-block configured

Now that the CR is created let’s see the results.

oc get pv | grep localblock

Example output:

local-pv-1d63db9e 1769Gi RWO Delete Available localblock 33s
local-pv-1eb9da0a 1769Gi RWO Delete Available localblock 25s
local-pv-31021a83 1769Gi RWO Delete Available localblock 48s
...

Now there are 3 more Available PVs to add to our StorageCluster. To do the expansion the only modification to the StorageCluster CR is to modify the count for storageDeviceSets from 1 to 2.

StorageCluster CR cluster-service-AWS-expand.yaml using gp2 and localblock storageclasses:

apiVersion: ocs.openshift.io/v1
kind: StorageCluster
metadata:
 name: ocs-storagecluster
 namespace: openshift-storage
spec:
 manageNodes: false
 monPVCTemplate:
   spec:
     accessModes:
     - ReadWriteOnce
     resources:
       requests:
         storage: 10Gi
     storageClassName: gp2
     volumeMode: Filesystem
 storageDeviceSets:
 - count: 2   # <-- modify count to 2
   dataPVCTemplate:
     spec:
       accessModes:
       - ReadWriteOnce
       resources:
         requests:
           storage: 1
       storageClassName: localblock
       volumeMode: Block
   name: ocs-deviceset
   placement: {}
   portable: false
   replica: 3
   resources: {}

Important: The storage size for storageDeviceSets must be less than or equal to the size of the raw block devices. Setting the value to 1 will guarantee that this requirement is met.

Create this StorageCluster CR using the YAML file above (cluster-service-AWS-expand.yaml).

oc create -f cluster-service-AWS-expand.yaml

Example output:

storagecluster.ocs.openshift.io/ocs-storagecluster configured

You should now have 3 more OSD Pods (osd-3, osd-4 and osd-5) and 3 more osd-prepare Pods.

oc get pods -n openshift-storage | grep 'ceph-osd'

Example output:

...
rook-ceph-osd-3-568d8797b6-j5xqx                                  1/1     Running     0          14m
rook-ceph-osd-4-cc4747fdf-5glgl                                   1/1     Running     0          14m
rook-ceph-osd-5-94c46bbcc-tb7pw                                   1/1     Running     0          14m
...
rook-ceph-osd-prepare-ocs-deviceset-0-1-mcmlv-qmn4r               0/1     Completed   0          14m
rook-ceph-osd-prepare-ocs-deviceset-1-1-tjh2d-fl5zc               0/1     Completed   0          14m
rook-ceph-osd-prepare-ocs-deviceset-2-1-nqlkg-x9wdn               0/1     Completed   0          14m

Reference Validating OCS Storage Cluster Deployment section for how to validate your updated StorageCluster deployment.

Using the Rook-Ceph toolbox to Validate Ceph backing storage

Starting with OpenShift Container Storage 4.3 the deployment of a toolbox can be created by modifying the CustomResource OCSInitialization.

Note: The Rook-Ceph toolbox is an unsupported capability and should only be used for cluster health status and troubleshooting.

You can either patch the OCSInitialization ocsinit using the following command line:

oc patch OCSInitialization ocsinit -n openshift-storage --type json --patch '[{ "op": "replace", "path": "/spec/enableCephTools", "value": true }]'

Or you can edit the OCSInitialization ocsinit to toggle the enableCephTools parameter to true using the following command line:

oc edit OCSInitialization ocsinit

The spec item must be set to the following value:

spec:
 enableCephTools: true

Important: Toggling the value from true to false will terminate any running toolbox pod immediately.

After the rook-ceph-tools Pod is Running you can access the toolbox like this:

TOOLS_POD=$(oc get pods -n openshift-storage -l app=rook-ceph-tools -o name)
oc rsh -n openshift-storage $TOOLS_POD

Once inside the toolbox, try out the following Ceph commands to see the status of Ceph, the total number of OSDs (example below shows six after expanding storage), and the total amount of storage available in the cluster.

ceph status

ceph osd status

ceph osd tree

Example output:

sh-4.2# ceph status
 cluster:
   id:     fb084de5-e7c8-47f4-9c45-e57953fc44fd
   health: HEALTH_OK

  services:
   mon: 3 daemons, quorum a,b,c (age 23m)
   mgr: a(active, since 42m)
   mds: ocs-storagecluster-cephfilesystem:1 {0=ocs-storagecluster-cephfilesystem-b=up:active} 1 up:standby-replay
   osd: 6 osds: 6 up (since 22m), 6 in (since 22m)

  data:
   pools:   3 pools, 136 pgs
   objects: 95 objects, 94 MiB
   usage:   6.1 GiB used, 10 TiB / 10 TiB avail
   pgs:     136 active+clean

  io:
   client:   853 B/s rd, 25 KiB/s wr, 1 op/s rd, 3 op/s wr

You can exit the toolbox by either pressing Ctrl+D or by executing

exit

Additional Resources

OpenShift Container Storage: openshift.com/storage

OpenShift | Storage YouTube Playlist

OpenShift Commons ‘All Things Data’ YouTube Playlist

Feedback

To find out more about OpenShift Container Storage or to take a test drive, visit https://www.openshift.com/products/container-storage/.

If you would like to learn more about what the OpenShift Container Storage team is up to or provide feedback on any of the new 4.3 features, take this brief 3-minute survey.
