 Gateway Arch National Park in St. Louis, MO, 2018 (C. Holman)

What is Gateway API?

Gateway API (GWAPI) is an open source, community managed, Kubernetes service-networking mechanism, and has been adopted as the future service-networking API in implementations by a wide variety of vendors.  It has been slated as an eventual replacement for OpenShift Ingress Routing, and is offered as a Developer Preview feature in OpenShift 4.12.

OpenShift has had a cluster ingress solution since its first release, in order to support self-service of cluster ingress by developers and namespace administrators.  Kubernetes later added the Ingress API specification, with many backing implementations (including OpenShift).  However, the Ingress API left a lot to be specified by the implementation, making it difficult to develop portable Ingress objects across implementations.  To address this, the Ingress v2 working group was started, and Red Hat has been involved throughout.  This group evolved into what is today the Kubernetes Gateway API working group, which continues to garner robust community support.

Gateway API Resources

The basic building blocks of the Gateway API are resources called HTTPRoute, Gateway, and GatewayClass.

Resource Definition Relationships
HTTPRoute Specifies rules for mapping requests from a Gateway to Kubernetes Services, especially for multiplexing HTTP or terminated HTTPS connections. References Gateway/s
Gateway Describes how traffic can be translated to Services within the cluster, e.g. a specific load balancer config. Implements GatewayClass
GatewayClass Defines a set of Gateways that share a common configuration and behavior. --

Shown below is an example of a HTTPRoute named my-route that is configured to attach only to the gateway named example-gateway in the namespace example-ns1, and will not attach to any other Gateways. Note that parentRefs refer to the gateway and backendRefs refer to service endpoints.

apiVersion: gateway.networking.k8s.io/v1beta1
kind: HTTPRoute
metadata:
name: my-route
namespace: example-ns2
spec:
parentRefs:
- kind: Gateway
name: example-gateway
namespace: example-ns1
rules:
- backendRefs:
- name: example-service
port: 8080

The next example shows the Gateway example-gateway, configured to allow the my-route HTTPRoute to attach. Note the reference to gatewayClassName.

apiVersion: gateway.networking.k8s.io/v1beta1
kind: Gateway
metadata:
name: example-gateway
namespace: example-ns1
spec:
gatewayClassName: example-lb
listeners:
- name: prod-web
port: 80
protocol: HTTP
allowedRoutes:
kinds:
- kind: HTTPRoute
namespaces:
from: Selector
selector:
matchLabels:
# This label is added automatically as of K8s 1.22
# to all namespaces
kubernetes.io/metadata.name: example-ns2

Finally, the example GatewayClass, example-lb:

apiVersion: gateway.networking.k8s.io/v1beta1
kind: GatewayClass
metadata:
name: example-lb
spec:
controllerName: "example.net/gateway-controller"
parametersRef:
group: example.net/v1beta1
kind: Config
name: internet-gateway-config
---
apiVersion: example.net/v1alpha1
kind: Config
metadata:
name: internet-gateway-config
spec:
ip-address-pool: internet-vips
...

For more information on these resources, see an expanded discussion in the Gateway API specification.

Istio Ingress Gateway

OpenShift Networking will support Gateway API using Istio Ingress Gateway. The Istio implementation has been chosen by OpenShift as an exemplary Gateway API implementation, with its legacy of thought leadership and its vibrant community. Istio Ingress Gateway is only one facet of what Istio Service Mesh offers in the well-established OpenShift Service Mesh (OSSM) product line. Having a tie to OSSM yields a healthy outlook, consistent experience for users, and smoother integration for customers who also want to use service mesh as a part of their service-networking configuration.

Why use Gateway API?

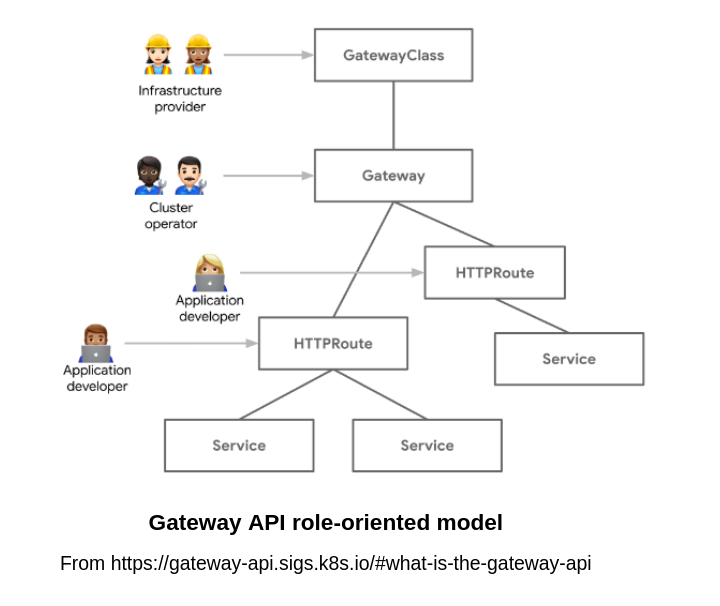

Gateway API is focused on creating a well-designed, community-supported, and portable API. It has been reviewed and implemented by a large community, including several vendors, proving that the API portability has significant appeal, enhances third-party integration, and reduces vendor lock-in. Gateway API design is expressive, incorporating a native feature framework that replaces the use of custom annotations in Ingress. At the same time, the design supports extensibility and the future of features through granular customization levels. To simplify operations, Gateway API design focuses on role-oriented API resources, allowing for role-based access to just-enough Kubernetes details to satisfy and empower each organizational role. Besides simplifying operations, role-oriented resource access reduces costs by enabling the safe sharing of infrastructure without requiring shared control.

The key reason to use Gateway API with OpenShift Networking is that it enables the installation and use of multiple third-party Gateway API implementations on the same cluster. This allows infrastructure providers to offer a range of gateway implementations for the benefit of cluster operators and application developers. Also, as the standard implementations converge, the same Gateway API compliant configuration can be used for two different implementations on the same cluster.

Features offered in Dev Preview

In the Developer Preview we have chosen to provide the current version of Gateway API, 0.5.1, and the Istio release (1.15.1) that incorporates it. This release includes the following features:

Feature Definition
Path-based routing Routes with different paths can have different destinations.
Weighted backends for traffic splitting Traffic Splitting via weight configuration placed on backends, e.g. split 50% on each of two backends.
Wildcard subdomain Host names may be prefixed with a wildcard label (*.), which is interpreted as a suffix match.
Comprehensive route status Status overview and route conditions provide status and troubleshooting information on routes.
Proxy logs oc logs frontend-POD-ID -c istio-proxy
Gateway logs oc logs gatewayname-POD-ID
Istiod logs oc logs istiod-POD-ID
Application logs oc logs app-name-POD-ID
Troubleshooting Istio provides good troubleshooting documentation on traffic management and configuration validation. Istio Service Mesh workshop shows a list of istioctl commands that help. Envoy also provides debugging tips.

Getting Started

Instructions for getting started with Gateway API

Getting Creative

Instructions for more advanced capabilities using Gateway API

Conclusion

We hope you’ve enjoyed learning about Gateway API with OpenShift Networking. If you have questions or feedback about the Gateway API with OpenShift Networking Developer Preview, please drop us a line in the blog post Issues section.
